Description
This 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.
-
ASM1062 to Deliver 10-Port SATA 6Gbps Performance
Featuring the ASM1062 controller, this SATA card enables the connection of 10 high-performance SATA 6Gbps drives with a combined total throughput of up to 10Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately). -
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7,8,10), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately). To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance. -
Hassle-Free Installation

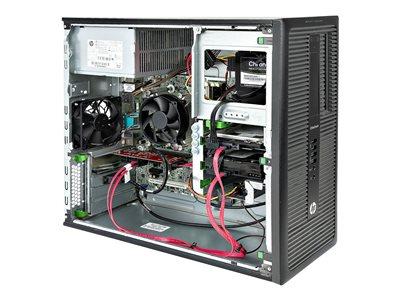

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft) , RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building. 10P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
Specifications
Summary
- Product Description
- StarTech.com SATA PCIe Card, 10 Port PCIe SATA Expansion card, 6Gbps SATA Card, Low/Full Profile, Stacked SATA Connectors, ASM1062 Non-Raid SATA Controller Card / Adapter - PCI Express to SATA Converter - storage controller - SATA 6Gb/s - PCIe 2.0 x2
- Device Type
- Storage controller - plug-in card - low profile
- Bus Type
- PCIe 2.0 x2
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 6 Gbit/s
- Supported Devices
- Hard drive, solid state drive
- System Requirements
- Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS X 10.10 - 12, Apple macOS 13.0, Linux 2.6.32 or later
- Dimensions (WxDxH)
- 1.6 cm x 5.4 cm x 13.9 cm
- Weight
- 75 g
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Storage controller - plug-in card - low profile
- Host Bus
- PCIe 2.0 x2
Storage Controller
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 6 Gbit/s
- Supported Devices
- Hard drive, solid state drive
- Processor
- ASMedia ASM1062
Expansion / Connectivity
- Interfaces
- 10 x SATA 6Gb/s - SATA (internal)
Miscellaneous
- Included Accessories
- Low-profile bracket
- Features
- Support port multiplier, S.M.A.R.T. support, TRIM support, 4Kn drive compatible, bootable, ATAPI support
- Compliant Standards
- Plug and Play, RoHS
Software / System Requirements
- OS Required
- Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS X 10.10 - 12, Apple macOS 13.0, Linux 2.6.32 or later
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Dimensions & Weight
- Width
- 1.6 cm
- Depth
- 5.4 cm
- Height
- 13.9 cm
- Weight
- 75 g
Dimensions & Weight (Shipping)
- Shipping Width
- 14.2 cm
- Shipping Depth
- 17 cm
- Shipping Height
- 3 cm
- Shipping Weight
- 120 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 85 °C
- Humidity Range Operating
- 20 - 80%
