Description

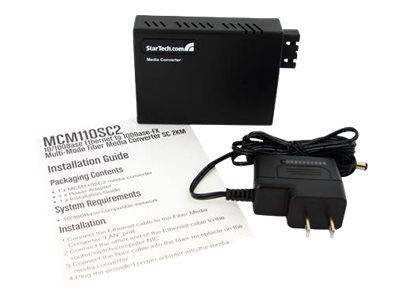

Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber.
The MCM110SC2GB 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile GbE Ethernet to Fiber converter is compatible with most 3COM, Cisco, Lucent and Nortel networks and fully complies with applicable IEEE 802.3 standards.
Specifications
Summary
- Product Description
- StarTech.com 10/100 Ethernet to Multi Mode Fiber Media Converter SC 2 km - fibre media converter - 10Mb LAN, 100Mb LAN
- Device Type
- Fibre media converter - RJ-45 / SC multi-mode
- Form Factor
- External
- Localisation
- United Kingdom
- Cabling Type
- 10Base-T, 100Base-FX, 100Base-TX
- Data Transfer Rate
- 100 Mbps
- Optical Wave Length
- 1310 nm
- Data Link Protocol
- 10Mb LAN, 100Mb LAN
- Max Transfer Distance
- 2 km
- Power
- AC 230V
- Dimensions (WxDxH)
- 7.3 cm x 9.7 cm x 2.3 cm
- Weight
- 90 g
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Fibre media converter
- Form Factor
- External
- Colour
- Black
- Localisation
- United Kingdom
Networking
- Connectivity Technology
- Wired
- Cabling Type
- 10Base-T, 100Base-FX, 100Base-TX
- Data Link Protocol
- 10Mb LAN, 100Mb LAN
- Data Transfer Rate
- 100 Mbps
- Optical Wave Length
- 1310 nm
- Max Transfer Distance
- 2 km
- Status Indicators
- Port transmission speed, port duplex mode, power, link/activity
- Features
- Flow control, MDI/MDI-X switch, auto-negotiation, half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), Jumbo Frames support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q
Expansion / Connectivity
- Interfaces
- 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female , 1 x Ethernet 100Base-FX - SC multi-mode female x 2
Miscellaneous
- Compliant Standards
- FCC, RoHS
Power
- Power Device
- External power adapter
- Voltage Required
- AC 230V
Dimensions & Weight
- Width
- 7.3 cm
- Depth
- 9.7 cm
- Height
- 2.3 cm
- Weight
- 90 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 0 - 90%
