Description
Upgrade your server or workstation to 10G networking over copper, by adding a 10GBase-T / NBASE-T RJ45 port. Here's a powerful and cost-effective solution for upgrading your server or workstation to 10 Gigabit Ethernet networking over copper. This PCI Express 10G NIC lets you add an Ethernet port to your server or desktop computer and access your network at multiple speeds: 10G, 5G, 2.5G 1G and 100Mbps.
This 10G network card utilizes the Intel X550-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections. Compliant with IEEE 802.3u/ab/an standards, the 1-port 10G card delivers a dependable way to upgrade or replace your existing network port, providing throughput capability of up to 10Gbps in each direction (20Gbps total). It connects easily through a single, four-lane (x4 or higher) PCI Express slot.
The Intel X550-AT chipset provides many advanced features including Intel Virtualization Technology for connectivity and PXE network boot support. The Intel chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation. It also lets you take advantage of advanced features such as VLAN tagging, up to 15K jumbo frame support, Wake-on-LAN and Auto MDIX.
This five-speed NIC provides a cost-effective and versatile networking solution, by giving you the additional bandwidth your network needs without having to overhaul your infrastructure wiring. It lets you add an Ethernet port which can be accessed at multiple speeds 10G, 5G, 2.5G 1G and 100Mbps. Compatible with a broad range of operating systems, the 10G NIC is fully compliant with 10GBase-T and NBASE-T specifications. (10G network speeds require Cat6a cable. All other speeds require Cat5e cable.)
The PCIe 10G network card features advanced NBASE-T technology, supporting the latest multigigabit equipment, including new Cisco campus switches and Aruba Networks access points. The card enables you to connect to NBASE-T based equipment (with Linux only) at network speeds of 2.5Gbps or 5Gbps, over your existing Cat5e infrastructure, without having to upgrade to more expensive Cat6a. The Ethernet network card also supports the more common 10G over copper, and 1G network connections using existing Cat 6/Cat5e or better cabling.

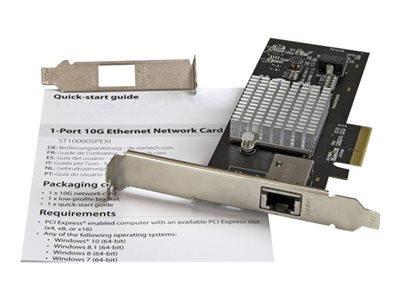

With its dual-profile design, the network card is easy to install into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.
Specifications
Summary
- Product Description
- StarTech.com 1 Port 10G PCIe Network Card - 10GBase-T / NBASE-T - RJ45 Port - Intel X550 Chipset - Ethernet Card - Network Adapter - Intel NIC Card (ST10000SPEXI) - network adapter - PCIe 2.0 - 10Gb Ethernet x 1
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 2.0
- Ports
- 10Gb Ethernet x 1
- Dimensions (WxDxH)
- 6.85 cm x 15.25 cm x 12.1 cm
- Weight
- 101.8 g
- Cabling Type
- Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T
- Data Link Protocol
- 100Mb LAN, 1GbE, 10GbE
- Data Transfer Rate
- 10 Gbps
- Performance
- Bandwidth (full duplex): 20 Gbps
- Capacity
- Jumbo frame size: 9000
- Processor
- Intel X550-AT
- Compliant Standards
- IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an
- Colour
- Black
- System Requirements
- Microsoft Windows Server 2008 R2 x64 Edition, VMware ESXi 5.1, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, VMware ESXi 5.5, Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), VMware ESXi 6.0, Microsoft Windows Server 2016 (64-bit), Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 (64-bit)
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, TB31PCIEX16
Detailed Specification
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 2.0
Networking
- Ports
- 10Gb Ethernet x 1
- Connectivity Technology
- Wired
- Cabling Type
- Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T
- Data Link Protocol
- Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
- Data Transfer Rate
- 10 Gbps
- Performance
- Bandwidth (full duplex): 20 Gbps
- Capacity
- Jumbo frame size: 9000
- Features
- Flow control, full duplex mode, Jumbo Frames support, PXE support, tagged VLAN
- Compliant Standards
- IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an
Processor / Memory
- Processor
- Intel X550-AT
Expansion / Connectivity
- Interfaces
- 1 x 10GBase-T - RJ-45
Miscellaneous
- Included Accessories
- Low-profile bracket
- Compliant Standards
- FCC, RoHS
- Colour
- Black
Software / System Requirements
- Software Included
- Drivers & Utilities
- OS Required
- Microsoft Windows Server 2008 R2 x64 Edition, VMware ESXi 5.1, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, VMware ESXi 5.5, Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), VMware ESXi 6.0, Microsoft Windows Server 2016 (64-bit), Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 (64-bit)
Dimensions & Weight
- Width
- 6.85 cm
- Depth
- 15.25 cm
- Height
- 12.1 cm
- Weight
- 101.8 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 20 - 80%
Compatibility Information
- Designed For
- P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, TB31PCIEX16
