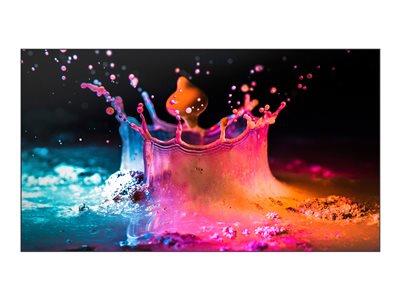

Samsung UD46E-B 46" 1920x1080 VGA DVI HDMI LED Large Format Display

Samsung UD46E-B 46" 1920x1080 VGA DVI HDMI LED Large Format Display

Review this product
Quicklinx: BWY9WS00 Mfr#: LH46UDEBLBB/EN
Video Interface: HDMI
TV Tuner Presence: No
  • 1080p
Ordered upon request
£1,730.54 ex VAT
£2,076.64 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

  • Bring your audience a superior picture
  • Elevate messaging quality through incredible clarity
  • Use a single platform for content creation and management
  • Maintain consistent performance in varying environments
  • Achieve ultimate picture quality through advanced factory calibration

    Any irregularity in a video wall's brightness and color accuracy across displays can negatively impact the viewing experience. To eliminate these types of color expression gaps and maintain a fully-aligned, consistent and captivating presentation, Samsung's UDE-B series video walls feature advanced factory tuning, innovative hardware and exceptional user calibration tools. Samsung's multi-step factory calibration process tunes video wall displays to the highest-performing uniform brightness and color across each display out-of-the-box. After calibration, these displays offer an industry-leading local uniformity of more than 90 percent across 25 (5x5) areas of each display screen, resulting in uniform color expression across the entire display. The calibration process also enables the displays to offer a superior white balance difference of less than 300 degrees K. In addition to rigorous factory calibration, users can manage brightness and color uniformity conveniently with Samsung Color Expert, a powerful free software program. Through these advanced color management solutions, the UDE Series video walls enable large-scale presentations to feature superior uniformity, consistency and performance for the ultimate in color expression.
  • Captivate audiences through a narrow bezel and optimized panel design

    The enhanced panel quality of Samsung's UDE-B video wall elevates visual messaging and content through a seamless image and superior clarity. Featuring an ultra-narrow 3.5 mm bezel-to-bezel design format (2.3 mm bezel on the left and top sides and 1.2 mm bezel on the right and bottom sides), which is the slimmest bezel in the video wall industry, the display creates a virtually uninterrupted viewing experience to keep audiences focused on content rather than the display itself. When exposed to a range of environmental conditions, video wall panels can run the risk of losing image quality due to distortion and irregular color presentation. To provide consistent display clarity uninterrupted message delivery in any operational environment, Samsung's UDE-B video wall panels undergo rigorous performance testing. Each display features a reinforced panel that deters heat, weather and other stress-inducing conditions. As a result, Samsung's superior panel prevents screen darkening, light leakage or any related deterioration in picture quality. Plus, an anti-glare panel to ensure messages reach relevant audiences with minimal distraction by light reflection - All these enhanced panel quality allows the long term delivery of brilliant contents and the ultimate viewing experience
  • Achieve UHD picture quality without additional devices through industry-leading technology

    With an increase in screen size, content resolution becomes even more important to deliver impactful content. As the industry's first video walls to feature integrated DisplayPort (DP) 1.2 and HDMI ports, Samsung's UDE-B Series video walls, UDE-B, can display Ultra-High Definition (UHD) contents across video wall configurations as large as 5 x 5 without the purchase of additional expensive devices. In comparison to conventional video walls that typically require added equipment and only accommodate up to a 2 x 2 arrangement, the UDE-B Series' UHD presentation represents a sharp improvement. By supporting High-Bandwidth Content Protection (HDCP) daisy chains, the UDE-B Series video walls also can display UHD content, such as live TV or Blu-Ray discs, without having to purchase additional equipment, minimizing the cost of deploying multiple displays as part of large-scale promotional signage or informational presentations.
  • High-performing display readability and durability for your business environment

    Samsung's UDE-B Series video walls deliver a continuously immersive and engaging viewing experience through high-performing readability and durability. Designed for 24/7 continuous operation in challenging environments, the UDE-B Series video walls operate at the speed of your business without losing performance or display quality. The displays offer 500 nit brightness to broadcast vivid, highly legible images and visual messaging in various lighting conditions. The combination of these embedded design benefits makes the UDE-B Series video walls ideal for content and information delivery in usage environments that require enhanced readability, such as transportation terminals, shopping malls, office lobbies and control rooms.

Specifications

Summary

Product Description
Samsung UD46E-B 46" LED-backlit LCD display - Full HD - for digital signage
Product Type
LED-backlit LCD flat panel display
Diagonal Class
46"
Commercial Use
Yes - digital signage
Resolution
1920 x 1080
Display Format
1080p
Max Number of Screens
225
Video Interface
HDMI
HDMI Ports Qty
2 ports
PC Interface
DVI, VGA (HD-15), DisplayPort
HDCP Compatible
Yes
LCD Backlight Technology
LED backlight
TV Tuner
No tuner
Included Accessories
Remote control, batteries
Voltage
AC 120/230 V (50/60 Hz)
Energy Class
Class G
Power Consumption Operational
143 Watt
Power Consumption (On mode)
144 W
Power Consumption Stand by
0.5 Watt
Energy Consumption per Year
175 kWh
Dimensions (WxDxH) - without stand
102.21 cm x 9.74 cm x 57.66 cm
Weight
18 kg
Environmental Standards
ENERGY STAR Qualified


Detailed Specification

General

Product Type
LED-backlit LCD flat panel display
Energy Class
Class G
Power Consumption Operational
143 Watt
Power Consumption (On mode)
144 W
Power Consumption SDR (On mode)
144 kWh/1000h
Energy Consumption per Year
175 kWh
Diagonal Class
46"
Commercial Use
Yes - digital signage
TV Tuner
No tuner
TV Tuner Presence
No
Sensors
Temperature sensor
Video Interface
HDMI
HDMI Ports Qty
2 ports
PC Interface
DVI, VGA (HD-15), DisplayPort
HDCP Compatible
Yes
Dimensions
Without stand
Width
102.21 cm
Depth
9.74 cm
Height
57.66 cm
Weight
18 kg

Display

Resolution
1920 x 1080
Display Format
1080p
LCD Backlight Technology
LED backlight
Colour Depth
16.7 million colours
Image Contrast Ratio
3500:1
Dynamic Contrast Ratio
10000:1
Brightness
500 cd/m²
Viewing Angle
178 degrees
Viewing Angle (Vertical)
178 degrees
Pixel Pitch
0.53025 x 0.53025mm
Response Time
8 ms
Features
10 x10 Daisy-Chain support

Video Wall

Max Number of Screens
225

Stands & Mounts

Flat Panel Mount Interface
600 x 400 mm

Remote Control

Type
Remote control

Connections

Connector Type
VGA input , DVI-D input , 2 x HDMI input , DisplayPort input , DisplayPort output , Audio line-in , Serial , Audio line-out , Remote control

Miscellaneous

Included Accessories
Batteries
Cables Included
DisplayPort cable
Compliant Standards
CSA, UL, TUV, C-Tick, GOST, EN55022, NEMKO, NOM, PCBC, SASO, EN55024, CCC, PSB, AS/NZS 3548, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, BSMI CNS 13438, FCC Part 15 B Class A, VCCI V-3, GB 9254-2008, GB 17625.1-2003 EMC, KN22, KN24, K60950-1, CAN/CSA-C22.2 No. 60950-1

Sustainability Information

ENERGY STAR Certified
Yes
ENERGY STAR Version
6.0

Power

Power Device
Power supply
Input Voltage
AC 120/230 V (50/60 Hz)
Power Consumption Stand by
0.5 Watt
Power Consumption Sleep
0.5 Watt

Dimensions & Weight (Shipping)

Width (Shipping)
116 cm
Depth (Shipping)
28 cm
Height (Shipping)
71.5 cm
Weight (Shipping)
22.4 kg

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 80%
