Description

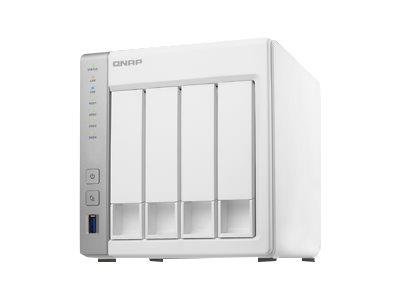

The TS-431 is a powerful yet easy-to-use network storage center for backup, synchronization, remote access, and home entertainment. With the Notes Station, you can easily create digital notes on your private cloud and share with friends and colleagues at no extra cost. Powered by an advanced ARM Cortex dual-core processor, the TS-431 delivers incredible performance as a home NAS with three USB 3.0, one eSATA, and dual LAN ports. See how TS-431 can enhance your digital lifestyle.
-
Powerful processor delivers high performance
Equipped with a powerful processor and improved memory, the TS-431P is a high-performance NAS for home, workgroups and SOHO users, providing outstanding performance of high read write throughput. The TS-431P's enhanced hardware-based encryption and decryption engine provides fast transfer speeds with AES 256-bit full NAS volume encryption, boosting system performance and security while ensuring the safety of sensitive personal data stored in the NAS. When used with a compatible USB Wi-Fi adapter, the TS-431P becomes an ideal media center with remarkably high speeds for transferring a large amount of files and streaming bandwidth-intensive multimedia. -
High efficiency with dual LAN support
The TS-431P supports multiple port-trunking modes, enabling administrators to set up link aggregation to increase total data transmission potential. Failover and dual IP are also supported to ensure continuous system operations. -
Enhance productivity with multiple USB 3.0 ports
Equipped with three SuperSpeed USB 3.0 ports, the TS-431P allows you to flexibly arrange tasks with a wide range of external devices without interrupting your current workflow. You can back up files to USB drives, access data stored on SD cards via USB card readers, share up to 3 printers via network, and connect to a UPS to ensure a continual power supply. -
QTS - simple and efficient
Thanks to the intuitive user interface of QTS, your NAS experience is smarter, smoother and spectacular. Its modern flat design streamlines loading times, and the intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater working efficiency. QTS breaks the barriers of devices, platforms and geography to bring optimized cloud experiences to you. -
Create digital notes on your private cloud
The revamped Notes Station features an optimized interface for a smoother user experience. Notes Station allows users to collectively write documents and helps users to track changes by retaining the revision history of documents. Notes Station provides useful image-editing tools, helping you create well-designed documents. You can also create sharing links to share documents in real time. Documents can also be encrypted to prevent unauthorized access, and snapshot backup is provided to retain different versions of documents from different time periods. With its importing/exporting and full-site backup functions, Notes Station supports backing up your documents to local or remote QNAP NAS.
Specifications
Summary
- Product Description
- QNAP TS-431P - NAS server
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet
- Installed Devices / Modules Qty
- 0 (installed) / 4 (max)
- Dimensions (WxDxH)
- 16 cm x 21.9 cm x 16.9 cm
- Weight
- 3 kg ()
- Processor
- 1 x Annapurna Labs Alpine AL-212 1.7 GHz (Dual-Core)
- Storage Controller
- RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare
- Networking
- 10Mb LAN, 100Mb LAN, 1GbE
- RAM
- 1 GB
- Power
- AC 120/230 V
- Storage Operating System
- QNAP QTS 4.2
- System Requirements
- UNIX, Linux, Apple MacOS X, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2012, Windows 8 (32/64 bits), Microsoft Windows Server 2012 R2
Detailed Specification
General
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet
- Total Storage Capacity
- 0 GB
- Installed Devices / Modules Qty
- 0 (installed) / 4 (max)
- Width
- 16 cm
- Depth
- 21.9 cm
- Height
- 16.9 cm
- Weight
- 3 kg ()
- Built-in Devices
- Led panel
Processor / Memory
- Processors Installed
- 1 x Annapurna Labs Alpine AL-212 1.7 GHz
- Number of Cores
- Dual-Core
- Max Supported Qty
- 1
- RAM
- 1 GB DDR3
- Flash Memory Installed
- 512 MB
Storage Controller
- Type
- RAID
- Interface Type
- SATA 6Gb/s
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 10 hot spare
Networking
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE
- Network / Transport Protocol
- TCP/IP, PPTP, L2TP, IPSec, iSCSI, SMTP, FTP, DHCP, Bonjour, SMB, DDNS
- Remote Management Protocol
- SNMP, Telnet, HTTP, HTTPS, SSH
- Network Services Compatibility
- Microsoft Active Directory (AD), Apple Bonjour Protocol, File Level Security (ACLs), DDNS, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV)
- Features
- VPN support, LDAP support, wake on LAN (WOL), Syslog support, print server, IPv6 support, proxy server, backup server, Trivial File Transfer Protocol (TFTP) support, iTunes server, Jumbo Frames support, DHCP server, FTP server, UPnP Media Server, IPv4 support, surveillance station, DLNA Media Server, Apple Time Machine compatible, DHCP client, cloud backup, VPN Server, Apple AirPlay
- Encryption Algorithm
- SSL, TLS, 256-bit AES
- Compliant Standards
- DLNA CERTIFIED, UPnP
Expansion / Connectivity
- Expansion Bays
- 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5"
- Interfaces
- 2 x Ethernet 1000Base-T - RJ-45 , 3 x USB 3.0 - Type A
Miscellaneous
- Cables Included
- 2 x network cable
- Features
- Security lock slot (cable lock sold separately), built-in cooling fan, hardware encryption
- Security Slot Type
- Kensington security slot
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V
- Power Provided
- 90 Watt
Software / System Requirements
- Storage Operating System
- QNAP QTS 4.2
- OS Required
- UNIX, Linux, Apple MacOS X, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2012, Windows 8 (32/64 bits), Microsoft Windows Server 2012 R2
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
