Description

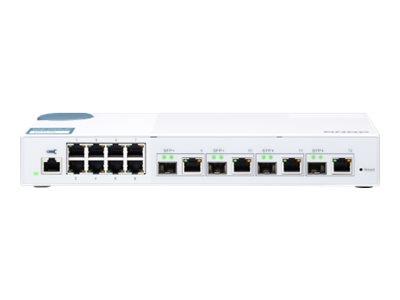

The QSW-M408 is a switch equipped with four 10GbE SFP+ ports and eight Gigabit ports. Supporting layer 2 switching and network management via user-friendly web user interface, the QSW-M408 offers flexible deployment in a hybrid high-speed network infrastructure and an entry-level network management solution for even non-IT professionals.
-
Flexible deployment
The QSW-M408 provides four 10GbE SFP+ ports and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. -
Intuitive web GUI
The QSW-M408 uses the QNAP QSS, which features an easy-to-use web GUI with value-added functions to simplify network set up and management. -
Sleek design
Use the at-a-glance major functions, flat control layers and one-click login to simplify set up and management. -
Value-added functions
With the setting guide, status chart reference, online firmware update, the learning and management costs are greatly reduced. -
Optimize network performance with bandwidth and packet control
The QSW-M408 provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP snooping) for boosting network performance through IP grouping and bandwidth management. -
Faster speeds using existing cables
The QSW-M408 is compatible with 10GbE and NBASE-T technologies to support up to five speeds. The combo ports provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer. -
Desktop size for easy use in offices
With a compact and modern design, the QSW-M408 fits perfectly alongside other devices in modern digital offices. Featuring a delicate design, the QSW-M408 helps users to easily identify each port.
Specifications
Summary
- Product Description
- QNAP QSW-M408-4C - switch - 12 ports - Managed
- Device Type
- Switch - 12 ports - Managed
- Subtype
- 10 Gigabit Ethernet
- Ports
- 8 x 10/100/1000 + 4 x combo 10 Gigabit SFP+
- Performance
- Switching capacity: 96 Gbps , Non-blocking switching throughput: 48 Gbps
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- RSTP
- Features
- IPv4 support, LACP support, LLDP support, Energy Efficient Ethernet, VLAN management, port-based VLAN, web-based management
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz
- Power
- AC 120/230 V (50 - 60 Hz)
- Dimensions (WxDxH)
- 29 cm x 12.7 cm x 4.25 cm
- Weight
- 1.15 kg
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Switch - 12 ports - Managed
- Enclosure Type
- Desktop
- Subtype
- 10 Gigabit Ethernet
- Ports
- 8 x 10/100/1000 + 4 x combo 10 Gigabit SFP+
- Performance
- Switching capacity: 96 Gbps , Non-blocking switching throughput: 48 Gbps
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- RSTP
- Features
- IPv4 support, LACP support, LLDP support, Energy Efficient Ethernet, VLAN management, port-based VLAN, web-based management
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz
- Status Indicators
- Port transmission speed, power, status, link/activity
Expansion / Connectivity
- Interfaces
- 4 x 10GBase-X RJ-45/SFP+ , 8 x 1000Base-T RJ-45
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
- Power Consumption Operational
- 31.46 Watt
Miscellaneous
- Included Accessories
- Power cord
Dimensions & Weight
- Width
- 29 cm
- Depth
- 12.7 cm
- Height
- 4.25 cm
- Weight
- 1.15 kg
Dimensions & Weight (Shipping)
- Shipping Weight
- 1.57 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
