Description

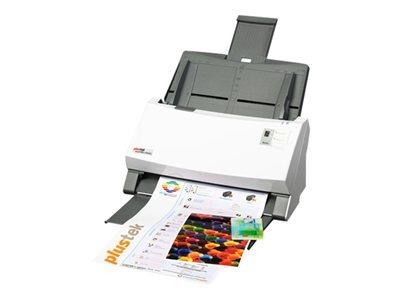

The Plustek SmartOffice PS 456U is a 80-page per minute, duplex color document scanner that is not only fast, it's reliable and cost effective. Ultrasonic misfeed detection ensures all of your critical documents are imaged correctly. Robust paper handling, advanced image processing and a high daily duty cycle all add up to the perfect departmental scanning solution for document management, content management and forms processing applications.
-
Exceptional document handling
The SmartOffice PS456U features one of the most advanced document feeding and separation system in the industry. This system allows the SmartOffice PS456U to scan mixed batches of varying paper sizes and weights. No more wasted time sorting documents based on their size or thickness. Plastic and rigid cards such as ID cards, drivers licenses, membership cards, insurance cards and even log documents up to 98" are scanned without additional adjustments or additional set up. -
Exceptional productivity
Create searchable PDFs at the touch of a button. Single touch scanning allows you to define 9 different scanning functions that can all be accessed by simply pressing a button. In addition to searchable PDF, you can transform your paper documents into editable Microsoft Office document formats or common image formats such as JPG and TIFF. Industry standard TWAIN, ISIS and WIA drivers ensure compatibility with thousands of image enabled applications. -
Exceptional reliability
The 100-sheet feed tray along with a daily duty cycle of 6000 pages means that the SmartOffice PS456U is a scanner that is designed to scan documents every day, all day long. -
Intelligent misfeed function
The ultrasonic sensor detects the double feeding of original documents during scanning. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This design prevents double feeding and effectively scans documents of different weights or thickness. Thanks to double-feed prevention, optimum reliability is assured even when scanning high volumes of documents. -
Environmentally responsible and energy-saving
The SmartOffice PS456U is environmentally responsible and easy to use at the same time thanks to its ENERY STAR certification, low power LED illumination technology and power-saving function. The SmartOffice PS456U also features auto wake up that enables users to simply place the paper in the scanner and wake up the scanner from sleep/stand-by mode.
Specifications
Summary
- Product Description
- Plustek SmartOffice PS456U - document scanner - desktop - USB 2.0
- Device Type
- Document scanner - desktop
- Interface Type
- USB 2.0
- Scanning Sensor Type
- Dual CCD
- Max Supported Document Size
- 244 x 356 mm
- Input Type
- Colour
- Optical Resolution
- 600 dpi x 600 dpi
- Max Document Scan Speed
- 80 ppm (mono) / 80 ppm (colour)
- Max Document Size
- 244 mm x 2530 mm
- Automatic Duplexing
- Yes
- Supported Document Type
- Plain paper, plastic card
- Document Feeder Type
- Automatic
- Document Storage Capacity
- 100 sheets
- Duty Cycle
- 6000 scans per day
- System Requirements
- Microsoft Windows 2000/XP/Vista/7, Windows 8
- Dimensions (WxDxH)
- 31.87 cm x 23.07 cm x 22.83 cm
- Weight
- 2.7 kg
- Environmental Standards
- ENERGY STAR Qualified
Detailed Specification
General
- Type
- Document scanner - desktop
- Interface Type
- USB 2.0
- Max Supported Document Size
- 244 x 356 mm
Scanner
- Input Type
- Colour
- Optical Resolution
- 600 dpi x 600 dpi
- Automatic Duplexing
- Yes
- Scanning Sensor Type
- Dual CCD
- Max Document Scan Speed B/W
- 80 ppm
- Max Document Scan Speed Colour
- 80 ppm
- Duty Cycle
- 6000 scans per day
- Scanner Speed Details
- 30 ppm - portrait (front) / colour (back) - A4 - 300 dpi , 60 ipm - portrait (front) / colour (back) - A4 - 300 dpi , 45 ppm - portrait (front) / colour (back) - A4 - 200 dpi , 90 ipm - portrait (front) / colour (back) - A4 - 200 dpi , 80 ppm - portrait (front) / greyscale (back) - A4 - 300 dpi , 160 ipm - portrait (front) / greyscale (back) - A4 - 300 dpi , 80 ppm - portrait (front) / black & white (back) - A4 - 300 dpi , 160 ipm - portrait (front) / black & white (back) - A4 - 300 dpi
- Scanner Features
- Ultrasonic Double Feed Detection
- Compliant Standards
- TWAIN, ISIS
Media Handling
- Max Document Size
- 244 mm x 2530 mm
- Supported Document Type
- Plain paper, plastic card
- Document Feeder Type
- Automatic
- Document Storage Capacity
- 100 sheets
Expansion / Connectivity
- Interfaces
- USB 2.0
Environmental Standards
- ENERGY STAR Certified
- Yes
Power
- Power Device
- External power adapter
Software / System Requirements
- Software Included
- Plustek DocAction, HotCard BizCard Finder 3.0, ABBYY FineReader 9.0 Sprint, Plustek DI Express 6
- OS Required
- Microsoft Windows 2000/XP/Vista/7, Windows 8
- System Requirements Details
- Pentium 4 - 2 GHz - RAM 1 GB - HD 800 MB
Dimensions & Weight
- Width
- 31.87 cm
- Depth
- 23.07 cm
- Height
- 22.83 cm
- Weight
- 2.7 kg
