Description
The DM series speakers deliver balanced, punchy bass sound and they can pump out extra power thanks to the Class D amplifier and 4-inch woofer in each unit. Flick the switch to change from DJ mode to Production mode and the DSP settings will automatically create a top sound for each application.
-
Advanced design for higher quality sound
Each DM series speaker produces pure, balanced bass sound thanks to a Class D amplifier with 96 kHz sampling DSP. Another advancement from the DM-40 model comes in the updated design of the DECO convex diffusers which help deliver crystal-clear high frequencies in every direction, so you can enjoy a wide sweet spot and 3D stereo sound wherever you are in the room. The woofer and tweeter are perfectly aligned so you'll hear all sound frequencies clearly. The grooves on the ducts reduce air friction so bass is tight and punchy, even if you position the speakers against a wall. Plus, the curved front edges provide maximum rigidity and minimum resonance for clean audio at any volume level. The 4-inch woofer creates powerful sound without distorting, even if you pump up the volume. -
2-way sound mode - optimized for DJing and music production
There's no need to decide whether you want a set of monitors that are made for DJing or making music, because the DM series speakers are perfect for both. Just flip the switch to choose either DJ mode or Production mode and the DSP settings will be optimized for the task, leaving you free to concentrate on your mix. -
Easy to use with different DJ or production equipment
With RCA and mini jack terminals, you can connect different kinds of gear such as DJ controllers and mixers, or the laptop or soundcard you use. Connecting your headphones is simple via the socket on the front panel and the level knob is right in front of you too.
Specifications
Summary
- Product Description

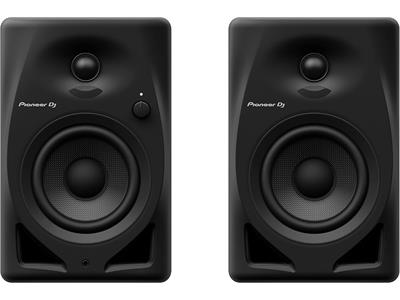

- Pioneer DJ DM-40D - monitor speakers
- Product Type
- Monitor speakers
- System Components
- 2 speakers
- Enclosure Design
- Bass reflex
- Speaker Type
- 2-way - active
- Amplifier Output Power
- 2 x 19W - D
- Amplifier
- Integrated
- Colour
- Black
- Power
- AC 110-240 V (50/60 Hz)
- Dimensions (WxDxH)
- 292 mm x 223 mm x 227 mm
- Weight
- 4.7 kg
- Manufacturer Warranty
- 1-year warranty
Detailed Specification
General
- Product Type
- Monitor speakers
- Enclosure Colour
- Black
- Enclosure Design
- Bass reflex
- Enclosure Material
- MDF
Speaker System
- System Components
- 2 speakers
- Speaker Type
- 2-way - active
- Amplifier Input Impedance
- 10 kOhm
- Amplifier
- Integrated
- Amplifier Class
- D
- Amplifier Output Power
- 2 x 19W
- Transmission Range
- 10 m
- Headphone Output Jack
- Yes
Speaker System Details
- Driver Details
- Speaker: woofer driver - 4" - fibreglass , Speaker: tweeter driver - 0.75" - Soft Dome
Connections
- Connector Type
- Audio line-in (mini-phone stereo 3.5 mm) , Audio line-in (RCA x 2) , Headphones (mini-phone stereo 3.5 mm)
Miscellaneous
- Included Accessories
- 3.5 mm to RCAx2 cable
Power
- Power Source
- Integrated power supply
- Voltage Required
- AC 110-240 V (50/60 Hz)
- Power Consumption Operational
- 25 Watt
Dimensions & Weight
- Width
- 292 mm
- Depth
- 223 mm
- Height
- 227 mm
- Weight
- 4.7 kg
- Dimensions (WxDxH) / Weight Details
- Left channel speaker: 14.6 cm x 22.3 cm x 22.7 cm / 2.5 kg , Right channel speaker: 14.6 cm x 21.2 cm x 22.7 cm / 2.2 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
