Description
Make it stand out with a faster Philips D-Line Professional display. With Philips superb picture quality and Android SOC more powerful than ever before, capable of delivering complex content to capture your audience's attention.
-
Powered by Android
Control your Philips professional display via an internet connection. The integrated Android OS (SoC) lets you install web and native Android apps directly to the display. A built-in scheduler makes it easy to launch apps and content based on time of day, or user. Auto orientation ensures your content displays properly. -
CMND & Control
Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100. -
CMND & Create
Take control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time. -
CMND & Deploy
Quickly install and launch any app-even when you're off-site and working remotely. CMND & Deploy lets you add and update your own apps, as well as apps from the Philips Professional Display App Store. Simply scan the QR code, log in to the store, and click on the app you want to install. The app is automatically downloaded and launched. -
Integrated mPCIe slot
Easily connect 4G/LTE modules to your Philips professional display. The integrated mPCIe slot enables your display to communicate with other devices that share the same wireless connectivity. Invaluable if you're installing displays in locations such as banks or government buildings, where you cannot get onto the local network. -
FailOver
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.
Specifications
Summary
- Product Description

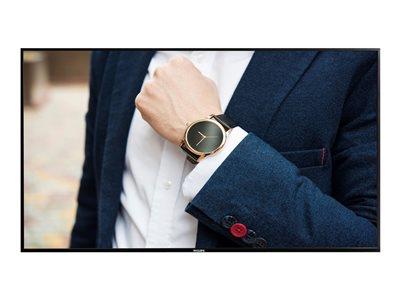

- Philips 49BDL4051D D-Line - 49" Class (48.5" viewable) LED-backlit LCD display - Full HD
- Product Type
- LED-backlit LCD flat panel display
- Diagonal Class
- 49"
- Diagonal Size
- 48.5"
- Commercial Use
- Yes - digital signage
- Platform
- Android
- Resolution
- 1920 x 1080
- Display Format
- 1080p (Full HD)
- Input Video Formats
- 1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 576/50p, 1080/50p, 1080/60p, 480/60i, 576/50i
- Max Number of Screens
- 225
- Video Interface
- HDMI
- HDMI Ports Qty
- 2 ports
- Connectivity
- Wi-Fi, LAN
- PC Interface
- DVI, DisplayPort
- Technology
- IPS
- LCD Backlight Technology
- LED backlight
- Image Aspect Ratio
- 16:9
- TV Tuner
- No tuner
- Commercial Features
- HTML5 support, CMND management, FailOver
- Picture Enhancements
- Pixel Shift, 3D Combfilter
- Speaker System
- 2 speakers
- Storage Drive Capacity
- 16 GB
- Storage Capacity
- 16 GB
- Supported Memory Cards
- microSD
- USB
- 2 ports
- Included Accessories
- Remote control, batteries
- Voltage
- AC 120/230 V
- Energy Class
- Class G
- Power Consumption Operational
- 130 Watt
- Power Consumption (On mode)
- 70.4 W
- Power Consumption Stand by
- 0.5 Watt
- Dimensions (WxDxH) - without stand
- 109.76 cm x 4.55 cm x 63.39 cm
- Weight
- 14.8 kg
- Environmental Standards
- ENERGY STAR Qualified
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Product Type
- LED-backlit LCD flat panel display
- Energy Class
- Class G
- Power Consumption Operational
- 130 Watt
- Power Consumption (On mode)
- 70.4 W
- Power Consumption SDR (On mode)
- 70.4 kWh/1000h
- Diagonal Class
- 49"
- Diagonal Size
- 48.5"
- Commercial Use
- Yes - digital signage
- Series
- D-Line
- Platform
- Android
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Video Interface
- HDMI
- HDMI Ports Qty
- 2 ports
- PC Interface
- DVI, DisplayPort
- Modes
- Portrait mode, landscape mode
- Picture Enhancements
- Pixel Shift, 3D Combfilter
- Dimensions
- Without stand
- Width
- 109.76 cm
- Depth
- 4.55 cm
- Height
- 63.39 cm
- Weight
- 14.8 kg
Display
- LCD Display Technology
- IPS
- Resolution
- 1920 x 1080
- Display Format
- 1080p (Full HD)
- Image Aspect Ratio
- 16:9
- LCD Backlight Technology
- LED backlight
- Image Contrast Ratio
- 1100:1
- Dynamic Contrast Ratio
- 500000:1
- Brightness
- 450 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Pull-Down Compensation
- 3:2, 2:2
- Response Time
- 12 ms
- Display Menu Language
- Danish, Chinese (traditional), Chinese (simplified), English, German, French, Italian, Norwegian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Turkish, Arabic, Japanese
- Commercial Features
- HTML5 support, CMND management, FailOver
- Operation Hours / Days
- 24 / 7
- Features
- 3D MA deinterlacing, picture in picture (no tuner)
Video Wall
- Max Number of Screens
- 225
Stands & Mounts
- Flat Panel Mount Interface
- 400 x 400 mm
- VESA Compatibility
- Yes
Video Features
- Input Video Formats
- 1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 576/50p, 1080/50p, 1080/60p, 480/60i, 576/50i
- Supported Computer Resolutions
- 1366 x 768, 1440 x 1050, 1920 x 1200 (WUXGA), 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA), 832 x 624, 1280 x 768 (WXGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1152 x 864, 1280 x 960, 1280 x 720, 640 x 350, 720 x 400, 848 x 480, 1152 x 900, 1360 x 768, 1680 x 1050 (WSXGA+), 1920 x 1080, 1440 x 900, 1280 x 800, 1400 x 1050, 1600 x 900, 960 x 720
Media Player
- Supported Video Formats
- MPEG-4, WMV, ASF, AVI, MKV, VOB, FLV, TS, DAT, MPG, MPEG
- Supported Audio Formats
- MP3, WMA, AAC, M4A
- Supported Pictures Formats
- BMP, JPG, PNG, JPEG
- Supported Memory Cards
- microSD
- USB Port
- Yes
- USB Ports Qty
- 2
- Configuration
- Rockchip RK3399 - 4 GB - 16 GB
- Storage Drive Capacity
- 16 GB
- Operating System
- Android OS 7.1.2
Remote Control
- Type
- Remote control
Audio System
- Speaker System
- 2 speakers
- Output Power / Total
- 20 Watt
- Speakers
- 2 x speaker - 10 Watt
Network & Internet Multimedia
- Functionality
- WEB browsing
- Connectivity
- Wi-Fi, LAN
- Wi-Fi Protocol
- 802.11b, 802.11g, 802.11n, 802.11a, 802.11ac
Connections
- Connector Type
- DisplayPort input , 2 x HDMI input , DVI-I input , Audio line-in , Audio line-out , Remote control , RS-232C input , RS-232C output , Infrared input , Infrared output , DisplayPort output , DVI-I output , USB 3.0 , USB 2.0
Miscellaneous
- Included Accessories
- Batteries
- Cables Included
- Serial cable
- Compliant Standards
- FCC Class A certified, UL, BSMI, cUL, CB, PSB, CECP, EPA, EAC
Environmental Standards
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 7.0
Power
- Power Device
- Power supply
- Input Voltage
- AC 120/230 V
- Power Consumption Stand by
- 0.5 Watt
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 80% (non-condensing)
