Description

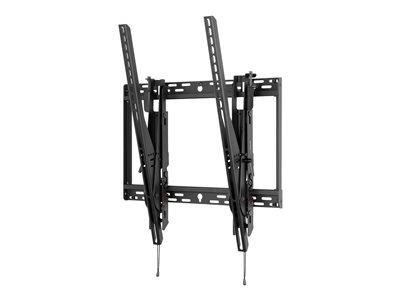

Peerless-AV's SmartMount universal portrait tilt wall mount delivers an ultra-slim profile designed to hold large displays. Installation and maintenance are made easy with the STP680's robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount's built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning of the mounted display.
Specifications
Summary
- Product Description
- Peerless-AV SmartMount STP680 bracket - for flat panel - semi-gloss black
- Product Type
- Bracket - wall-mountable
- Dimensions (WxDxH)
- 55.9 cm 67.3 cm
- Adjustable Depth
- 8.6-26.9 cm
- Tilt
- -5° to 15°
- Adjustments
- Levelling, tilt
- Weight
- 6.3 kg
- Recommended Use
- Flat panel
- Recommended Display Size
- 46"-90"
- VESA Mounting Interface
- 650 x 400 mm
- Max Mounting Pattern Size
- 650 x 494 mm
- Max Load Weight
- 158.76 kg
- Colour
- Semi-gloss black
- Package Content
- Mounting hardware, allen wrench (4mm), security wrench
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Width
- 55.9 cm
- Height
- 67.3 cm
- Adjustable Depth
- 8.6-26.9 cm
- Weight
- 6.3 kg
- Colour
- Semi-gloss black
- Package Content
- Mounting hardware, allen wrench (4mm), security wrench
AV Furniture
- Type
- Bracket
- Recommended Use
- Flat panel
- Placing / Mounting
- Wall-mountable
- VESA Mounting Interface
- 650 x 400 mm
- Max Mounting Pattern Size
- 650 x 494 mm
- Cable Management
- Integrated cable management
- Recommended Display Size
- 46"-90"
- Tilt
- -5° to 15°
- Adjustments
- Levelling, tilt
- Max Load Weight
- 158.76 kg
- Finish
- Epoxy powder coated
- Details
- Portrait orientation
Dimensions & Weight Details
- Dimensions
- Wall plate - width: 55.9 cm height: 36.8 cm
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
