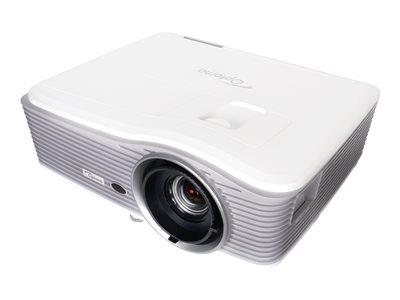

Optoma 5500 ANSI Lumens Full HD DLP Technology Installation 5.9Kg

Review this product
Quicklinx: C8J7WS00 Mfr#: 95.72201GC0E
Portability: Non-portable
Ordered upon request
£1,573.33 ex VAT
£1,887.99 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

Delivering Full HD image quality, the EH515 is ideal for conference rooms, large classrooms, lecture theaters, museums and houses of worship. This large venue projector boasts a brightness of 5,500 lumens and features multiple digital connection options, with two HDMI inputs and DisplayPort. For more complex installations, this projector is equipped with a large zoom range, lens shift and a built-in geometric adjustment feature - ideal for image stacking, uneven walls or where a projector placement is awkward and needs to be installed at an angle.

  • High contrast

    Add more depth to your image with a high contrast projector; with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.
  • Full 3D

    Optoma projectors can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles. Support for 144Hz rapid refresh rate provides ultra-smooth flicker free images.
  • Full HD

    Full HD (1920 x 1080) has more than twice the resolution of HD Ready (1280 x 720). EH515 is compatible with HDTV broadcasts and high-definition media to project impressive full 1080p images and video in their original digital brilliance.
  • Integrated speaker

    The built-in speaker offers excellent audio support. Easy to set up without the need for costly external speakers.
  • Energy saving

    Using the specially designed lamp modes, you can reduce the power consumption by up to 70%. Each mode also has a positive effect on the lamp life, while lowering the total cost of ownership and reducing maintenance.
  • Auto power off

    There may be instances when the projector is left running when not in use. To help save energy, the "Auto Power Off" feature automatically turns off the projector after a set period of time if it is not being used.
  • Eco AV mute

    Stay in control of your presentation with Eco AV mute. Direct your audience's attention away from the screen by blanking the image when no longer needed. This also reduces the power consumption by up to 70%, further prolonging the life of your lamp.
  • Four-corner adjustment

    Individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.
  • Brightness matching

    The brightness of a projector will vary throughout its life. To correctly match multiple units, the projector has set lamp power modes (stepped lamp dimming) to help match the brightness of both projectors.
  • Large zoom range

    A large zoom range enables multiple placement possibilities at a variety of distances from the projection screen. An advantage to this is that expensive interchangeable lens projectors can be substituted with a more cost effective solution whilst still retaining a diverse choice of positioning options.
  • MHL

    Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL, enabling you to view presentations and documents, stream videos and share photos on the big screen.
  • Networking and control

    Featuring a wide range of options you can remotely control and monitor the projector.
  • BrilliantColor technology

    For vibrant, natural looking images, Optoma projectors incorporate BrilliantColor multi-color processing technology.
  • Wired remote

    The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

Specifications

Summary

Product Description
Optoma EH515 - DLP projector - 3D
Device Type
DLP projector - 1080p
3D Capable
Yes (3D glasses sold separately)
Brightness
5500 ANSI lumens
Contrast Ratio
10000:1
Resolution
Full HD (1920 x 1080)
Native Aspect Ratio
16:9
Lens Shift Direction
Horizontal, vertical
Bulb type
365 Watt
Bulb life cycle
Up to 3000 hour(s) - normal mode , Up to 4000 hour(s) - economic mode
Video Input
RGB, S-Video, composite video, component video (NTSC, SECAM, PAL)
Video Modes
480p, 720p, 1080i, 1080p, 480i, 525i, 525p, 625p, 625i, 576i, 576p
Speakers
Speaker(s) - integrated
Power
AC 120/230 V (50/60 Hz)
Power Consumption Operational
425 Watt
Dimensions (WxDxH)
42.4 cm x 34.4 cm x 16 cm
Weight
5.9 kg


Detail

General

Device Type
DLP projector - 1080p
3D Capable
Yes (3D glasses sold separately)
Networking
Ethernet

Projector

Brightness
5500 ANSI lumens
Contrast Ratio
10000:1
Image Size
69.1 cm - 765 cm
Projection Distance
1.3 m - 8 m
Throw Ratio
1.2 - 2.16:1
Uniformity
80 %
Resolution
Full HD - Full HD (1920 x 1080)
Native Aspect Ratio
16:9
Max Sync Rate (V x H)
120 Hz x 91.146 kHz
Bulb type
365 Watt
Bulb life cycle
Up to 3000 hour(s) - normal mode , Up to 4000 hour(s) - economic mode
Features
BrilliantColor, PJlink, Crestron RoomView, 16:10 aspect ratio support, 4:3 aspect ratio support, AMX Device Discovery, ProJect Green, MHL compliance

Lens

Lens Aperture
F/2.5-3.39
Zoom Type
Manual
Zoom Factor
1.8x
Keystone Correction Direction
Horizontal, vertical
Vertical Keystone Correction
-30 / +30
Lens Shift Direction
Horizontal, vertical
Vertical Lens Shift
0% / 25%
Horizontal Lens Shift
10% / 10%

Video Input

TV System
NTSC, SECAM, PAL
Analogue video Signal
RGB, S-Video, composite video, component video
Video Interfaces
VGA, HDMI, DisplayPort, component video, composite video, S-Video, RGB, MHL
Video Modes
480p, 720p, 1080i, 1080p, 480i, 525i, 525p, 625p, 625i, 576i, 576p

Speakers

Type
Integrated
Sound Output Mode
Mono
Output Power / Channel
20 Watt
Speakers
1 x mixed channel

Expansion / Connectivity

Interfaces
2 x HDMI - 19 pin HDMI Type A , 1 x Mobile High-Definition Link (MHL) , 1 x DisplayPort - 20 pin DisplayPort , 2 x VGA / component video input - 15 pin HD D-Sub (HD-15) , 1 x S-video input - 4 pin mini-DIN , 1 x composite video input - RCA , 2 x audio line-in - RCA x 2 , 2 x audio line-in - mini-phone 3.5 mm , 1 x microphone input - mini-phone 3.5 mm , 1 x audio line-out - mini-phone 3.5 mm , 1 x VGA output - 15 pin HD D-Sub (HD-15) , 1 x serial RS-232 - 9 pin D-Sub (DB-9) (management) , 1 x USB (power only) - 4 pin USB Type A (power only) , 1 x USB - 4 pin USB Type B (management) , 1 x network - RJ-45 (management) , 1 x 3D Sync out , 1 x remote control

Miscellaneous

Included Accessories
Wireless remote control
Cables Included
1 x VGA cable
Security Features
Security lock slot (cable lock sold separately), password protection
Security Slot Type
Kensington security slot
Compliant Standards
RoHS

Power

Power Source
AC
Nominal Voltage
AC 120/230 V (50/60 Hz)
Power Consumption Operational
425 Watt
Power Consumption Stand by
0.5 Watt

Dimensions & Weight

Width
42.4 cm
Depth
34.4 cm
Height
16 cm
Weight
5.9 kg

Environmental Parameters

Sound Emission (Economic Mode)
28 dB
