Description

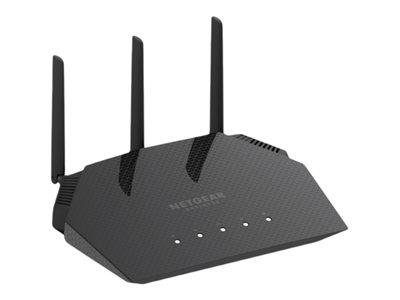

The NETGEAR Wi-Fi 6 AX1800 Dual Band Wireless Access Point (AP) delivers 802.11ax high performance wireless connectivity for Small Office and Home Office (SOHO) deployments and supports dual band concurrent Wi-Fi 6 operations at 2.4GHz and 5GHz with a combined throughput of 1.8Gbps (600Mbps at 2.4GHz and 1200Mbps at 5GHz). The WAX204 Wi-Fi 6 Access Point provides standalone configuration with easy setup for a reliable, 802.11ax high performance, and cost-effective wireless solution.
-
Enhanced connectivity
With dual-band support, the NETGEAR WAX204 offers a 2.4 GHz band for extended range and a 5 GHz band for high-speed Internet access, ensuring optimal performance for various devices and applications. -
Robust security
Equipped with WPA, WPA2, and WPA3 encryption algorithms, this wireless access point provides a secure connection, protecting sensitive data from unauthorized access. -
High capacity
Designed to support up to 256 clients, the NETGEAR WAX204 is suitable for busy environments, offering reliable service without compromising speed or quality. -
Versatile performance
Featuring a maximum throughput of 600 Mbps on the 2.4 GHz band and 1.2 Gbps on the 5 GHz band, the WAX204 delivers fast and efficient wireless connectivity, catering to all your Internet needs. -
Easy management
With features like Quality of Service (QoS), VPN passthrough, and Wi-Fi Multimedia (WMM) support, managing your network's performance and prioritizing traffic becomes effortless.
Specifications
Summary
- Product Description
- NETGEAR WAX204 - radio access point - Wi-Fi 6
- Device Type
- Radio access point
- Form Factor
- Desktop
- Ports Qty
- 5
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Maximum throughput (2.4 GHz): 600 Mbps , Maximum throughput (5 GHz): 1.2 Gbps
- Capacity
- Maximum number of clients: 256 , SSIDs total: 3
- Dimensions (WxDxH)
- 23.6 cm x 18.4 cm x 5.7 cm
- Weight
- 490 g
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Radio access point
- Width
- 23.6 cm
- Depth
- 18.4 cm
- Height
- 5.7 cm
- Weight
- 490 g
Networking
- Form Factor
- Desktop
- Ports Qty
- 5
- Connectivity Technology
- Wireless
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Maximum throughput (2.4 GHz): 600 Mbps , Maximum throughput (5 GHz): 1.2 Gbps
- Capacity
- Maximum number of clients: 256 , SSIDs total: 3
- Wi-Fi Rating
- AX1800
- Status Indicators
- Power, LAN, wireless, WPS, Internet
- Features
- Auto-uplink (auto MDI/MDI-X), MAC address filtering, VPN passthrough, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), Wi-Fi Protected Setup (WPS), reset button, SOHO (Small Office/Home Office)
- Encryption Algorithm
- WPA, WPA2, WPS, WPA3
- Authentication Method
- Radio Service Set ID (SSID)
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11e, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Aerial
- Antenna
- External
- Antenna Qty
- 3
- Gain Level
- 3 dBi
Expansion / Connectivity
- Interfaces
- 4 x 1000Base-T - RJ-45 , 1 x 1000Base-T - RJ-45 (WAN)
Miscellaneous
- Cables Included
- 1 x network cable
- MTBF
- 1,970,213.9 hours
- Compliant Standards
- EN 60950
Power
- Power Device
- External power adapter
- Installed Qty
- 1
- Power Provided
- 18 Watt
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years , Technical support - 90 days
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90%
