Description
The affordable price of NETGEAR’s JGS524 enables you to cost-effectively deliver Gigabit Ethernet networking speeds across your entire office network – even directly to the desktop. With up to 48 Gbps of bandwidth, this 24-port switch can send 2000 Mbps per port. Network users can take advantage of the their ability to send and receive large amounts of multimedia, image and video information in no time at all. The JGS524 is ideal for teams, departments or growing offices requiring outstanding performance at a low price.
-Gigabit speeds meet performance needs of bandwidth hungry applications. -Easy integration of 10, 100, and 1000 Mbps devices. -Automatic speed and full/half-duplex sensing on every port. -Auto Uplink™ on every port to ensure correct link for different cables. -LED’s make network monitoring easy. -Compact enough for desktop, but comes with a rack mount kit. -Compatible with PC, Macintosh, Linux and Unix operating systems.
-
Efficient cooling system
Designed to operate within a wide temperature range, this switch ensures reliability from 0°C to 50°C, making it suitable for various environments. -
Versatile compatibility
With support for both Mac and PC platforms, this switch offers flexible integration options for a broad range of network setups. -
High-speed connectivity
Features 24 RJ-45 connectors supporting 1000Base-T for Gigabit Ethernet speeds, enabling high-speed connections and efficient network traffic management. -
Robust design
Includes a rack mounting kit and adheres to multiple compliance standards, including EN55024 and cUL, ensuring a durable and reliable networking solution. -
Advanced networking features
Boasts auto-negotiation, auto-uplink, and flow control capabilities, alongside a 48 Gbps switching capacity, to optimize network performance and efficiency.
Specifications
Summary
- Product Description

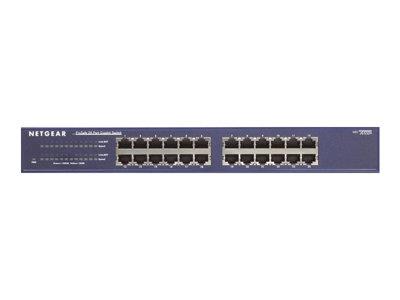

- NETGEAR JGS524v2 - switch - 24 ports - unmanaged - rack-mountable
- Device Type
- Switch - 24 ports - unmanaged
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000
- Performance
- Switching capacity: 48 Gbps
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), QoS, Energy Efficient Ethernet, ToS
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
- Power
- AC 100/230 V (50 - 60 Hz)
- Dimensions (WxDxH)
- 32.8 cm x 16.9 cm x 4.3 cm
- Weight
- 1.65 kg
- Localisation
- Europe
- Manufacturer Warranty
- NETGEAR lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 24 ports - unmanaged
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000
- Performance
- Switching capacity: 48 Gbps
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), QoS, Energy Efficient Ethernet, ToS
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
- Status Indicators
- Port transmission speed, power, link/activity
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 100/230 V (50 - 60 Hz)
- Power Consumption Operational
- 17.9 Watt
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 238,872 hours
- Compliant Standards
- Plug and Play, cUL, EN55022, EN55024, CISPR 22, CB, CCC, UL 60950-1, EN 60950-1, KCC, FCC Part 15 A, C-Tick Class A, LVD, VCCI Class A, EAC
- Localisation
- Europe
Dimensions & Weight
- Width
- 32.8 cm
- Depth
- 16.9 cm
- Height
- 4.3 cm
- Weight
- 1.65 kg
Manufacturer Warranty
- Service & Support
- NETGEAR lifetime warranty
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 10 - 95%
