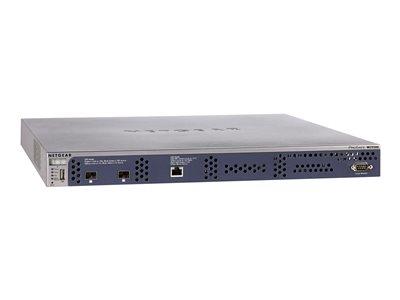

NetGear ProSAFE 500 WC9500 High Capacity Wireless Controller

NetGear ProSAFE 500 WC9500 High Capacity Wireless Controller

Lifetime warranty
Review this product
Quicklinx: B393WS00 Mfr#: WC9500-10000S
Type: Network management device
Connectivity: Wired
Speed: [N/A]
Protocol: Gigabit Ethernet
Compatibility: PC
Hurry, only 3 left in stock!
£2,703.09 ex VAT
£3,243.70 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

The ProSAFE WC9500 High Capacity Wireless Controller is a scalable, high performance WLAN solution for centralized management of up to 200 ProSAFE wireless access points in a single wireless controller. Three WC9500 Wireless Controller can stack into a single cluster to support up to 600 Access Points, with a fourth WC9500 acting as a redundant backup. The supported AP’s extends from entry level single band WNAP210/WNAP320/WN370 APs to dual band business class WNDAP360/350, and premium grade 3x3 WNDAP660/620, and outdoor WND930 AP’s, and is also 802.11ac ready.

The WC9500 Wireless Controller is easy to configure with an intuitive user interface and setup wizard, comprehensive dashboard and monitoring statistics. Flexible enough to support a few dozen laptops to several thousand tablets, it delivers enterprise grade functionality for mid to large-sized organizations, but without the cost and complexity of big IT. The WC9500 comes fully equipped with enterprise grade features such as comprehensive wireless security (WPA, WPA2, Radius, LDAP, Rogue AP protection), guest access, and full networking functionality including embedded DHCP server, VLAN on wired and wireless networks support, to full Quality of Service differentiation. Additionally, with no recurring annual license fees: Simply pay as you grow.

Specifications

Summary

Product Description
NETGEAR ProSafe High Capacity Wireless Controller WC9500 - network management device
Device Type
Network management device
Form Factor
External - 1U
Localisation
Worldwide (excluding China)
Data Link Protocol
Gigabit Ethernet, 10 Gigabit Ethernet
Capacity
Manageable access points: 200 , Maximum number of access points (per cluster): 600 , BSSIDs: 144 , Concurrent stations per cluster: 36000 , Concurrent stations: 12000 , Profile groups: 9 , Profiles: 128 , Security profile groups per profile group: 9 , Detectable rogue access points: 512
Power
AC 100/230 V
Power Redundancy
Yes
Dimensions (WxDxH)
44 cm x 43 cm x 4.3 cm
Weight
7.57 kg
Manufacturer Warranty
NETGEAR lifetime warranty


Detail

General

Device Type
Network management device
Height (Rack Units)
1U
Width
44 cm
Depth
43 cm
Height
4.3 cm
Weight
7.57 kg
Localisation
Worldwide (excluding China)

Networking

Form Factor
External
Connectivity Technology
Wired
Data Link Protocol
Gigabit Ethernet, 10 Gigabit Ethernet
Network / Transport Protocol
TCP/IP, UDP/IP, ICMP/IP, IPSec, BOOTP, DHCP
Routing Protocol
CIDR
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 2c, HTTP, TFTP, SSH
Capacity
Manageable access points: 200 , Maximum number of access points (per cluster): 600 , BSSIDs: 144 , Concurrent stations per cluster: 36000 , Concurrent stations: 12000 , Profile groups: 9 , Profiles: 128 , Security profile groups per profile group: 9 , Detectable rogue access points: 512
Status Indicators
Power, status, fan
Features
Auto-sensing per device, auto-negotiation, load balancing, LDAP support, VLAN support, Syslog support, stackable, IPv6 support, SNTP support, Wi-Fi Multimedia (WMM) support, Auto Channel Select (ACS), Access Control List (ACL) support, RADIUS support, roaming function, DHCP server, IPv4 support, rogue access point detection, tagged VLAN, Captive Portal
Encryption Algorithm
DES, Triple DES, IKE, TKIP, WPA-PSK, AES-CCMP, AES-CCM, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, AES-CBC, 128-bit SSL, 1024-bit RSA, 2048-bit RSA, TLS 1.1, WEP
Authentication Method
X.509 certificates, Radio Service Set ID (SSID), TACACS, LDAP, Active Directory
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1x, IEEE 802.11i, IEEE 802.11e

Expansion / Connectivity

Interfaces
2 x 10Gb Ethernet - SFP+ , 1 x 1000Base-T (management) - RJ-45 , 1 x console - DB-9 , 1 x USB 2.0 - Type A

Miscellaneous

MTBF
664,072 hours

Power

Power Device
Internal power supply - hot-plug
Installed Qty
2
Max Supported Qty
2
Power Redundancy
Yes
Voltage Required
AC 100/230 V
Power Consumption Operational
82.3 Watt
Power Provided
165 Watt

Manufacturer Warranty

Service & Support
Limited warranty - replacement - lifetime - on-site - response time: next business day , Limited warranty - software application support - 90 days

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90%
