Description
NETGEAR ProSafe Smart Switches fill the gap between unmanaged and fully managed switches. The family of ProSafe Smart Switches is designed for growing businesses that want control over their network without the cost and complexity of a full Layer 2 management implementation.
This PoE capable Smart Switch, the GS724TP, provides power and data using built-in IEEE 802.3af PoE on all 24 ports. In addition, it offers an intuitive web-based management tool for quick and easy deployment and configuration making it ideal for deploying access points, VoIP phones and IP-based surveillance cameras. This switch is equipped with highly advanced features such as Access Control Lists (ACL), 802.1x port authentication, enhanced QoS, rate limiting and IGMP Snooping among others to provide a small and medium-sized business with a network that is geared for growth while providing scalability and reliability. With the utility of 24 10/100/1000 Mbps ports, two combination (Copper/hot-swappable Small Form-factor Pluggable (SFP)) Gigabit ports for optional fiber connectivity, growing business networks, classrooms and workgroups can benefit from superior performance and keep up with expanding network needs. This high-performing switch features non-blocking wire-speed architecture with 48 Gbps switching capacity for maximum data throughput.
-
Enhanced connectivity
With 24 RJ-45 connectors for 1000Base-T and 2 SFP connectors for 1000Base-X, the NETGEAR Smart GS724TPv2 offers a wide range of connection options, catering to diverse networking needs. -
Robust security
Features like Access Control List (ACL) support, IEEE 802.1x and IEEE 802.3az compliant standards, and DiffServ support ensure your network remains secure and efficient. -
Optimized power management
The PoE+ capability with a generous 190 W budget allows for flexible deployment of devices such as IP cameras and wireless access points, without the need for additional power supplies. -
Advanced management
Manageable via HTTP, HTTPS, RMON, SNMP 1, and SNMP 3, this switch offers versatile remote management options to monitor and control your network infrastructure effectively. -
Efficient operation
Equipped with 2 fans and a 500KB packet buffer, the GS724TPv2 ensures reliable, cool operation and smooth data traffic handling, making it suitable for medium to large-scale deployments.
Specifications
Summary
- Product Description

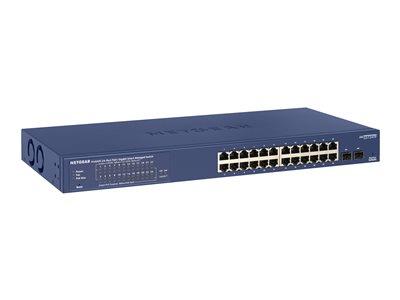

- NETGEAR Smart GS724TPv2 - switch - 24 ports - smart - rack-mountable
- Device Type
- Switch - 24 ports - smart
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 190 W
- Performance
- Fabric throughput: 52 Gbps
- Capacity
- IGMP groups: 128 , VLANs supported: 256 , ACL: 100
- MAC Address Table Size
- 8K entries
- Routing Protocol
- IGMP, MLD
- Remote Management Protocol
- SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS
- Features
- IGMP snooping, DiffServ support, ACL support, QoS, MLD snooping, LLDP support, LACP, Energy Efficient Ethernet, dual firmware images, 500KB packet buffer, 802.1x authentication, 2 fans, cable test, Voice VLAN, DoS protection
- Compliant Standards
- IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az
- Localisation
- Europe
- Manufacturer Warranty
- NETGEAR lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 24 ports - smart
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 190 W
- Performance
- Fabric throughput: 52 Gbps
- Capacity
- IGMP groups: 128 , VLANs supported: 256 , ACL: 100
- MAC Address Table Size
- 8K entries
- Routing Protocol
- IGMP, MLD
- Remote Management Protocol
- SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS
- Authentication Method
- RADIUS
- Features
- IGMP snooping, DiffServ support, ACL support, QoS, MLD snooping, LLDP support, LACP, Energy Efficient Ethernet, dual firmware images, 500KB packet buffer, 802.1x authentication, 2 fans, cable test, Voice VLAN, DoS protection
- Compliant Standards
- IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az
- Processor
- 1 MIPS 4Kec: 500 MHz
- RAM
- 128 MB
- Flash Memory
- 32 MB
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45 PoE+ , 2 x 1000Base-X SFP
Power
- Power Device
- Internal power supply
- Installed Qty
- 1
Miscellaneous
- Compliant Standards
- SCC
- Localisation
- Europe
Manufacturer Warranty
- Service & Support
- NETGEAR lifetime warranty
