Description

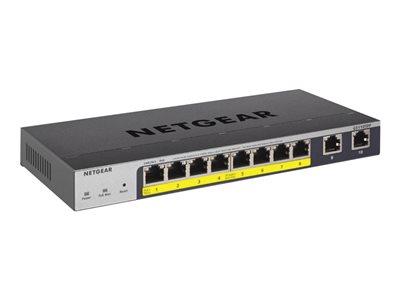

The GS110TPP comes with a comprehensive set of features, such as enhanced VLAN and QoS, access control lists (ACL), 802.1x port authentication (MD5), rate limiting and IGMP snooping and many more, to provide businesses with networks that are geared for growth while ensuring performance and reliability. Both an intuitive web-browser GUI interface and smart control center, offer simple management, making it a snap to monitor switch performance, configure ports, even set up port trunks, VLANs, and traffic prioritization. With the fanless design and compact form factor, the GS110TPP offers quiet operation and is suitable for deployments in any type of environment, especially the ones which are sensitive to noise.
-
Enhanced security
With support for Access Control List (ACL) and both RADIUS and TACACS+ authentication methods, this switch ensures secure network access and management, safeguarding your data from unauthorized access. -
Robust connectivity
Featuring 8 PoE+ ports with a total PoE power budget of 120 W and two additional uplink ports, this switch facilitates flexible and efficient power distribution and connectivity for various devices. -
High performance
Boasting a non-blocking switching throughput of 20 Gbps and a forwarding performance of 14.8 Mpps, the switch ensures smooth data transmission and high-speed connectivity for all connected devices. -
Comprehensive network features
Supports a wide range of networking standards including IEEE 802.1Q VLAN, IEEE 802.1p QoS, and IEEE 802.3ad (LACP), along with advanced features like IPv4/IPv6 routing, IGMP snooping, and VoIP support, making it versatile for any network setup. -
Easy management and deployment
Designed for convenience, this switch is cloud managed, allowing for easy setup, configuration, and monitoring from anywhere. Its fanless design ensures silent operation, making it ideal for noise-sensitive environments.
Specifications
Summary
- Product Description
- NETGEAR GS110TPP - switch - 8 ports - smart
- Device Type
- Switch - 8 ports - smart
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 120 W
- Performance
- Non-blocking switching throughput: 20 Gbps , Forwarding performance (64-byte packet size): 14.8 Mpps
- Capacity
- IPv4 routes (static): 32 , Packet buffer size: 512 KB , ACL: 100 , VLANs supported: 64 , IGMP multicast groups: 256
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, MLD
- Remote Management Protocol
- SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, HTTP, HTTPS, IPv4, IPv6
- Features
- Security slot (Kensington security lock compatible), QoS, fanless, static routing, VLAN support, ACL support, DSCP support, DoS, IGMP snooping, Energy Efficient Ethernet, IPv4 support, IPv6 support, GARP, GVRP, LLDP-MED, LACP support, port trunking, 512KB packet buffer, DHCP snooping, loop prevention, DoS attack prevention, cloud managed, firmware upgradable, store and forward, WRR, SP, VoIP support, flow control, full duplex mode, MSTP support, RSTP support, STP support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, MLD snooping
- Compliant Standards
- IEEE 802.3at, IEEE 802.3af, IEEE 802.1p, IEEE 802.1x, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP)
- Dimensions (WxDxH)
- 23.6 cm x 10.1 cm x 2.7 cm
- Weight
- 640 g
- Localisation
- Europe
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports - smart
- Enclosure Type
- Desktop, wall-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 120 W
- Performance
- Non-blocking switching throughput: 20 Gbps , Forwarding performance (64-byte packet size): 14.8 Mpps
- Capacity
- IPv4 routes (static): 32 , Packet buffer size: 512 KB , ACL: 100 , VLANs supported: 64 , IGMP multicast groups: 256
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, MLD
- Remote Management Protocol
- SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, HTTP, HTTPS, IPv4, IPv6
- Authentication Method
- RADIUS, TACACS+
- Features
- Security slot (Kensington security lock compatible), QoS, fanless, static routing, VLAN support, ACL support, DSCP support, DoS, IGMP snooping, Energy Efficient Ethernet, IPv4 support, IPv6 support, GARP, GVRP, LLDP-MED, LACP support, port trunking, 512KB packet buffer, DHCP snooping, loop prevention, DoS attack prevention, cloud managed, firmware upgradable, store and forward, WRR, SP, VoIP support, flow control, full duplex mode, MSTP support, RSTP support, STP support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, MLD snooping
- Compliant Standards
- IEEE 802.3at, IEEE 802.3af, IEEE 802.1p, IEEE 802.1x, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP)
- Processor
- : 500 MHz
- RAM
- 128 MB
- Flash Memory
- 32 MB
- Status Indicators
- Power, cloud, link/activity/speed, PoE, fault
Expansion / Connectivity
- Interfaces
- 8 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W , 2 x 10/100/1000 Base-T RJ-45 uplink
Power
- Power Device
- External power adapter
- Installed Qty
- 1
Miscellaneous
- MTBF
- 646,773 hours
- Localisation
- Europe
Dimensions & Weight
- Width
- 23.6 cm
- Depth
- 10.1 cm
- Height
- 2.7 cm
- Weight
- 640 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime , Limited warranty - power supply - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 95% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
