Robust security
Equipped with advanced encryption algorithms including 2048-bit RSA, 256-bit SHA-2, and 512-bit SHA-2, alongside RADIUS, Secure Shell v.2 (SSH2), and TACACS+ authentication methods, this switch ensures secure network access and data transmission. -
High performance
With a switching fabric bandwidth of 960 Gbps and a throughput of 714 Mpps, the NETGEAR M4300-48XF delivers high-speed data processing and transmission, catering to demanding business applications. -
Extensive connectivity
Featuring 48 10GBase-X SFP+ ports and 2 shared 10GBase-T ports, this switch offers versatile connectivity options for a wide range of network configurations and high-speed data requirements. -
Advanced networking features
Supports a comprehensive suite of Layer 3 switching capabilities, including ECMP, IGMP, MLD, OSPFv2/v3, PIM-DM/SM/SSM, RIP-2, and static IP routing, enabling efficient network traffic management and routing. -
Energy efficient
Certified with ENERGY STAR for energy efficiency, featuring front-to-rear airflow design and hot-plug power supplies, this switch optimizes power usage and cooling, reducing operational costs.
Specifications
Summary
- Product Description

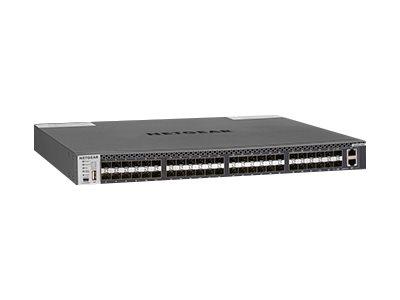

- NETGEAR M4300-48XF - switch - 48 ports - Managed - rack-mountable
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 48 x 10GBase-X + 2 x shared 10GBase-T
- Performance
- Switching fabric bandwidth: 960 Gbps , Throughput: 714 Mpps
- MAC Address Table Size
- 128K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP
- Remote Management Protocol
- SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SCP, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS
- Features
- BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, NSF, sFlow, PVST+, UDLD, LLDP support, DHCP relay, LACP, RSPAN, PVRST, MIB, dual firmware images, CoS, PTP, STRG, AAA, UDP, PIM, 56MB packet buffer
- Compliant Standards
- IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
- Power
- AC 120/230 V
- Power Redundancy
- Optional
- Dimensions (WxDxH)
- 44 cm x 34.5 cm x 4.4 cm
- Weight
- 5.86 kg
- Localisation
- United States, Europe
- Manufacturer Warranty
- NETGEAR lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 48 x 10GBase-X + 2 x shared 10GBase-T
- Performance
- Switching fabric bandwidth: 960 Gbps , Throughput: 714 Mpps
- MAC Address Table Size
- 128K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP
- Remote Management Protocol
- SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SCP, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS
- Encryption Algorithm
- SHA, MD5, SSL 3.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, TLS 2.0
- Authentication Method
- RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, NSF, sFlow, PVST+, UDLD, LLDP support, DHCP relay, LACP, RSPAN, PVRST, MIB, dual firmware images, CoS, PTP, STRG, AAA, UDP, PIM, 56MB packet buffer
- Compliant Standards
- IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
- Processor
- : 800 MHz
- RAM
- 1 GB
- Flash Memory
- 256 MB
Expansion / Connectivity
- Interfaces
- 48 x 10GBase-X SFP+ , 2 x 10GBase-T RJ-45 , 1 x management (Gigabit LAN) RJ-45 , 1 x serial (RS-232) RJ-45 , 1 x console (mini-USB) , 1 x USB Type A
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 1
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Power Provided
- 250 Watt
- Voltage Required
- AC 120/230 V
- Power Consumption Operational
- 152.4 Watt
- 80 PLUS Certification
- 80 PLUS
- Features
- Front-to-rear airflow
Miscellaneous
- MTBF
- 657,392 hours
- Compliant Standards
- SCCP
- Localisation
- United States, Europe
Dimensions & Weight
- Width
- 44 cm
- Depth
- 34.5 cm
- Height
- 4.4 cm
- Weight
- 5.86 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
