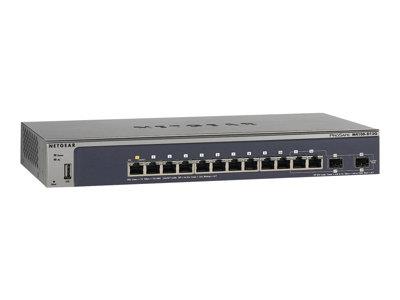

NetGear M4100-D12G Managed Switch

Review this product
Quicklinx: 8TYZWS00 Mfr#: GSM5212-100NES
Type: Gigabit Ethernet
Ports: 12
Data Transfer Rate: 1Gbps
Managed: Yes
Ordered upon request
£138.38 ex VAT
£166.05 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

Intelligent Edge M4100 series consists of 12 fully managed switches ranging from 8-port Fast Ethernet to 50-port Gigabit Ethernet. They are ideal for all organizations considering reliable, affordable and simple access layer switching with CLI scripting, Layer 3 static routing as well as PoE scalability. As a cost-effective component of converged voice, video and data networking solutions, NETGEAR M4100 series delivers a secure, intelligent edge in commercial buildings and large campus LAN environments. PoE (802.3af) and PoE+ (802.3at) versions of M4100 series are perfect for Wireless access points, IP telephony, CCTV and video-surveillance deployments.

Specifications

Summary

Product Description
NETGEAR ProSAFE M4100-D12G - switch - 12 ports - Managed - desktop, wall-mountable
Device Type
Switch - 12 ports - L2+ - Managed
Enclosure Type
Desktop, wall-mountable
Subtype
Gigabit Ethernet
Ports
12 x 10/100/1000 + 2 x shared SFP
Performance
Bandwidth: 24 Gbps
MAC Address Table Size
16K entries
Routing Protocol
Static IPv4 routing
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, CLI
Features
Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, RADIUS support, MLD snooping, IPv4 support, fanless, LACP support, DHCP client, Multicast VLAN Registration (MVR), Class of Service (CoS)
Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
32.8 cm x 16.9 cm x 4.32 cm
Weight
1.33 kg
Localisation
Canada, United States, Europe
Manufacturer Warranty
NETGEAR lifetime warranty
Bundled Services
NETGEAR lifetime warranty


Detail

General

Device Type
Switch - 12 ports - L2+ - Managed
Enclosure Type
Desktop, wall-mountable
Subtype
Gigabit Ethernet
Ports
12 x 10/100/1000 + 2 x shared SFP
Performance
Bandwidth: 24 Gbps
MAC Address Table Size
16K entries
Routing Protocol
Static IPv4 routing
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, CLI
Authentication Method
RADIUS, TACACS+
Features
Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, RADIUS support, MLD snooping, IPv4 support, fanless, LACP support, DHCP client, Multicast VLAN Registration (MVR), Class of Service (CoS)
Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az
Status Indicators
Port status, power

Expansion / Connectivity

Interfaces
1 x 1000Base-T - RJ-45 , 11 x 1000Base-T - RJ-45 , 2 x SFP (mini-GBIC) , 1 x USB - 4 pin USB Type A , 1 x console - 9 pin D-Sub (DB-9) , 1 x USB - 4 pin mini-USB Type B

Power

Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
18.8 Watt

Miscellaneous

Cables Included
1 x USB cable
Compliant Standards
CISPR 22 Class A, cUL, UL 1950, VCCI Class A ITE, EN55024, EN55022 Class A, EN50082-1, CB, CCC, FCC Part 15 A, C-Tick Class A
Localisation
Canada, United States, Europe

Software / System Requirements

Software Included
Drivers & Utilities

Dimensions & Weight

Width
32.8 cm
Depth
16.9 cm
Height
4.32 cm
Weight
1.33 kg

Manufacturer Warranty

Service & Support
NETGEAR lifetime warranty

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
