Description

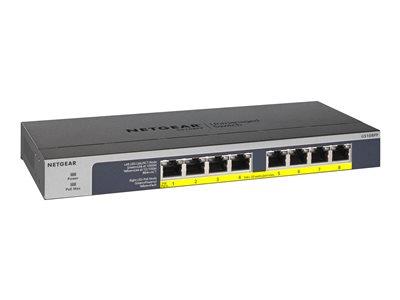

The NETGEAR GS108PP is the industry’s first flexible PoE+ 8-Port Gigabit plug-and-play switch with 120W PoE budget. The Industry’s first flexible PoE+ integrated technology allows you to increase or decrease the PoE budget at any time to provide to your devices the power they need with interchangeable external power supply and an intuitive power selector. The flexible mounting options (rack-mount, wall-mount or desktop) and the compact and fanless design make the GS108PP an ideal option for any business or home.
-
Robust connectivity
Equipped with 8 RJ-45 connectors supporting 1000Base-T for high-speed Gigabit Ethernet connections, the NETGEAR GS108PP ensures efficient networking and robust connectivity for all connected devices. -
Enhanced power delivery
Featuring Power over Ethernet Plus (PoE+) on all 8 ports with a generous 123 W PoE budget, this switch facilitates flexible installation of PoE devices such as IP cameras, VoIP phones, and wireless access points without the need for additional power supplies. -
Optimized network performance
With advanced features like 192KB packet buffer, Quality of Service (QoS), and support for jumbo frames up to 9 KB, the NETGEAR GS108PP is designed to optimize network performance, ensuring smooth data transmission and prioritization of bandwidth-intensive applications. -
Durable and reliable
The switch boasts an impressive MTBF (Mean Time Between Failures) of 2,752,476 hours, highlighting its reliability and durability in various operational environments, from desktop to rack-mount setups. -
Energy-efficient operation
Incorporating Energy Efficient Ethernet (IEEE 802.3az) and other energy-saving features, this switch reduces power consumption without sacrificing performance, making it an eco-friendly choice for your network infrastructure.
Specifications
Summary
- Product Description
- NETGEAR GS108PP - switch - 8 ports - rack-mountable
- Device Type
- Switch - 8 ports
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 123 W
- Performance
- Bandwidth: 16 Gbps
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 9KB
- Features
- Flow control, full duplex capability, store and forward, WFQ, QoS, Energy Efficient Ethernet, 192KB packet buffer, CoS, DSCP support, EEE, WRR
- Compliant Standards
- IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Power
- DC 54 V 2.4 A
- Dimensions (WxDxH)
- 23.6 cm x 10.2 cm x 2.7 cm
- Weight
- 590 g
- Localisation
- Europe
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports
- Enclosure Type
- Desktop, rack-mountable, wall-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 123 W
- Performance
- Bandwidth: 16 Gbps
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 9KB
- Features
- Flow control, full duplex capability, store and forward, WFQ, QoS, Energy Efficient Ethernet, 192KB packet buffer, CoS, DSCP support, EEE, WRR
- Compliant Standards
- IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Status Indicators
- Power, PoE, link/activity/speed
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 PoE+ - 30 W
Power
- Power Device
- External power adapter
- Voltage Required
- DC 54 V
- Electric Current Required
- 2.4 A
- Power Consumption Operational
- 128.6 Watt
Miscellaneous
- Included Accessories
- Wall mounting kit
- Rack Mounting Kit
- Included
- MTBF
- 2,752,476 hours
- Compliant Standards
- VCCI, BSMI, ICES-003, CB, FCC Part 15, EN 60950-1, LVD, KC, EAC, RCM
- Localisation
- Europe
Dimensions & Weight
- Width
- 23.6 cm
- Depth
- 10.2 cm
- Height
- 2.7 cm
- Weight
- 590 g
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime - response time: next business day , Limited warranty - power supply - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
