Description

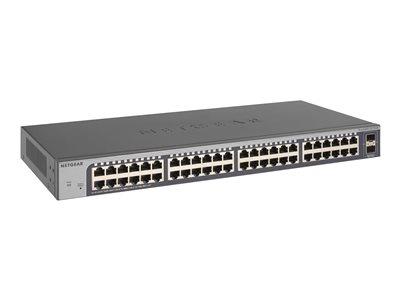

The NETGEAR GS750E ProSafe 48-Port Smart Plus Gigabit Switch meets this growing need by providing fundamental network features that will help optimise performance of business networks.
-
Robust performance
With a bandwidth of 100 Gbps and a packet forwarding rate of 11.9 Mfps, this switch ensures high-speed data transmission and efficient network traffic management, making it ideal for businesses with demanding data needs. -
Comprehensive connectivity
Equipped with 48 10/100/1000 RJ-45 ports and 2 Gigabit SFP ports, the NETGEAR Plus GS750E offers a wide range of connection options for various networking requirements, supporting both copper and fiber connections. -
Advanced networking features
Features such as VLAN support, Quality of Service (QoS), and Link Aggregation enhance network efficiency and data flow, allowing for optimized performance across all connected devices. -
Durable and reliable
Designed for longevity with a mean time between failures (MTBF) of over 1 million hours, coupled with a fanless design for silent operation, this switch is built to last and perform in a variety of environments. -
Easy management
Manageable via HTTP and TFTP, this switch allows for simple setup and remote management, making network configuration and maintenance straightforward and convenient.
Specifications
Summary
- Product Description
- NETGEAR Plus GS750E - switch - 50 ports - smart - rack-mountable
- Device Type
- Switch - 50 ports - smart
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 + 2 x Gigabit SFP
- Performance
- Bandwidth: 100 Gbps , Packet forwarding rate: 11.9 Mfps , Latency (10 Gbps): < 32 µs , Latency (100 Mbps): < 6 µs , Latency (1 Gbps): < 4 µs
- Capacity
- VLANs supported: 4000 , Priority queues per port: 8
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- HTTP, TFTP
- Features
- DHCP support, trunking, VLAN support, IGMP snooping, port mirroring, firmware upgradable, TFTP support, QoS, Jumbo Frames support, fanless, LACP, DHCP client, Energy Efficient Ethernet, loop prevention, Multicast filtering function, ToS, DSCP support, 1.5MB packet buffer, cable test, Link Aggregation, WDRR, Voice VLAN, DoS protection
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
- Power
- AC 120/230 V (50 - 60 Hz) 1 A
- Dimensions (WxDxH)
- 44 cm x 20.4 cm x 4.3 cm
- Weight
- 3.25 kg
- Localisation
- United Kingdom, Europe
- Manufacturer Warranty
- NETGEAR lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 50 ports - smart
- Enclosure Type
- Desktop, rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 + 2 x Gigabit SFP
- Performance
- Bandwidth: 100 Gbps , Packet forwarding rate: 11.9 Mfps , Latency (10 Gbps): < 32 µs , Latency (100 Mbps): < 6 µs , Latency (1 Gbps): < 4 µs
- Capacity
- VLANs supported: 4000 , Priority queues per port: 8
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- HTTP, TFTP
- Features
- DHCP support, trunking, VLAN support, IGMP snooping, port mirroring, firmware upgradable, TFTP support, QoS, Jumbo Frames support, fanless, LACP, DHCP client, Energy Efficient Ethernet, loop prevention, Multicast filtering function, ToS, DSCP support, 1.5MB packet buffer, cable test, Link Aggregation, WDRR, Voice VLAN, DoS protection
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
- Status Indicators
- Port transmission speed, power, link/activity
Expansion / Connectivity
- Interfaces
- 48 x 1000Base-T RJ-45 , 2 x SFP
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
- Electric Current Required
- 1 A
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 1,031,177 hours
- Compliant Standards
- Plug and Play, EN 61000-3-2, ICES-003, EN 61000-3-3, CISPR 22, CB, AS/NZS 60950-1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 61010-1, KC, ANSI C63.4, EAC, CNS 13438, EN 55024:2010, EN 55024 Class A, VCCI V-4/2012.04, VCCI V-3/2015.04
- Localisation
- United Kingdom, Europe
Dimensions & Weight
- Width
- 44 cm
- Depth
- 20.4 cm
- Height
- 4.3 cm
- Weight
- 3.25 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime - response time: next business day , Technical support - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 95% (non-condensing)
