Description
Through an intuitive GUI it provides easy, reliable and affordable connectivity with VLAN, QoS, LAG and IGMP management capabilities. The XS724EM also include the full set of Smart Managed Plus software features such as traffic prioritization and link aggregation.
-
Robust performance
With a fabric throughput of 480 Gbps and forwarding performance capable of handling 240 Mbps with 64-byte packet size, the NETGEAR Plus XS724EM ensures efficient data flow and high-speed connectivity across the network. -
Comprehensive connectivity
Equipped with 24 ports supporting 100/1000/2.5G/5G/10GBase-T and 2 combo 10 Gigabit SFP+ ports, this switch offers versatile connectivity options for a wide range of devices and network requirements. -
Advanced network features
Features such as VLAN support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), and IGMP snooping provide enhanced network management and improved data traffic control. -
Efficient operation
Energy Efficient Ethernet (EEE) and a power consumption of just 150.52 W during operation make the XS724EM an economical choice for energy-conscious environments. -
Durable and reliable
Designed for longevity with an MTBF of 830,493 hours and equipped with 3 fans for optimal cooling, ensuring the switch operates reliably even in demanding conditions.
Specifications
Summary
- Product Description

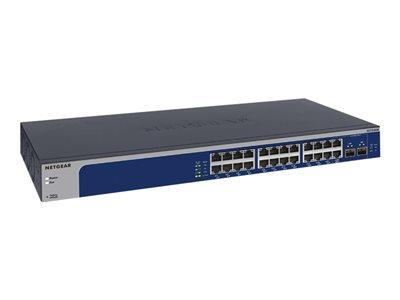

- NETGEAR Plus XS724EM - switch - 24 ports - smart - rack-mountable
- Device Type
- Switch - 24 ports - smart
- Enclosure Type
- Rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 22 x 100/1000/2.5G/5G/10GBase-T + 2 x combo 10 Gigabit SFP+
- Performance
- Fabric throughput: 480 Gbps , Forwarding performance (64-byte packet size): 240 Mbps
- Capacity
- Priority queues: 8 , IGMP multicast groups: 128
- MAC Address Table Size
- 32K entries
- Jumbo Frame Support
- 9000 bytes
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- HTTP, TFTP
- Features
- VLAN support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, QoS, LACP, DHCP client, Energy Efficient Ethernet, loop prevention, Multicast filtering function, CoS, ToS, DSCP support, 3 fans, 3MB packet buffer, cable test, administrator's password, WRR, VLAN Tagging, port trunking
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz
- Power
- AC 120/230 V (50 - 60 Hz)
- Dimensions (WxDxH)
- 44 cm x 20.4 cm x 4.3 cm
- Weight
- 3.72 kg
- Localisation
- Europe
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 24 ports - smart
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 22 x 100/1000/2.5G/5G/10GBase-T + 2 x combo 10 Gigabit SFP+
- Performance
- Fabric throughput: 480 Gbps , Forwarding performance (64-byte packet size): 240 Mbps
- Capacity
- Priority queues: 8 , IGMP multicast groups: 128
- MAC Address Table Size
- 32K entries
- Jumbo Frame Support
- 9000 bytes
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- HTTP, TFTP
- Features
- VLAN support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, QoS, LACP, DHCP client, Energy Efficient Ethernet, loop prevention, Multicast filtering function, CoS, ToS, DSCP support, 3 fans, 3MB packet buffer, cable test, administrator's password, WRR, VLAN Tagging, port trunking
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz
- Status Indicators
- Power, link/activity/speed
Expansion / Connectivity
- Interfaces
- 24 x 100/1000/2.5G/5G/10GBase-T RJ-45 , 2 x 10GBase-X SFP+
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
- Power Consumption Operational
- 150.52 Watt
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 830,493 hours
- Compliant Standards
- UL 60950-1, KC, CNS 13438, EN 55024:2010, FCC CFR47 Part 15 B Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, ANSI C63.4-2014, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, EN 61000-3-2:2014 Class A, CAN/CSA-C22.2 No. 60960-1-07, AS/NZS CISPR32:2013 Class A, EN 6100-3-3:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, VCCI-CISPR 32:2016, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
- Localisation
- Europe
Dimensions & Weight
- Width
- 44 cm
- Depth
- 20.4 cm
- Height
- 4.3 cm
- Weight
- 3.72 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 95% (non-condensing)
