Description
Desktop, Wall-mount and 19-inch Rackmountable
Small Form Factor
Silent Design
Small form factor and silent for quiet operation makes it the ideal switch for noise-sensitive environments.

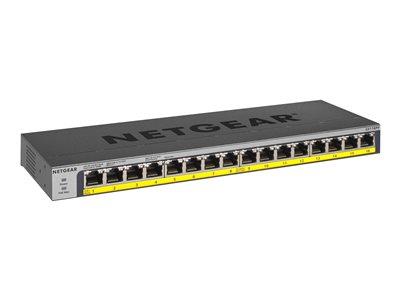

The NETGEAR GS116PP ProSAFE FlexPoE Gigabit Unmanaged Switch helps businesses cost-effectively increase power budget to expand their network. Powered by the industry's first flexible PoE+ integrated technology, you can increase or decrease the PoE budget by simply buying a new power supply, effectively future-proofing small business networks and budgets.
-
Robust performance
With a bandwidth of 32 Gbps, the NETGEAR GS116PP switch ensures efficient handling of network traffic, maintaining optimal performance even in high-demand scenarios. -
Comprehensive connectivity
Equipped with 16 RJ-45 connectors supporting PoE+, this switch offers extensive connectivity options for a wide range of devices, facilitating easy network expansion. -
Versatile installation
The NETGEAR GS116PP is designed for flexibility, supporting desktop, rack-mountable, and wall-mountable setups to fit various spatial requirements and deployment scenarios. -
Efficient power management
With a total PoE budget of 183 W and an external power adapter providing 200 W, this switch efficiently distributes power to connected devices, reducing the need for additional power sources. -
Advanced networking features
Features such as Class of Service (CoS), DiffServ Code Point (DSCP) support, and Jumbo Frames support enhance the network's ability to manage data efficiently, ensuring smooth and reliable data transmission.
Specifications
Summary
- Product Description
- NETGEAR GS116PP - switch - 16 ports - unmanaged - rack-mountable
- Device Type
- Switch - 16 ports - unmanaged
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 16 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 183 W
- Performance
- Bandwidth: 32 Gbps
- MAC Address Table Size
- 4K entries
- Features
- Flow control, full duplex capability, store and forward, WFQ, QoS, Jumbo Frames support, fanless, Energy Efficient Ethernet, 1MB packet buffer, CoS, DSCP support, EEE, WRR
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Power
- DC 54 V
- Dimensions (WxDxH)
- 28.6 cm x 10.2 cm x 2.7 cm
- Weight
- 880 g
- Localisation
- United Kingdom, Europe
- Manufacturer Warranty
- NETGEAR lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 16 ports - unmanaged
- Enclosure Type
- Desktop, rack-mountable, wall-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 16 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 183 W
- Performance
- Bandwidth: 32 Gbps
- MAC Address Table Size
- 4K entries
- Features
- Flow control, full duplex capability, store and forward, WFQ, QoS, Jumbo Frames support, fanless, Energy Efficient Ethernet, 1MB packet buffer, CoS, DSCP support, EEE, WRR
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Status Indicators
- Power, PoE, link/activity/speed
Expansion / Connectivity
- Interfaces
- 16 x 1000Base-T RJ-45 PoE+
Power
- Power Device
- External power adapter
- Power Provided
- 200 Watt
- Voltage Required
- DC 54 V
Miscellaneous
- Included Accessories
- Wall mounting kit
- Rack Mounting Kit
- Included
- MTBF
- 2,088,514 hours
- Compliant Standards
- UL, cUL, UL 60950-1 Second Edition, CNS 13438, EN 61000-3-3:2013, EN 55024:2010, FCC CFR47 Part 15 B Class A, KN32, KN35, EN 55032:2012+AC:2013 Class A, CNS 14336-1, ANSI C63.4-2014, CAN/CSA C22.2 No. 60950-1-07 Second Edition 2014, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2015 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
- Localisation
- United Kingdom, Europe
Dimensions & Weight
- Width
- 28.6 cm
- Depth
- 10.2 cm
- Height
- 2.7 cm
- Weight
- 880 g
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime - response time: next business day , Technical support - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 95% (non-condensing)
