Description
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business's needs, whether in the hospitality, catering, education or retail domains. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: unlike other high power PoE switches on the market, the GS510TPP supports quiet desktop operation or rack mounting with a maximum of 32 dB at full power and 25°C (77°F) ambient.
-
Efficient power management
With a generous PoE budget of 75 W, the NETGEAR Smart GS510TLP switch supports multiple powered devices efficiently, making it ideal for various network setups. -
Advanced security features
Equipped with Access Control List (ACL) support, 802.1x authentication, and DoS attack prevention, this switch ensures a secure network environment, protecting against unauthorized access and various types of cyber threats. -
High-speed connectivity
Featuring 8 RJ-45 connectors for 1000Base-T and 2 SFP ports for 1000Base-X, the switch offers high-speed connections and enhanced flexibility for network configuration. -
Smart network management
This manageable switch comes with Layer 3 Lite advanced switching, Quality of Service (QoS), and VLAN support, providing a smart solution for traffic prioritization and network segmentation. -
Energy-efficient design
The fanless design not only ensures silent operation but also contributes to energy savings, supported by the ENERGY STAR compliance.
Specifications
Summary
- Product Description

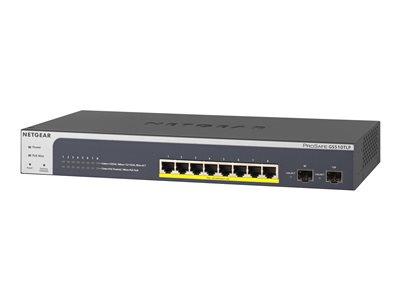

- NETGEAR Smart GS510TLP - switch - 8 ports - smart - rack-mountable
- Device Type
- Switch - 8 ports - L3 Lite - smart
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 75 W
- Performance
- Fabric throughput: 20 Gbps , Packet forwarding rate: 14.88 Mpps
- Capacity
- Virtual interfaces (VLANs): 256 , ACL: 100 , IPv4 routes (static): 32 , IPv6 routes (static): 32 , IGMP snooping groups: 512 , Priority queues: 8 , Layer 3 multicast groups: 512
- MAC Address Table Size
- 16000 entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
- Features
- Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, ACL support, QoS, MLD snooping, fanless, LLDP support, DHCP relay, LACP, DHCP client, Energy Efficient Ethernet, MVR, dual firmware images, NAC, 802.1x authentication, DSCP support, 1.5MB packet buffer, ICMP Router Discovery Protocol (IRDP), IGMP querier
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
- Power
- AC 120/230 V (50 - 60 Hz)
- Dimensions (WxDxH)
- 32.8 cm x 16.9 cm x 4.3 cm
- Weight
- 1.74 kg
- Localisation
- Europe
- Manufacturer Warranty
- NETGEAR lifetime warranty
- Designed For
- NETGEAR WAC740 4 x 4
Detailed Specification
General
- Device Type
- Switch - 8 ports - L3 Lite - smart
- Enclosure Type
- Desktop, rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 75 W
- Performance
- Fabric throughput: 20 Gbps , Packet forwarding rate: 14.88 Mpps
- Capacity
- Virtual interfaces (VLANs): 256 , ACL: 100 , IPv4 routes (static): 32 , IPv6 routes (static): 32 , IGMP snooping groups: 512 , Priority queues: 8 , Layer 3 multicast groups: 512
- MAC Address Table Size
- 16000 entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
- Features
- Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, ACL support, QoS, MLD snooping, fanless, LLDP support, DHCP relay, LACP, DHCP client, Energy Efficient Ethernet, MVR, dual firmware images, NAC, 802.1x authentication, DSCP support, 1.5MB packet buffer, ICMP Router Discovery Protocol (IRDP), IGMP querier
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
- Processor
- Cortex-A9: 400 MHz
- RAM
- 512 MB
- Flash Memory
- 256 MB
- Status Indicators
- Port transmission speed, power, link/activity
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 PoE+ , 2 x 1000Base-X SFP
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
- Power Consumption Operational
- 101 Watt
Miscellaneous
- Included Accessories
- 4 foot pads
- Rack Mounting Kit
- Included
- MTBF
- 913,368 hours
- Compliant Standards
- CISPR 22 Class A, EN 60950, UL 1950, EN55024, CSA 22.2 No. 950, AS/NZS 60950-1, CCC, FCC Part 15 A, C-Tick Class A, SCC, VCCI Class A, AS/NZS CISPR22:2009+A1:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 55022 Class A, FCC CFR47 Part 15 B Class A, ICES-003 issue 6 Class A, IEC 950, ANSI C63.4-2014, cUL 950, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
- Localisation
- Europe
Dimensions & Weight
- Width
- 32.8 cm
- Depth
- 16.9 cm
- Height
- 4.3 cm
- Weight
- 1.74 kg
Manufacturer Warranty
- Service & Support
- NETGEAR lifetime warranty
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
Compatibility Information
- Designed For
- NETGEAR WAC740 4 x 4
