Description
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business's needs, whether in the hospitality, catering, education or retail domains. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: unlike other high power PoE switches on the market, the GS510TPP supports quiet desktop operation or rack mounting with a maximum of 32 dB at full power and 25°C (77°F) ambient.
-
Robust security
Equipped with Access Control List (ACL) support, 802.1x authentication, and DoS attack prevention, this switch ensures a secure network environment, protecting against unauthorized access and various types of cyber threats. -
High-capacity networking
With a fabric throughput of 20 Gbps and a MAC Address Table Size of 16,000 entries, the NETGEAR Smart GS510TPP is designed to handle high volumes of traffic, ensuring smooth data transmission across the network. -
Efficient power management
Featuring a generous PoE budget of 190 W and Energy Efficient Ethernet, this switch optimizes power usage across all connected devices, reducing energy costs and supporting a greener operation. -
Advanced connectivity
Offers 8 PoE+ ports with 10/100/1000 (PoE+) and 2 SFP (mini-GBIC) ports, providing versatile connection options for a wide range of devices and ensuring high-speed network performance. -
Easy management and setup
Manageable via HTTP and HTTPS, this smart switch supports remote management protocols, making setup and management straightforward for network administrators.
Specifications
Summary
- Product Description

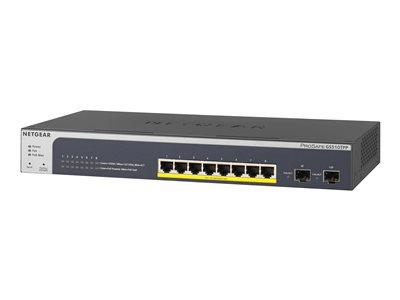

- NETGEAR Smart GS510TPP - switch - 8 ports - smart - rack-mountable
- Device Type
- Switch - 8 ports - L3 Lite - smart
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 190 W
- Performance
- Fabric throughput: 20 Gbps , Packet forwarding rate: 14.88 Mpps
- Capacity
- Virtual interfaces (VLANs): 256 , ACL: 100 , IPv4 routes (static): 32 , IPv6 routes (static): 32 , IGMP snooping groups: 512 , Priority queues: 8 , Layer 3 multicast groups: 512
- MAC Address Table Size
- 16000 entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
- Features
- Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, ACL support, QoS, MLD snooping, LLDP support, DHCP relay, LACP, DHCP client, Energy Efficient Ethernet, MVR, dual firmware images, NAC, 802.1x authentication, DSCP support, 1.5MB packet buffer, ICMP Router Discovery Protocol (IRDP), IGMP querier, 1 fan
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Power
- AC 120/230 V (50 - 60 Hz)
- Dimensions (WxDxH)
- 32.8 cm x 16.9 cm x 4.3 cm
- Weight
- 1.83 kg
- Localisation
- Europe
- Manufacturer Warranty
- NETGEAR lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports - L3 Lite - smart
- Enclosure Type
- Desktop, rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 190 W
- Performance
- Fabric throughput: 20 Gbps , Packet forwarding rate: 14.88 Mpps
- Capacity
- Virtual interfaces (VLANs): 256 , ACL: 100 , IPv4 routes (static): 32 , IPv6 routes (static): 32 , IGMP snooping groups: 512 , Priority queues: 8 , Layer 3 multicast groups: 512
- MAC Address Table Size
- 16000 entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
- Encryption Algorithm
- TLS 1.0, SSL 3.0
- Authentication Method
- RADIUS, TACACS+
- Features
- Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, ACL support, QoS, MLD snooping, LLDP support, DHCP relay, LACP, DHCP client, Energy Efficient Ethernet, MVR, dual firmware images, NAC, 802.1x authentication, DSCP support, 1.5MB packet buffer, ICMP Router Discovery Protocol (IRDP), IGMP querier, 1 fan
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Processor
- Cortex-A9: 400 MHz
- RAM
- 512 MB
- Flash Memory
- 256 MB
- Status Indicators
- Port transmission speed, power, link/activity, fan
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 PoE+ , 2 x 1000Base-X SFP
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
- Power Consumption Operational
- 225 Watt
Miscellaneous
- Included Accessories
- 4 foot pads
- Rack Mounting Kit
- Included
- MTBF
- 1,509,979 hours
- Compliant Standards
- CISPR 22 Class A, EN 60950, UL 1950, EN55024, CSA 22.2 No. 950, AS/NZS 60950-1, CCC, FCC Part 15 A, C-Tick Class A, SCC, VCCI Class A, AS/NZS CISPR22:2009+A1:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 55022 Class A, FCC CFR47 Part 15 B Class A, ICES-003 issue 6 Class A, IEC 950, ANSI C63.4-2014, cUL 950, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
- Localisation
- Europe
Dimensions & Weight
- Width
- 32.8 cm
- Depth
- 16.9 cm
- Height
- 4.3 cm
- Weight
- 1.83 kg
Manufacturer Warranty
- Service & Support
- NETGEAR lifetime warranty
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
