Description
The NEC P603X brings brightness of up to 5,500 ANSI lumen to your meeting and learning spaces. Enjoy smooth operation over five years with low maintenance, long lamp life and the NEC patented LCD panel dust protection. The NEC P603X is the perfect replacement device for preceding models because it offers the same mounting options and with its wide zoom range, it is easy to adjust the projection to the existing screen. LCD technology delivers natural colors with a high contrast whilst the wide horizontal and vertical lens shift offers broad flexibility in installation. With its low power consumption, the NEC P603X offers a low total cost of ownership (TCO) and helps you to reduce your carbon footprint.
For more efficient and collaborative meetings and lectures, add NEC's MultiPresenter option to share content from up to 16 devices! No additional power source is needed as the stick is powered via the USB slot.
-
Robust connectivity
Equipped with a wide range of interfaces including HDMI, VGA, composite video, and USB, this projector ensures seamless connection to a variety of multimedia devices. -
High-quality audio
Features an integrated 20 W speaker, delivering clear and powerful sound for an immersive audio experience in presentations and multimedia applications. -
Enhanced image clarity
With a brightness of 6000 lumens and a dynamic contrast ratio of 20,000:1, the projector produces vivid and sharp images, even in well-lit environments. -
Flexible installation
Offers extensive keystone correction and lens shift capabilities, allowing for versatile placement without compromising image quality. -
Eco-friendly design
Incorporates energy-saving features such as Eco Mode, Auto Power Off, and a carbon savings meter, promoting efficient power use and environmental sustainability.
Specifications
Summary
- Product Description
- NEC P603X - 3LCD projector
- Device Type
- 3LCD projector
- Brightness
- 6000 lumens
- Contrast Ratio
- 20000:1 (dynamic)
- Resolution
- XGA (1024 x 768)
- Native Aspect Ratio
- 4:3
- Lens Shift Direction
- Horizontal, vertical
- Bulb type
- 330 Watt
- Bulb life cycle
- Up to 4000 hours - normal mode , Up to 8000 hours - economic mode
- Video Input
- RGB, composite video (SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60, NTSC 3.58)
- Speakers
- Speaker(s) - integrated
- Power
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 414 Watt
- Dimensions (WxDxH)
- 42 cm x 32.2 cm x 13.3 cm
- Weight
- 4.7 kg
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- 3LCD projector
- Networking
- Ethernet
Projector
- Brightness
- 6000 lumens
- Contrast Ratio
- 20000:1 (dynamic)
- Image Size
- 76 cm - 762 cm
- Projection Distance
- 0.8 m - 13.5 m
- Throw Ratio
- 1.3 - 2.2:1
- Resolution
- XGA - XGA (1024 x 768) (native) / 1920 x 1200 (resized)
- Native Aspect Ratio
- 4:3
- Max Sync Rate (V x H)
- 120 Hz x 100 kHz
- Bulb type
- 330 Watt
- Bulb life cycle
- Up to 4000 hours - normal mode , Up to 8000 hours - economic mode
- Controls & Adjustments
- Pincushion, keystone correction, lens shift dial (horizontal), lens shift dial (vertical)
- Features
- High-bandwidth Digital Content Protection System (HDCP), wall colour correction, DICOM Simulation Mode, Direct Power Off, Auto Power Off, built-in test pattern, auto power on, Crestron Connected, Carbon Savings Meter, Eco Mode, Virtual Remote
Lens
- Focus Type
- Manual
- Lens Aperture
- F/1.7-2.2
- Zoom Type
- Manual
- Zoom Factor
- 1.7x
- Keystone Correction Direction
- Horizontal, vertical
- Vertical Keystone Correction
- -30 / +30
- Horizontal Keystone Correction
- -20 / +20
- Lens Shift Direction
- Horizontal, vertical
- Vertical Lens Shift
- 0% / 55%
- Horizontal Lens Shift
- 15% / 15%
Video Input
- TV System
- SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60, NTSC 3.58
- Analogue video Signal
- RGB, composite video
- Video Interfaces
- VGA, HDMI, composite video
Speakers
- Type
- Integrated
- Sound Output Mode
- Mono
- Output Power / Channel
- 20 Watt
- Speakers
- 1 x mixed channel

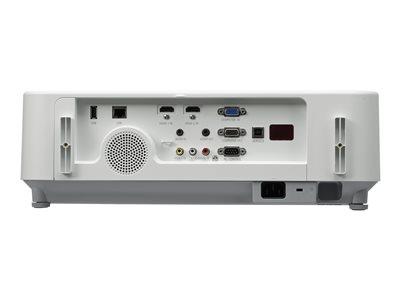

Expansion / Connectivity
- Interfaces
- 1 x VGA input - 15 pin HD D-Sub (HD-15) , 2 x HDMI input - 19 pin HDMI Type A , 1 x composite video input - RCA , 1 x audio line-in - RCA x 2 , 1 x audio line-in - mini-phone stereo 3.5 mm , 1 x VGA output - 15 pin HD D-Sub (HD-15) , 1 x audio line-out - mini-phone stereo 3.5 mm , 1 x serial RS-232 - 9 pin D-Sub (DB-9) , 1 x network - RJ-45 , 1 x USB - 4 pin USB Type B , 1 x USB 2.0 - 4 pin USB Type A
Miscellaneous
- Included Accessories
- Wireless remote control
- Cables Included
- 1 x VGA cable
- Security Features
- Security lock slot (cable lock sold separately), keypad lock
- Compliant Standards
- TUV GS, RoHS, ERP
Power
- Power Source
- AC
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 414 Watt
- Power Consumption Stand by
- 0.2 Watt
Software / System Requirements
- Software Included
- NaViSet Administrator 2
Dimensions & Weight
- Width
- 42 cm
- Depth
- 32.2 cm
- Height
- 13.3 cm
- Weight
- 4.7 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years , Limited warranty - lamp - 6 months / 1000 hours
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 20 - 80% (non-condensing)
- Sound Emission
- 37 dB
- Sound Emission (Economic Mode)
- 34 dB
