MSI X370 GAMING PRO CARBON AM4 DDR4 PCIe M.2 USB3.1

MSI X370 GAMING PRO CARBON AM4 DDR4 PCIe M.2 USB3.1

Review this product
Quicklinx: CQZTWS00 Mfr#: X370 GAMING PRO CARBON
Discontinued

Description

X370 GAMING PRO CARBON
Exceptional by Design

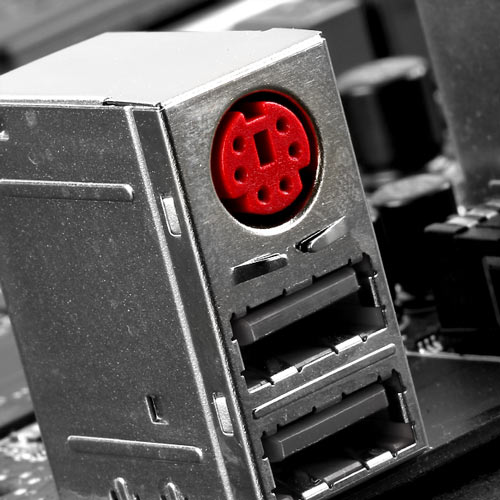

1GAMING Device Port
2Lightning USB 3.1 Gen2
3VR Boost
4Intel® GAMING LAN
5Golden audio jacks with S/PDIF

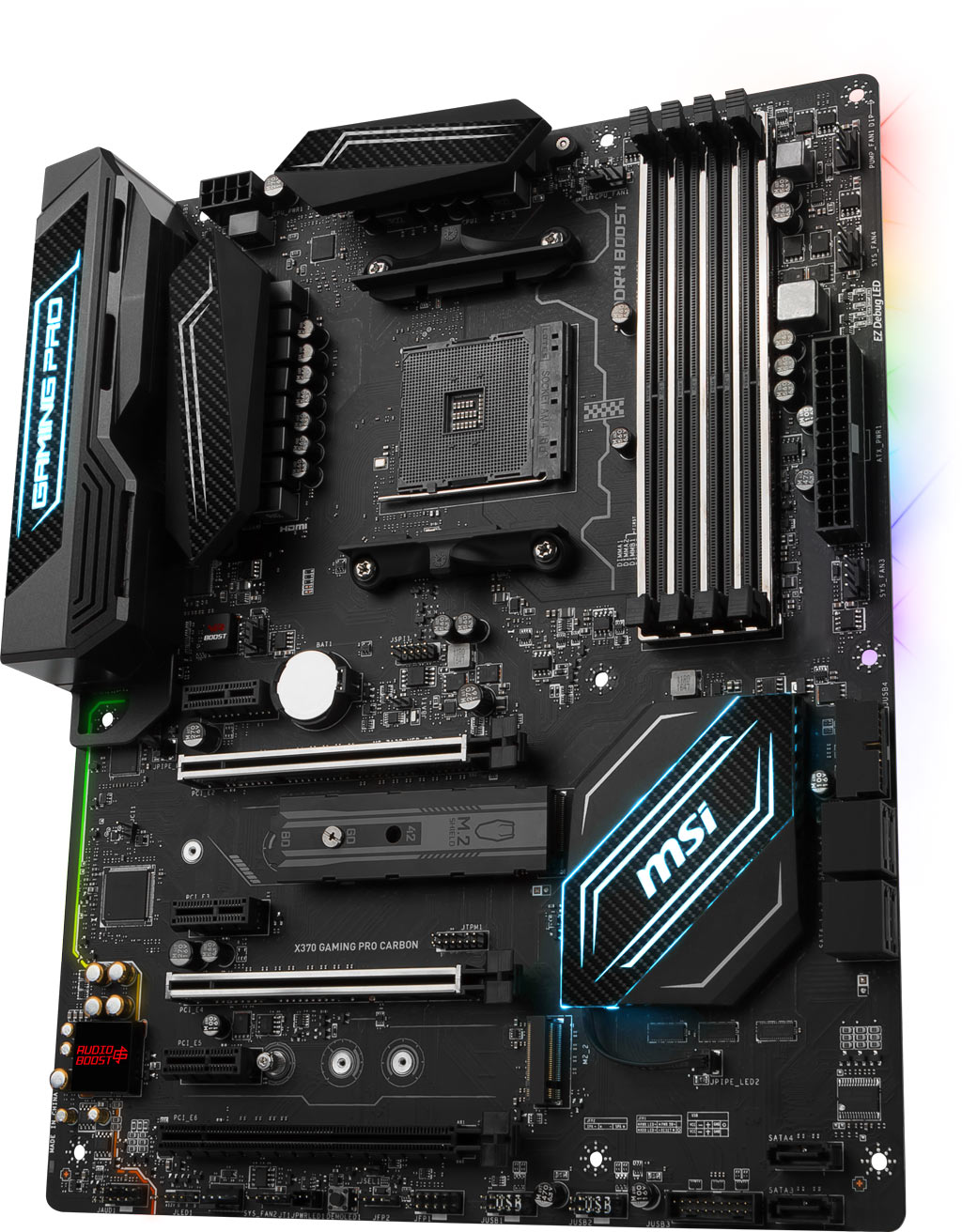

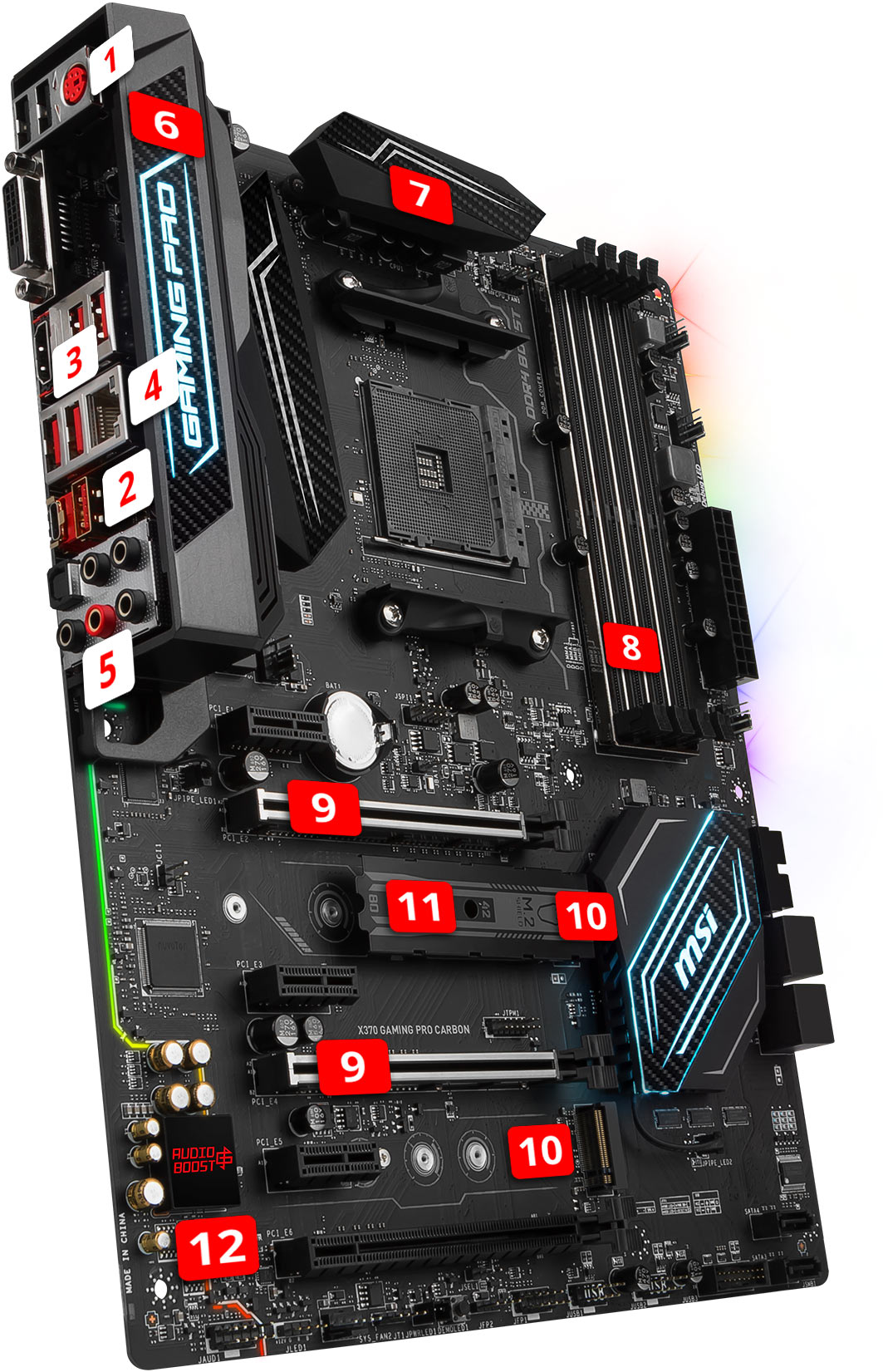

MSI X370 GAMING Pro Carbon overview
6Mystic Light RGB IO cover & heatsink
Change up to 16.8 million colors & 17 LED effects
7Gaming heatsinks with CARBON
Leading heatsink design, for maximum cooling
8DDR4 Boost with Steel Armor
Optimized traces and isolated memory circuitry
9PCI-E Steel Armor
Protecting VGA cards against bending and EMI
102x M.2
NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4
11M.2 Shield
Thermal enhancement for M.2 devices for best performance
12Audio Boost 4 with amplifier
Optimized gaming audio using best components, with Nahimic 2

Personalize your Gaming Rig
Customize and set up your own color scheme with RGB Mystic Light. Select any of the colors from the palette using your smartphone or the MSI Gaming App to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!

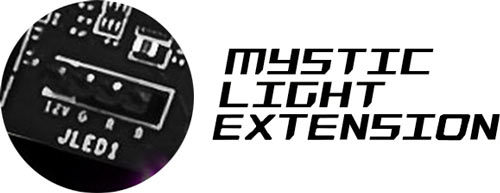

Mystic Light logoMystic Light Extension

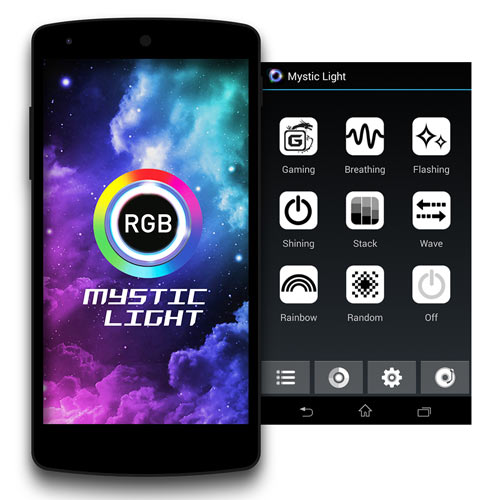

  Mystic Light App
Customize colorsCustomize effectsMystic Light App
MSI X370 GAMING Pro Carbon Mystic Light
Works with certified Mystic Light Sync products:
Mystic Light Sync logoMystic Light vendors

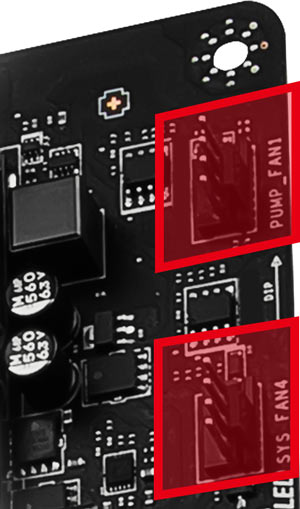

Fully controllable fan headers
MSI FAN headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
 Fan Headers
Fan controlFan Headers

Your in-game advantage
Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.

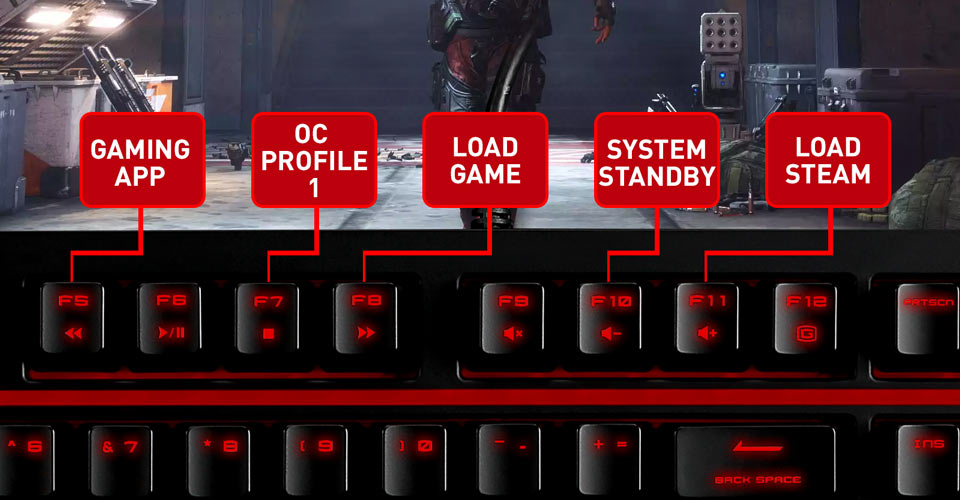

Gaming HotkeyGaming Device port
Gaming HotkeyGaming Device port
Multi-GPU1 second overclocking

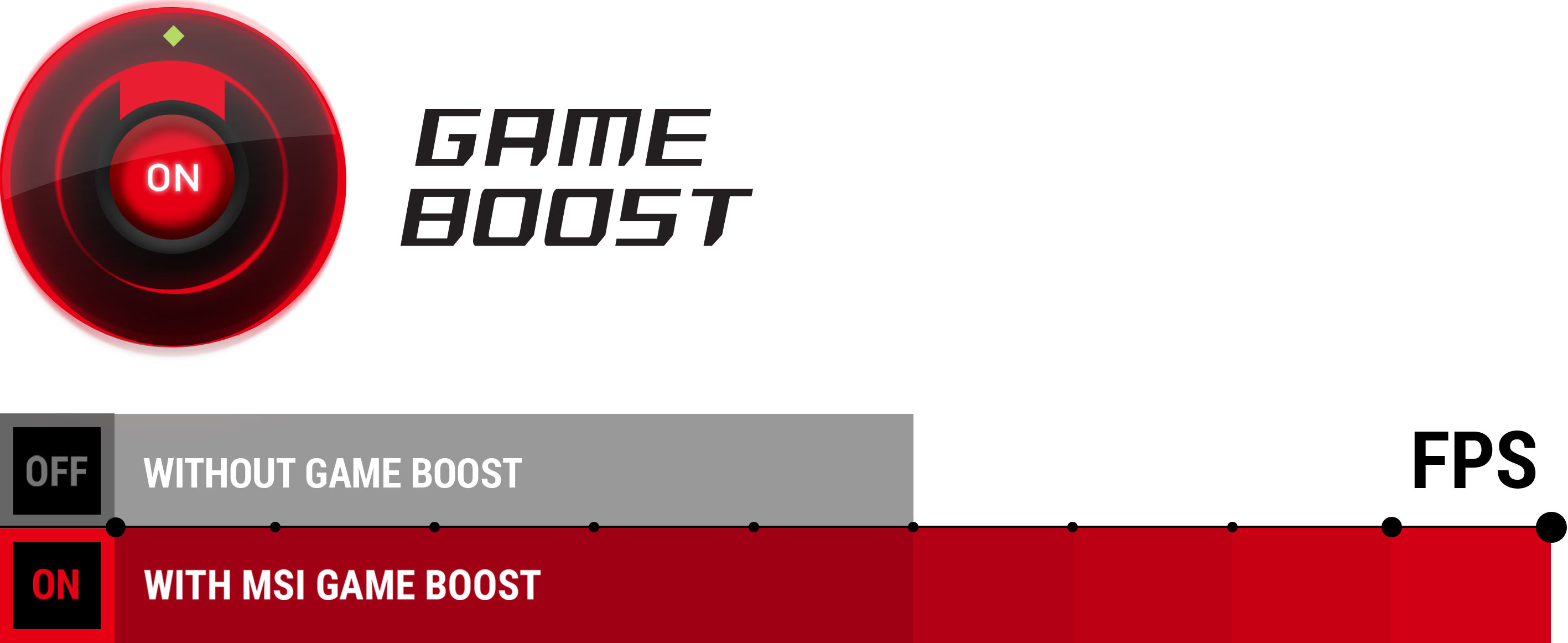

Multi GPUGame Boost 1 second overclocking

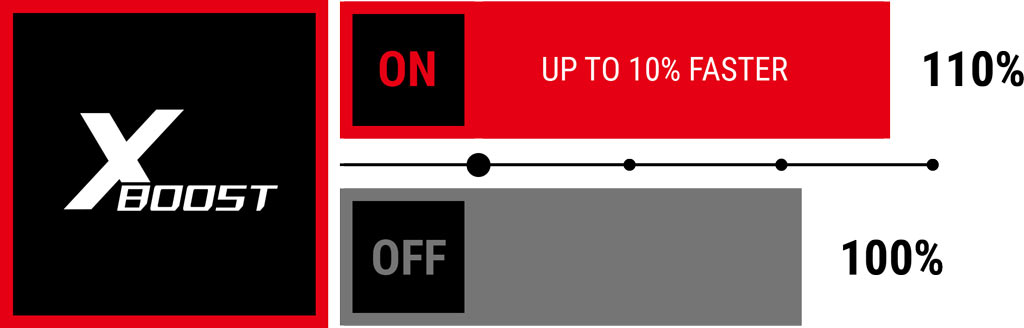

X-Boost your Storage Performance
When enabled, X-Boost auto-detects and optimizes your SSDs to keep your system fast and maximize storage performance, making sure you reach the battlefield even quicker or saving you a lot of time when transferring data.
X-boost performance

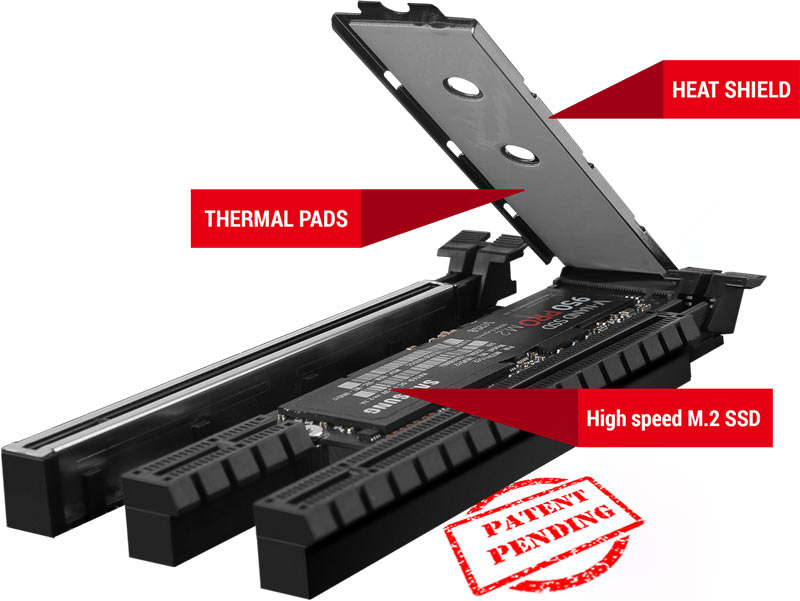

M.2 shield delivers best SSD performance
Cooling your NMVe SSD delays throttling which results In higher overall performance. Additionally, M.2 Shield protects your M.2 device and makes it look cool.
M.2 Shield
M.2 Shield cool graph
M.2 Shield cool graph bar

Immerse yourself into Virtual Worlds
Want the best of the best VR experience without any compromise? Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid, smooth and realistic experience in which content truly comes alive.

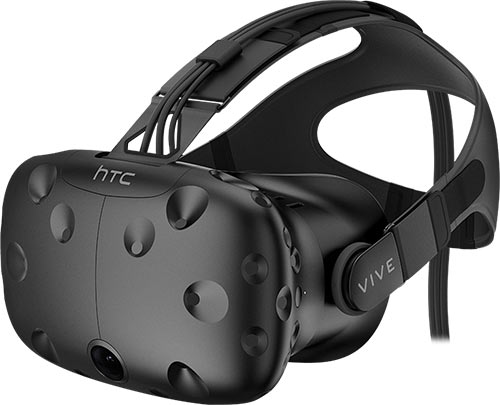

VR ReadyHTC Vive
HTC Vive

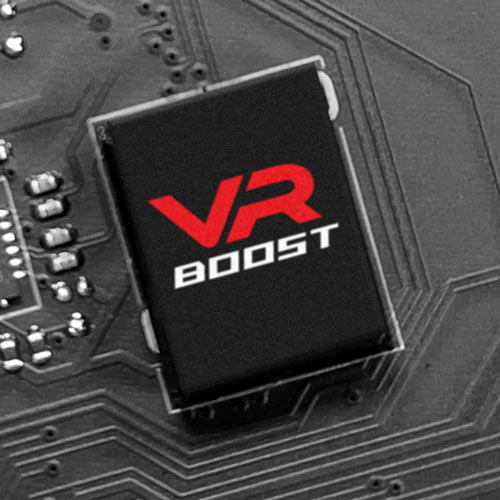

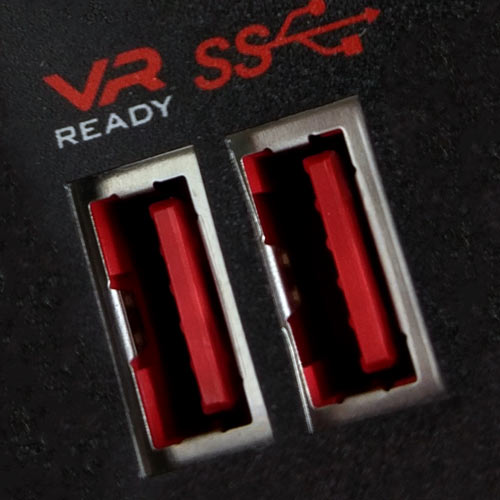

VR BoostArrowVR ports
Pull yourself in the game with VR Boost
Traditional USB ports can suffer signal drops, significantly impacting performance of connected devices. VR Boost, only on MSI, is a smart chip that ensures a clean and strong signal to a VR optimized USB port, giving you an enjoyable VR experience.

Amplify your Game with Audio Boost 4
Like a dedicated sound card Audio Boost 4, powered by Nahimic, offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

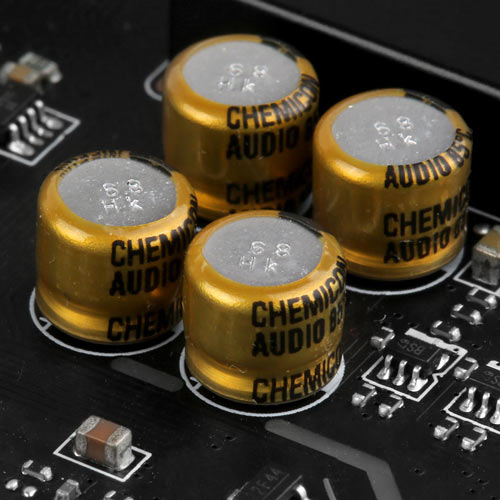

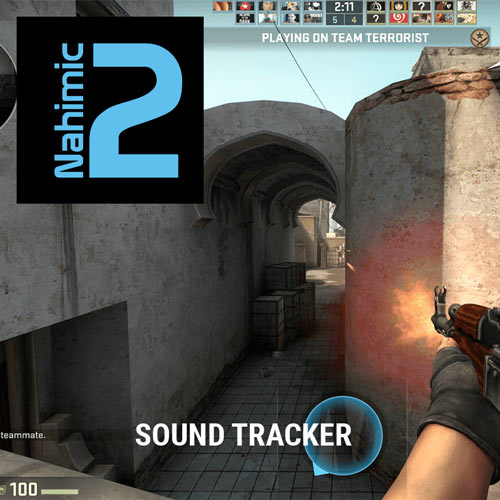

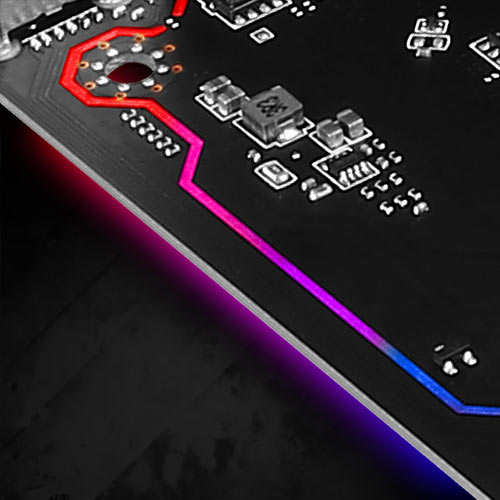

Isolated Audio with RGB LED LineChemi-Con Audio capacitorsNahimic 2 Sound Tracker
Isolated audio design with Isolated Audio with RGB LED LineChemi-con Audio CapacitorsNahimic Sound Tracker
Audio Boost 4 logo

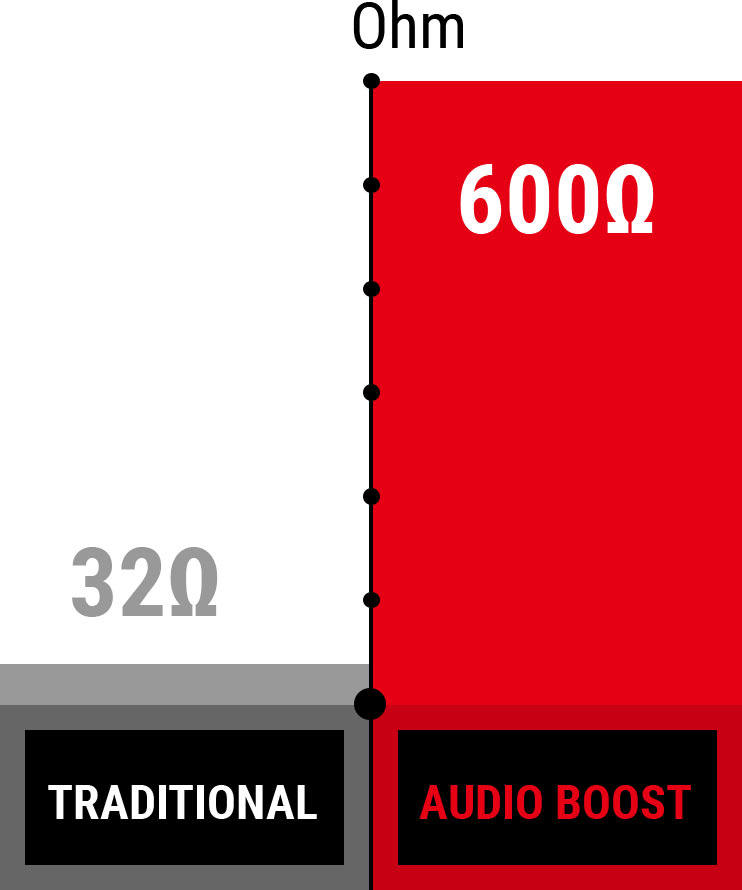

Audio Boost Ohm chart

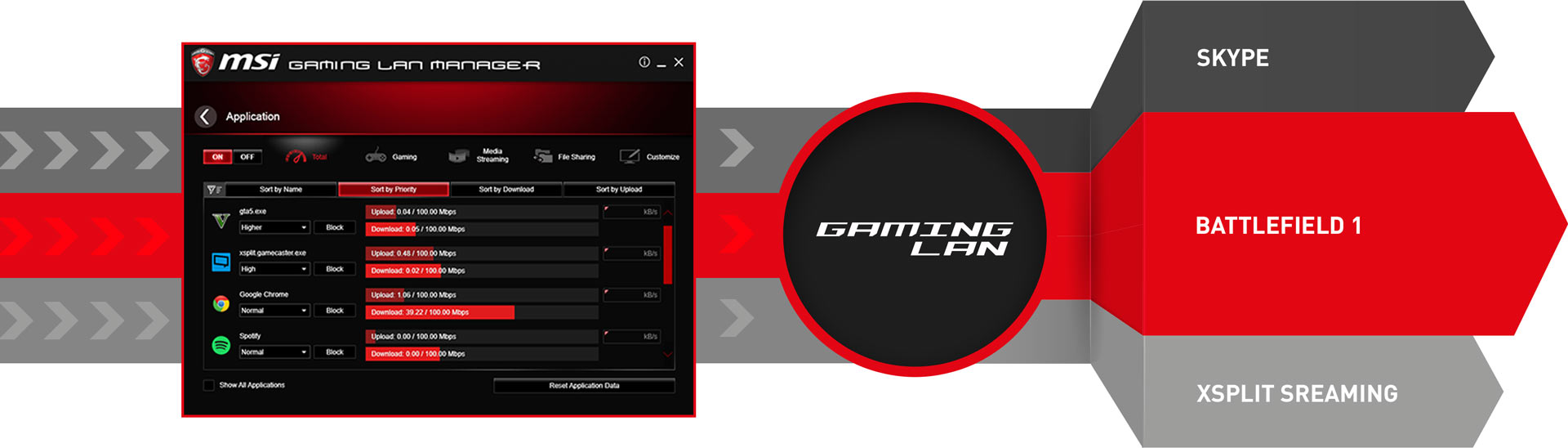

Dominate the Game with the Lowest Latency
Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.
Powered by:
Intel Intelligent Networking
Optimize Killer Gaming LAN

Unmatched Memory Performance
MSI motherboards are crammed with features to fuel your gaming rig’s memory with more speed, higher overclockability and increased stability.
Memory Signal PurityMSIMSI captionOthersMSI caption
DDR4 Boost performance

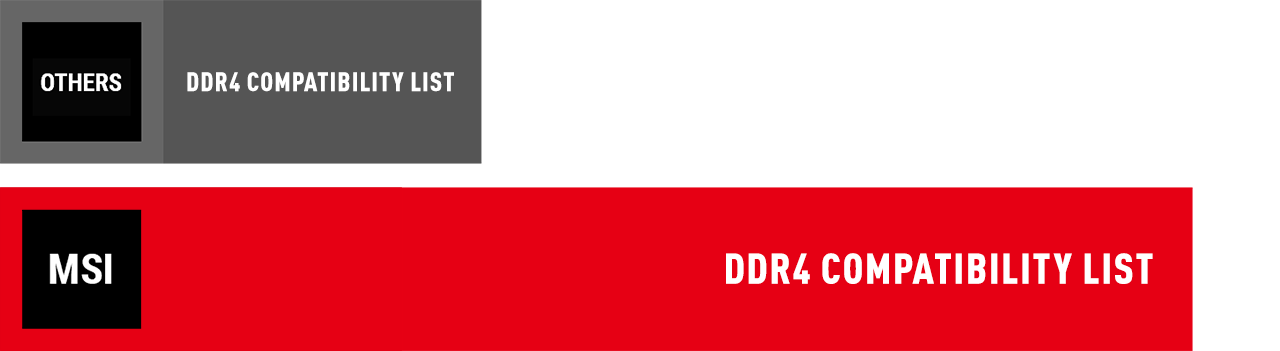

Best compatibility
Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing during games.
Best compatibility chart

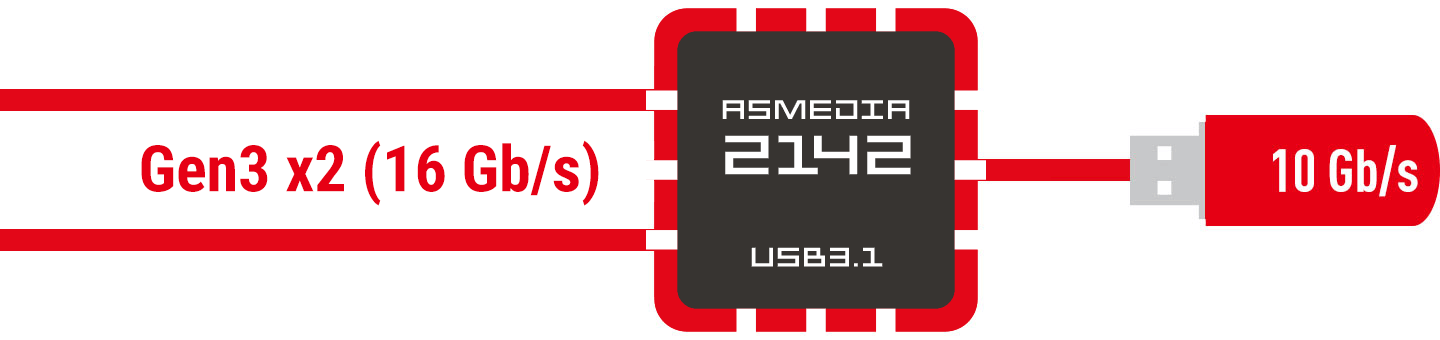

Maximize your USB Device performance
Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!
No strengthening others

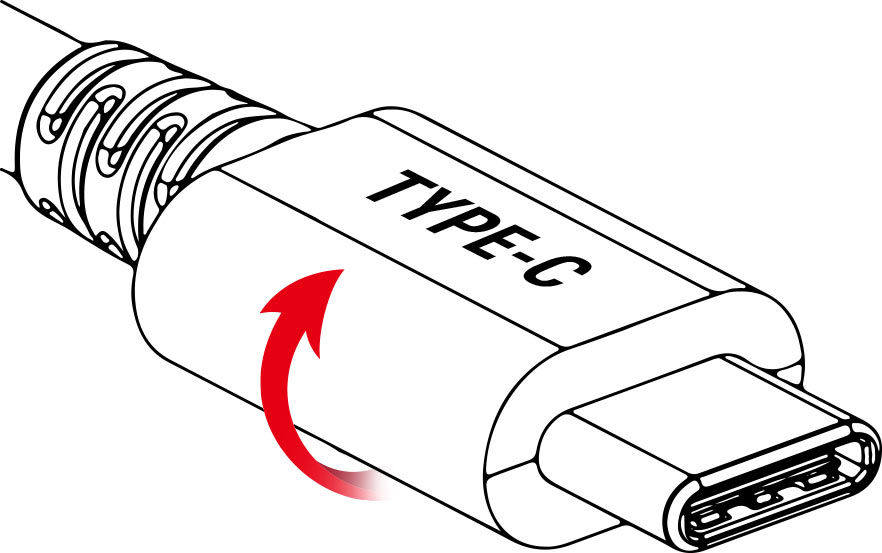

Reversible connector



 Double Bandwidth USB 3.1
Lightning USB logoLightning USB

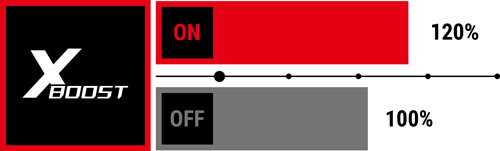

Up to 20% faster with XBoost
XBoost performance

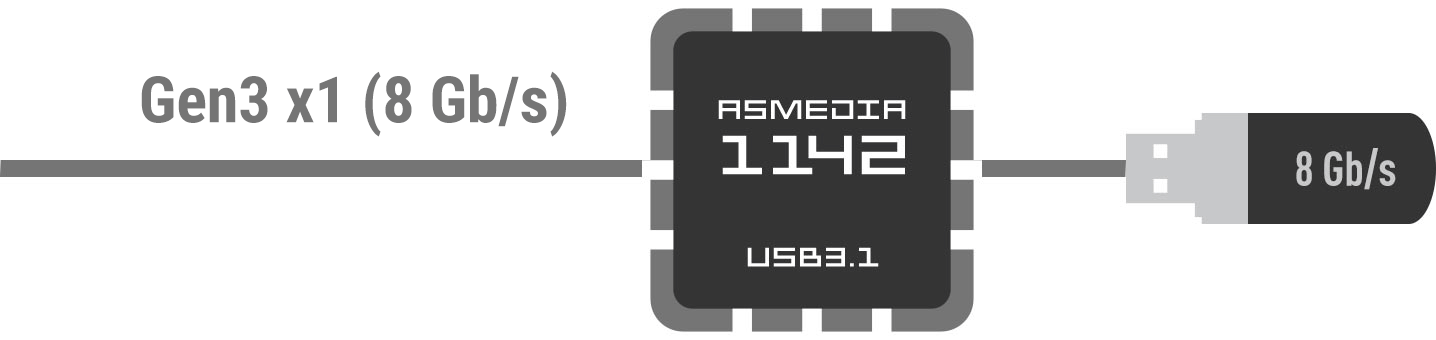

Others USB 3.1 Gen2Others USB



Built on everlasting quality
Only the finest quality components and latest innovations are used. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.

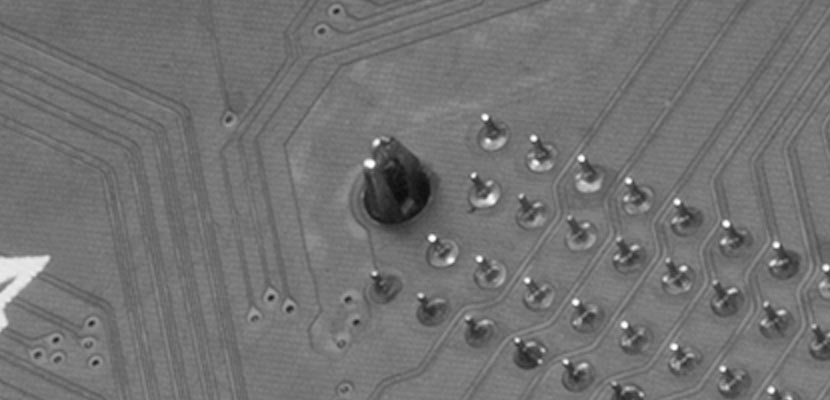

No strengthening others

Others

No strengthening

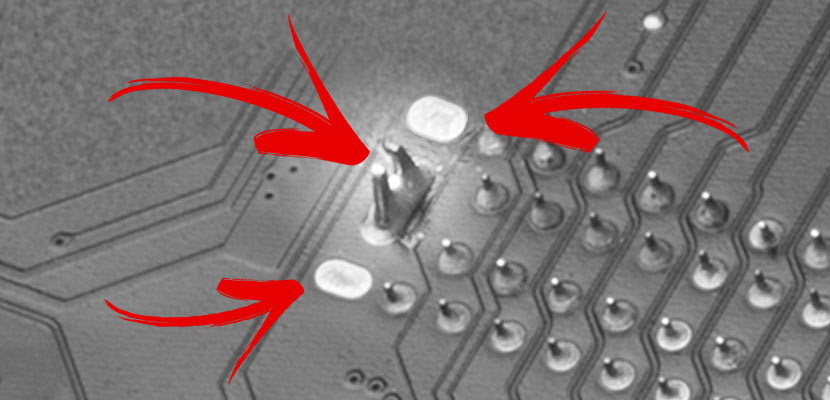

Strengthening-steel-armor Steel Armor

MSI Steel armor

Reinforced, heavy soldered connections

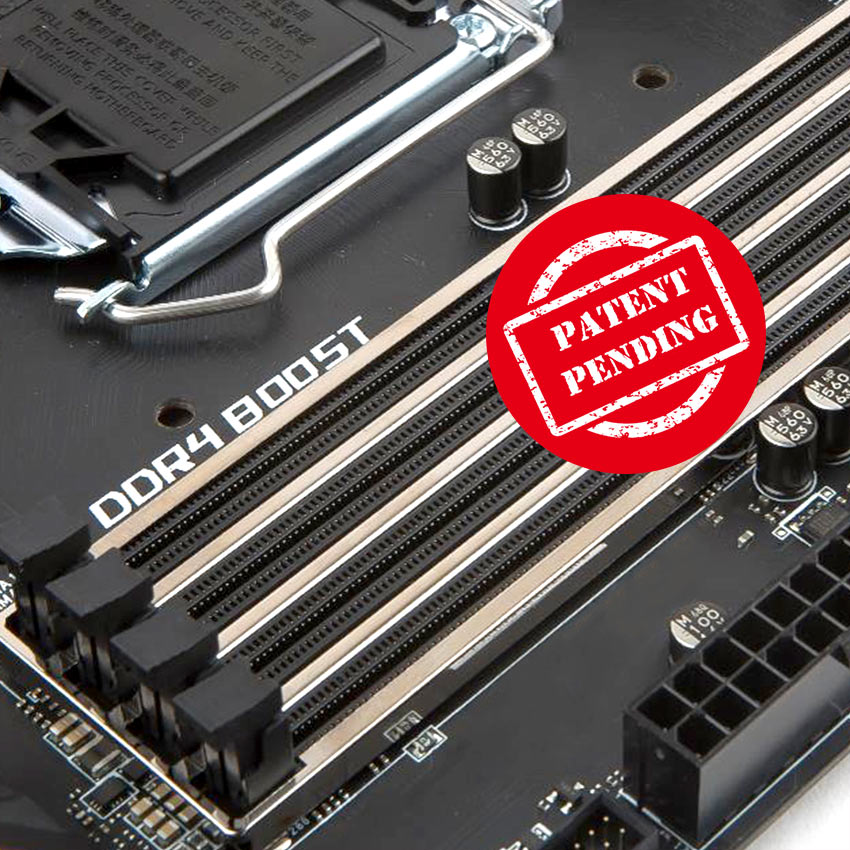

DDR4 Steel Armor
DDR4 Steel Armor

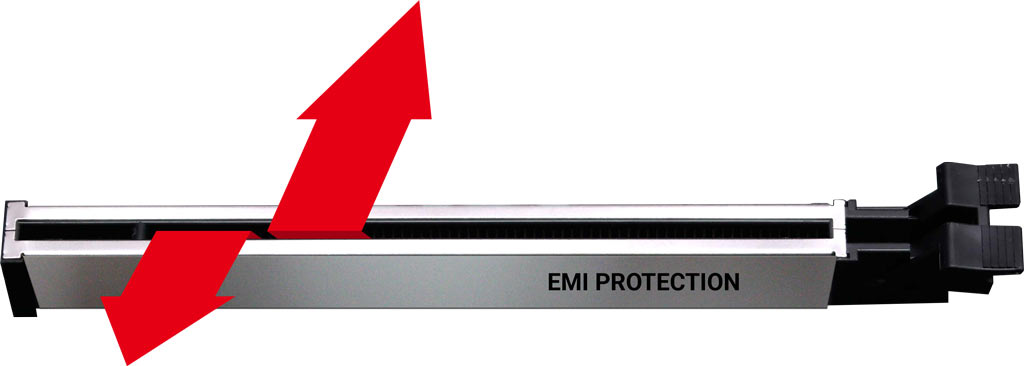

Reinforced Steel PCIe Slot,
Protects Against EMI
Steel Armor slot

  • Stay cool while gaming

    Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.
  • Your in-game advantage

    Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.
  • Be the first on the battlefield

    This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.
  • Immerse yourself into virtual worlds

    Integrating the very best of cutting edge technologies on MSI hardware provides a smooth VR ride. Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid and realistic experience in which content truly comes alive.
  • Sound that pulls you into the game

    Get the most immersive sound experience when gaming. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most exciting gameplay.

Specifications

Summary

Product Description
MSI X370 GAMING PRO CARBON - motherboard - ATX - Socket AM4 - AMD X370
Product Type
Motherboard - ATX
Chipset Type
AMD X370
Processor Socket
1 x Socket AM4
Compatible Processors
Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon)
Max RAM Size
64 GB
RAM Supported
4 DIMM slots - DDR4 unbuffered
Storage Ports
6 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports
USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 1 x USB-C Gen 2 + 1 x USB 3.1 Gen 2 + 4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (4 x USB 3.1 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-channel)
LAN
Gigabit Ethernet
Manufacturer Warranty
3 years warranty


Detail

General

Product Type
Motherboard - ATX
Chipset Type
AMD X370
Processor Socket
Socket AM4
Max Processors Qty
1
Compatible Processors
Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon)

Supported RAM

Max Size
64 GB
Technology
DDR4
Bus Clock
2400 MHz, 1866 MHz, 2133 MHz, 2933 MHz (O.C.), 2667 MHz (O.C.), 3200 MHz (O.C.)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture

Audio

Type
HD Audio (8-channel)
Audio Codec
Realtek ALC1220
Compliant Standards
High Definition Audio

LAN

Network Controller
Intel I211-AT
Network Interfaces
Gigabit Ethernet

Expansion / Connectivity

Expansion Slots
1 x CPU , 4 x DIMM 288-pin , 2 x PCIe 3.0 x16 (x16/x0, x8/x8 mode (with AMD Ryzen CPU); x8/x0 mode (with AMD 7th Generation A-series/Athlon CPU)) , 3 x PCIe 2.0 x1 , 1 x PCIe 2.0 x16 (x4 mode)
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 , SATA-600 / PCIe 3.0 -connectors: 1 x M.2 , SATA-600 / PCIe -connectors: 1 x M.2
Interfaces
1 x LAN (Gigabit Ethernet) , 4 x USB 3.1 Gen 1 , 1 x PS/2 keyboard / mouse , 1 x audio line-in - mini-jack , 1 x audio line-out - mini-jack , 1 x microphone - mini-jack , 1 x TOSLINK , 1 x USB-C Gen2 , 1 x USB 3.1 Gen 2 , 1 x HDMI , 1 x audio line-out (center/subwoofer) - mini-jack , 1 x audio line-out (rear) - mini-jack , 2 x USB 2.0 , 1 x DVI-D
Internal Interfaces
4 x USB 2.0 - header , 4 x USB 3.1 Gen 1 - header , 1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Features
MSI ClickBIOS 5
Hardware Features
NVIDIA 2-way SLI Technology Support, AMD CrossFireX technology support, AMD 3-way CrossFireX technology support, MSI Military Class IV, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, MSI Mystic Light, MSI Steel Armor, Game Boost, LAN Protect, MSI Audio Boost 4, Nahimic 2 Sound Technology

Miscellaneous

Software Included
RAMdisk, MSI Gaming App, MSI Gaming Hotkey, MSI Gaming LAN Manager, MSI X-BOOST
Compliant Standards
WHQL
Width
30.5 cm
Depth
24.4 cm

Manufacturer Warranty

Service & Support
Limited warranty - 3 years
