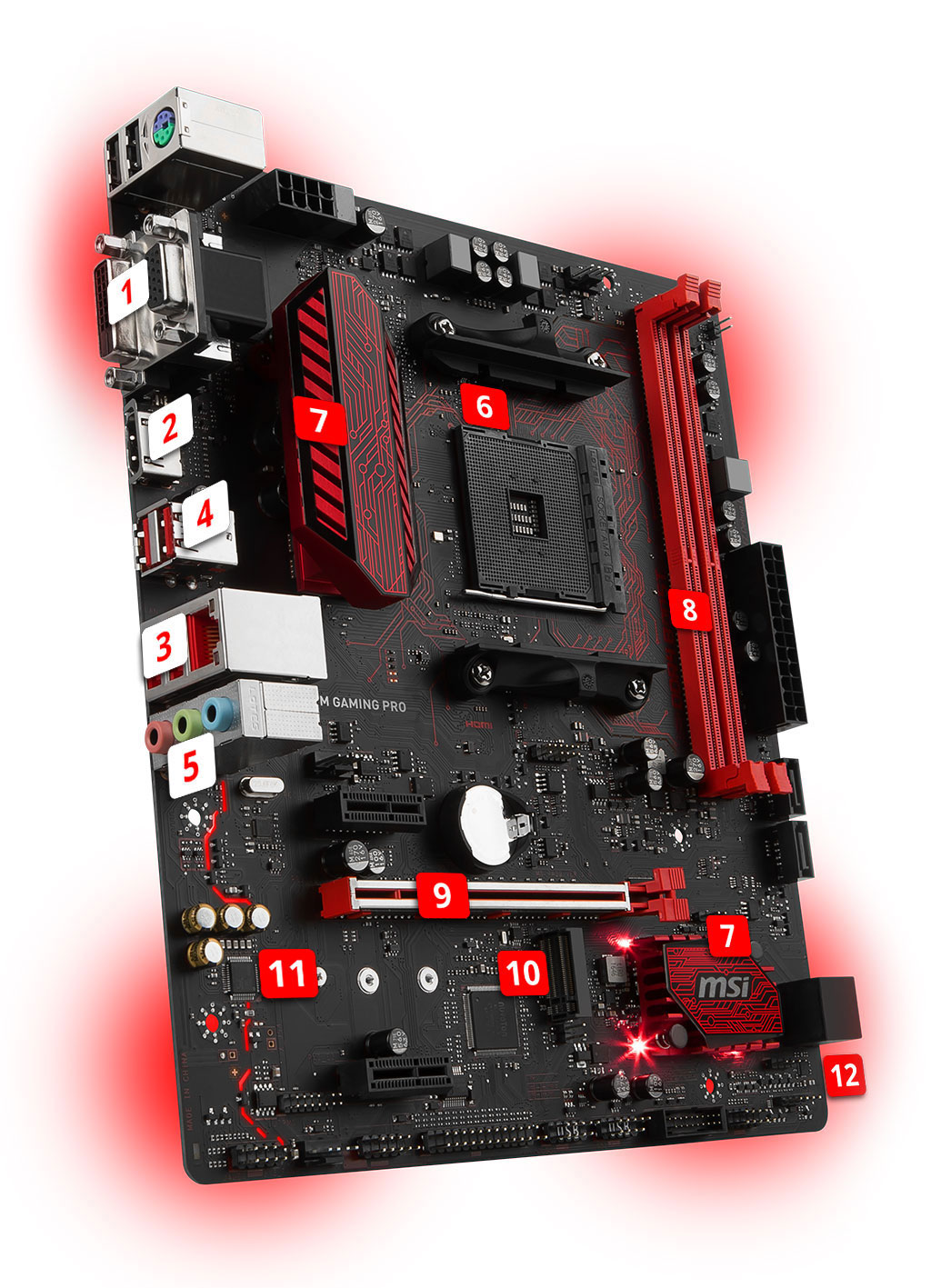

MSI B350M GAMING PRO AM4 DDR4 PCIe M.2 USB3.1
Description
| ||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||
| |||||||||
| |||||||||

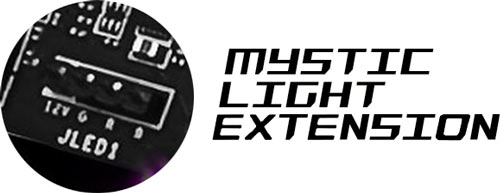

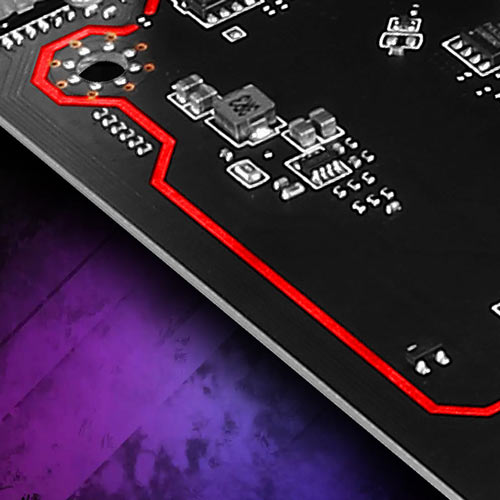

| Works with certified Mystic Light Sync products: | |||||||||
| |||||||||
| |||||
| |||||
| |||||||
| |||||||
| |||
| |||
|
| |||||
|
| |||||||||||||
| |||
 | |||
| |||||||||||
| |||||||||||
| |||
| |||
|
| ||||||||
|
| ||||||||
-

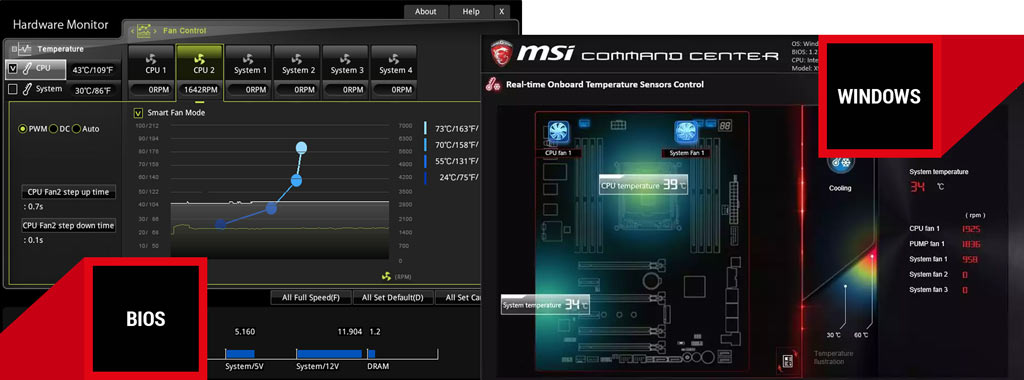

Stay cool while gaming

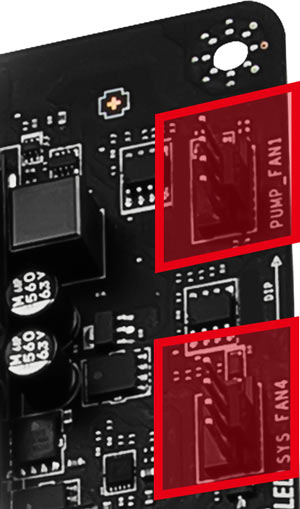

Cooling your PC is essential for reliable performance. This motherboard has enough fan headers with full control to allow you to cool your system any way you want. -
Your in-game advantage
Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills. -
Be the first in the battlefield

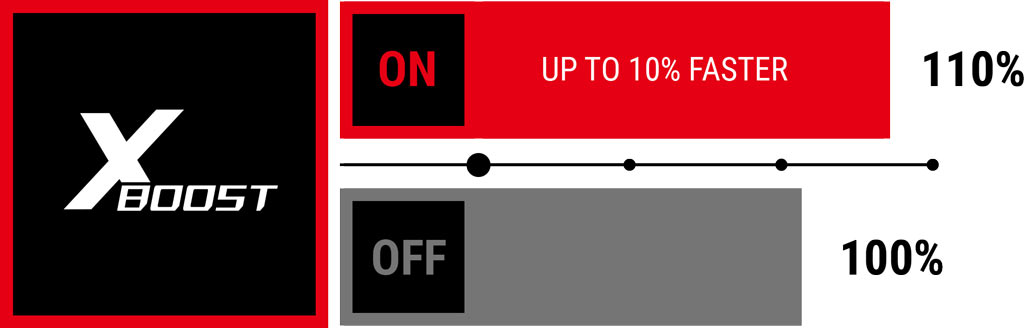

This MSI GAMING motherboard supports many storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies. -

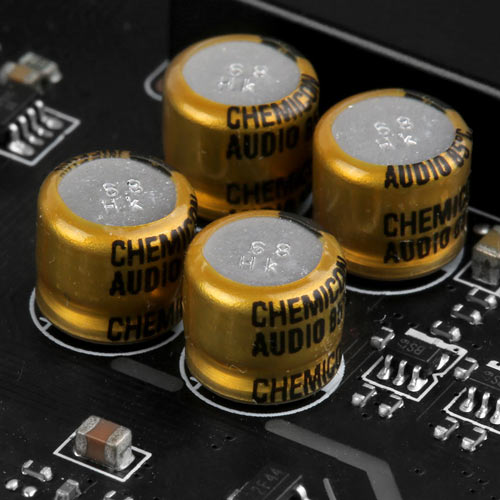

Sound that pulls you into the game

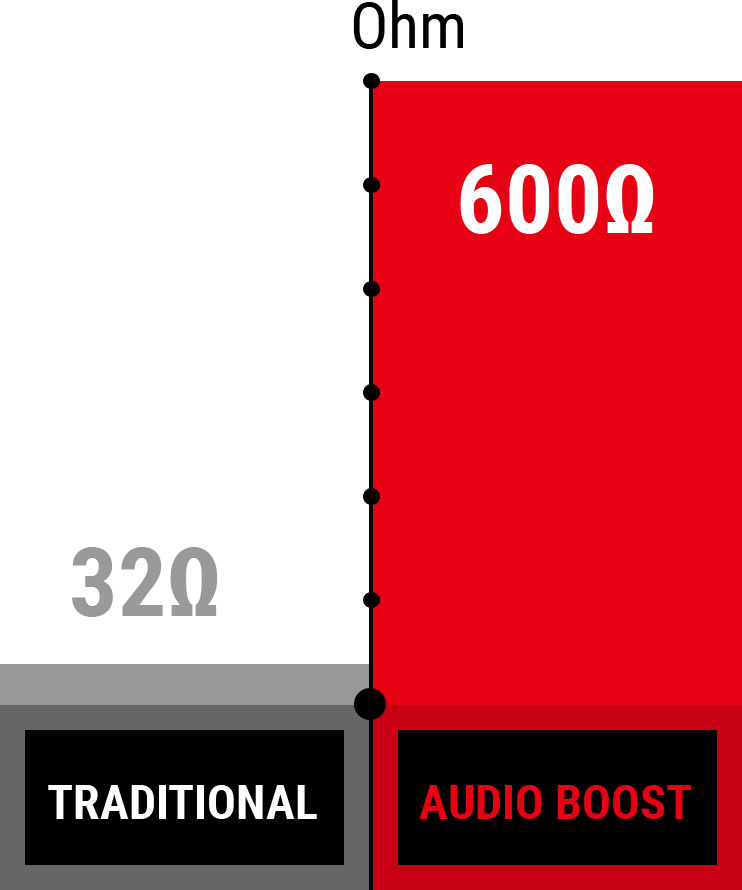

Get an immersive sound experience when gaming. MSI Audio Boost delivers high-sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create exciting gameplay. -

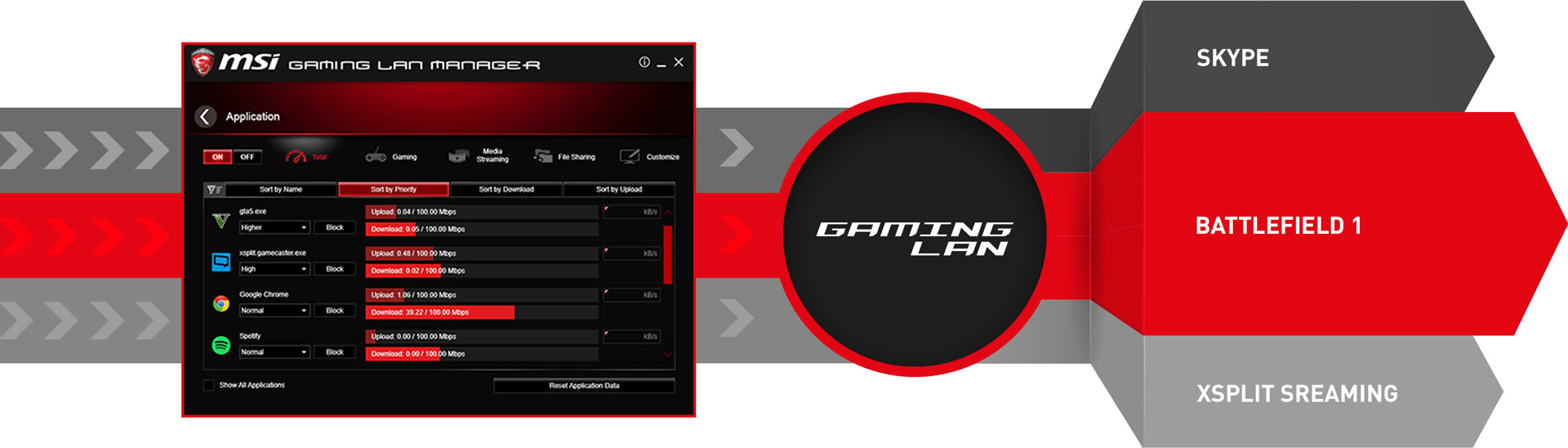

Dominate the game with low latency
Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring high-quality components tuned to deliver a great online gaming experience without lag. -

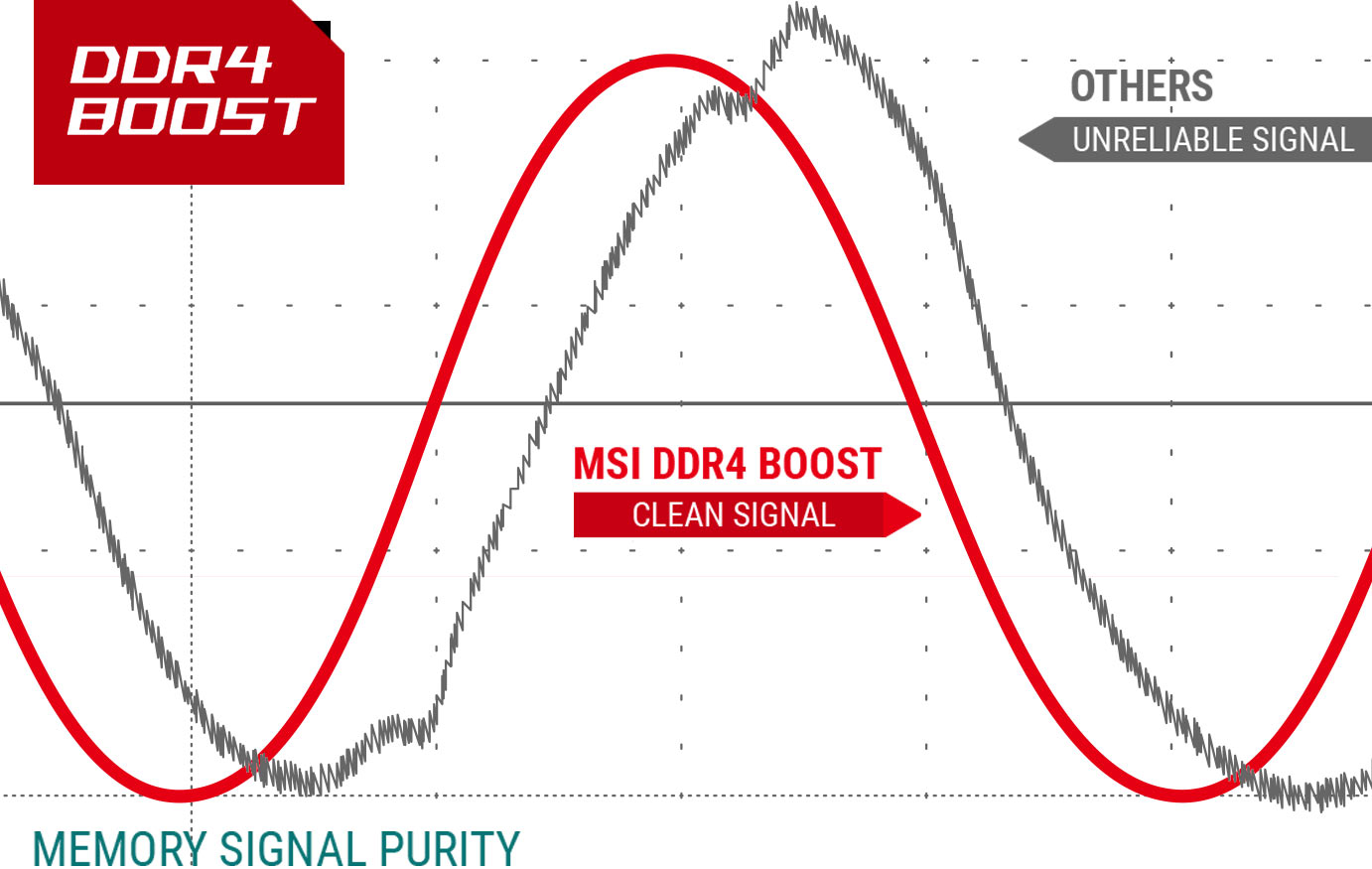

Amazing memory performance
MSI motherboards are crammed with features to fuel your gaming rig's memory with more speed and increased stability.
Specifications
Summary
- Product Description
- MSI B350M GAMING PRO - motherboard - micro ATX - Socket AM4 - AMD B350 FCH
- Product Type
- Motherboard - micro ATX
- Chipset Type
- AMD B350 FCH
- Processor Socket
- 1 x Socket AM4
- Compatible Processors
- Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon)
- Max RAM Size
- 32 GB
- RAM Supported
- 2 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered
- Storage Ports
- 4 x SATA-600 (RAID), 1 x M.2
- USB / FireWire Ports
- 4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 4 x USB 2.0 via headers)
- Audio
- HD Audio (8-channel)
- LAN
- Gigabit Ethernet
Detailed Specification
General
- Product Type
- Motherboard - micro ATX
- Chipset Type
- AMD B350 FCH
- Processor Socket
- Socket AM4
- Max Processors Qty
- 1
- Compatible Processors
- Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon)
Supported RAM
- Max Size
- 32 GB
- Technology
- DDR4
- Bus Clock
- 2400 MHz, 1866 MHz, 2133 MHz, 2933 MHz (O.C.), 2667 MHz (O.C.), 3200 MHz (O.C.)
- Supported RAM Integrity Check
- Non-ECC, ECC (operate in non-ECC mode)
- Registered or Buffered
- Unbuffered
- Features
- Dual channel memory architecture, supported ECC modules operate in non-ECC mode
Audio
- Type
- HD Audio (8-channel)
- Audio Codec
- Realtek ALC887
- Compliant Standards
- High Definition Audio
LAN
- Network Controller
- Realtek RTL8111H
- Network Interfaces
- Gigabit Ethernet
Expansion / Connectivity
- Expansion Slots
- 1 x CPU , 2 x DIMM 288-pin , 1 x PCIe 3.0 x16 (x16 mode (with AMD Ryzen CPU); x8 mode (with AMD 7th Generation A-series/Athlon CPU)) , 2 x PCIe 2.0 x1
- Storage Interfaces
- SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 , SATA-600 / PCIe 3.0 -connectors: 1 x M.2
- Interfaces
- 1 x LAN (Gigabit Ethernet) , 1 x PS/2 keyboard / mouse , 1 x audio line-in - mini-jack , 1 x audio line-out - mini-jack , 1 x microphone - mini-jack , 1 x VGA , 1 x DVI-D , 1 x HDMI , 4 x USB 3.1 Gen 1 , 2 x USB 2.0
- Internal Interfaces
- 4 x USB 2.0 - header , 2 x USB 3.1 Gen 1 - header , 1 x serial - header , 1 x parallel - header , 1 x audio - header
- Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
Features
- BIOS Features
- MSI ClickBIOS 5
- Hardware Features

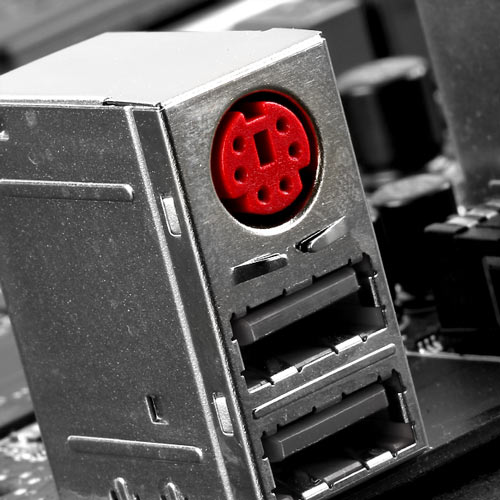

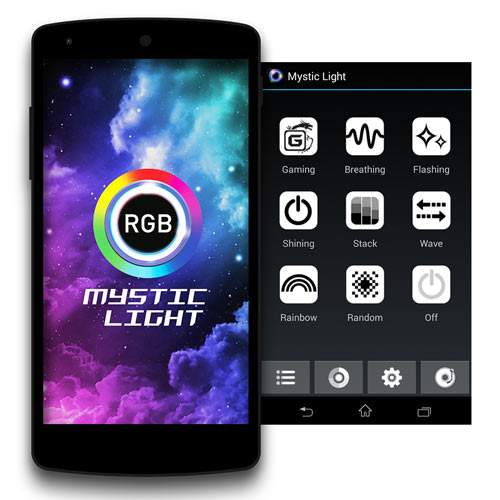

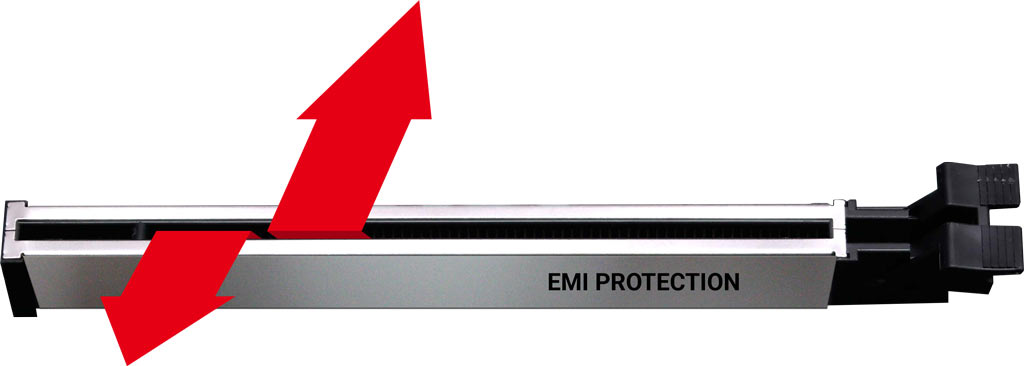

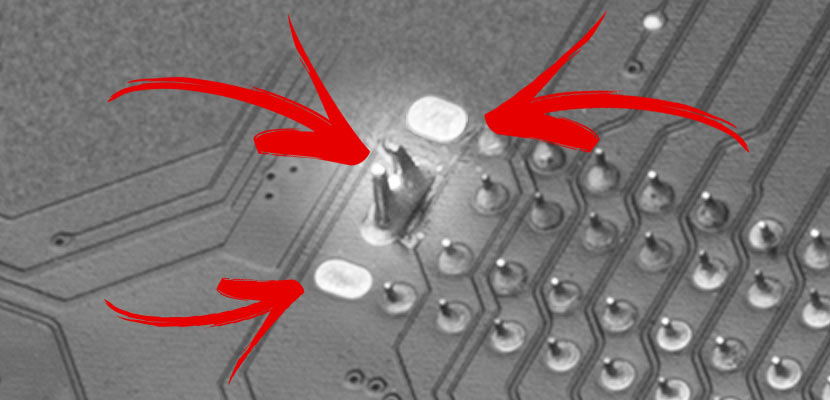

- MSI Military Class IV, MSI Audio Boost, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, MSI Mystic Light, MSI Steel Armor, Game Boost, LAN Protect
Miscellaneous
- Software Included

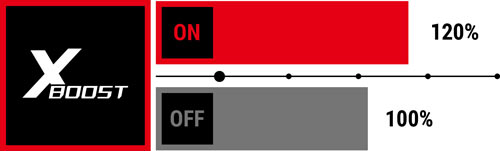

- RAMdisk, MSI Gaming Hotkey, MSI Gaming LAN Manager, MSI X-BOOST
- Compliant Standards
- WHQL
- Width
- 24.4 cm
- Depth
- 21 cm
