Specifications
Summary
- Product Description

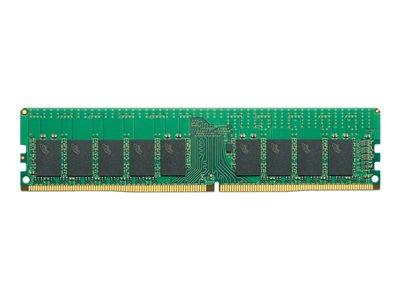

- Micron - DDR4 - module - 16 GB - DIMM 288-pin - 2933 MHz / PC4-23400 - registered with parity
- Product Type
- Memory module
- Capacity
- 16 GB
- Memory Type
- DDR4 SDRAM - DIMM 288-pin
- Upgrade Type
- Generic
- Data Integrity Check
- ECC
- Speed
- 2933 MHz (PC4-23400)
- Latency Timings
- CL21 (21-21-21)
- Features
- Dual rank, On-Die Termination (ODT), Serial Presence Detect (SPD), sixteen banks, Low-power auto self refresh (LPASR), registered with parity
- Voltage
- 1.2 V
- Lead Plating
- Gold
Detailed Specification
General
- Capacity
- 16 GB
- Upgrade Type
- Generic
- Width
- 133 mm
- Depth
- 3.9 mm
- Height
- 31.3 mm
Memory
- Type
- DRAM memory module
- Technology
- DDR4 SDRAM
- Form Factor
- DIMM 288-pin
- Module Height (inch)
- 1.23
- Speed
- 2933 MHz (PC4-23400)
- Latency Timings
- CL21 (21-21-21)
- Data Integrity Check
- ECC
- Features
- Dual rank, On-Die Termination (ODT), Serial Presence Detect (SPD), sixteen banks, Low-power auto self refresh (LPASR), registered with parity
- Module Configuration
- 2048 x 72
- Chips Organization
- 1024 x 8
- Voltage
- 1.2 V
- Lead Plating
- Gold
Miscellaneous
- Compliant Standards
- RoHS, halogen-free
