Description

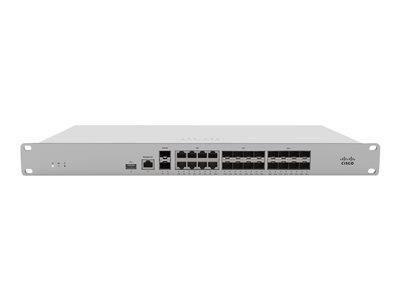

The Meraki MX250 is a cloud-managed network security appliance designed for large brand and campus networks. It is able to provide high-bandwidth, secure, and easy to manage connectivity. Packed with layer 7 application firewalling and performance features like traffic shaping, VPN, SD-WAN capabilities, IPS and advanced malware protection, the MX250 is ideal for reducing overall IT cost while enhancing network reliability. With two 10G SFP+ dedicated uplink ports, and a variety of 1G and 10G LAN ports, MX250 is an ideal UTM solution for large branches, offices and campus environments.
-
Feature-rich unified threat management capabilities
Flow-based protection engine. Identity-based security policies and application management. -
Intelligent site-to-site VPN
Automatic VPN route generation using IKE/IPsec setup. VPN path selection and support for application-layer performance profiles to ensure prioritization of the applications types that matter.
Specifications
Summary
- Product Description
- Cisco Meraki MX250 Cloud Managed - security appliance
- Device Type
- Security appliance
- Form Factor
- Rack-mountable
- Data Link Protocol
- Gigabit Ethernet
- Performance
- Firewall throughput: 4 Gbps , VPN throughput: 1 Gbps
- Capacity
- VPN tunnels (site-to-site):
- Power
- AC 120/230 V (50/60 Hz)
- Power Redundancy
- Yes
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Security appliance
Networking
- Form Factor
- Rack-mountable
- Connectivity Technology
- Wired
- Data Link Protocol
- Gigabit Ethernet
- Network / Transport Protocol
- TCP/IP, DHCP, IPSec
- Remote Management Protocol
- HTTP
- Performance
- Firewall throughput: 4 Gbps , VPN throughput: 1 Gbps
- Capacity
- VPN tunnels (site-to-site):
- Features
- Network monitoring, DMZ port, DHCP support, NAT support, VPN support, VLAN support, manageable, application level inspection, Link Aggregation, traffic shaping, Web Filtering, WAN failover, 3G/4G USB Dongle Support, firmware upgradable, Intrusion Prevention System (IPS), Intrusion Detection System (IDS)
- Authentication Method
- Active Directory
Expansion / Connectivity
- Interfaces
- 2 x 10Gb Ethernet - SFP+ (WAN) , 8 x 1000Base-T - RJ-45 , 8 x - SFP (mini-GBIC) , 8 x 10Gb Ethernet - SFP+ , 1 x USB - Type A
Power
- Power Device
- Internal power supply
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Provided
- 250 watt
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime - response time: next day
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
