Description

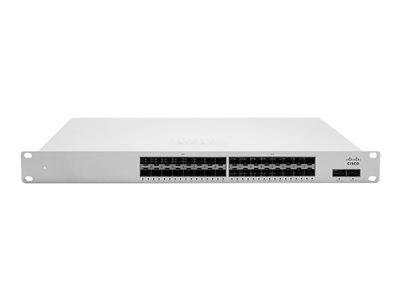

The Cisco Meraki MS425-32 is a 32-port 10GbE cloud-managed stackable L3 enterprise-class aggregation switch with two QSFP+ 40G uplinks and support for redundant power supplies for mission critical environments. The MS425 family includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. The MS425 family is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.
Specifications
Summary
- Product Description
- Cisco Meraki Cloud Managed Ethernet Aggregation Switch MS425-32 - switch - 32 ports - Managed - rack-mountable
- Device Type
- Switch - 32 ports - Managed - stackable
- Enclosure Type
- Front to back airflow rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 24 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ (uplink)
- Performance
- Switching capacity: 800 Gbps
- Capacity
- Tagged VLANs: 4095
- Routing Protocol
- OSPFv2, static IP routing
- Features
- Layer 3 switching, DHCP support, VLAN support, IGMP snooping, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), SMS alert, LLDP support, Link Aggregation Control Protocol (LACP), Zero Touch Auto Provisioning, tagged VLAN, cloud managed
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ad, IEEE 802.1ab (LLDP)
- Power
- AC 120/230 V (47 - 63 Hz)
- Dimensions (WxDxH)
- 48.5 cm x 48.7 cm x 4.5 cm
- Weight
- 6.35 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 32 ports - Managed - stackable
- Enclosure Type
- Front to back airflow rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 24 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ (uplink)
- Performance
- Switching capacity: 800 Gbps
- Capacity
- Tagged VLANs: 4095
- Routing Protocol
- OSPFv2, static IP routing
- Authentication Method
- RADIUS
- Features
- Layer 3 switching, DHCP support, VLAN support, IGMP snooping, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), SMS alert, LLDP support, Link Aggregation Control Protocol (LACP), Zero Touch Auto Provisioning, tagged VLAN, cloud managed
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ad, IEEE 802.1ab (LLDP)
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-X SFP+ , 2 x 40Gbit LAN QSFP+ uplink/stacking , 1 x management (Gigabit LAN) RJ-45
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (47 - 63 Hz)
Miscellaneous
- MTBF
- 431,380 hours
- Compliant Standards
- CSA, C-Tick, IC, RoHS
Dimensions & Weight
- Width
- 48.5 cm
- Depth
- 48.7 cm
- Height
- 4.5 cm
- Weight
- 6.35 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - advance hardware replacement - lifetime - response time: next day
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
