Description

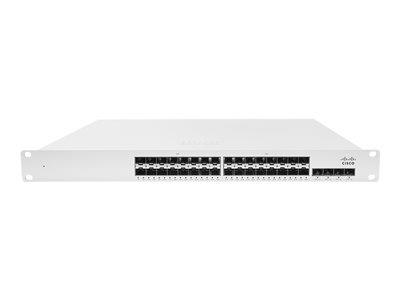

The Cisco Meraki MS410-32 is a 32-port 1GbE cloud-managed stackable L3 enterprise-class distribution switch with four SFP+ uplinks and support for redundant power supplies for mission critical environments. The MS410 family includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. The MS410 family is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.
-
Robust performance
With a switching capacity of 72 Gbps, the Cisco Meraki Cloud Managed Ethernet Aggregation Switch MS410-32 ensures high-speed data transmission and efficient handling of network traffic, making it ideal for growing businesses. -
Comprehensive connectivity
Equipped with 32 Gigabit SFP ports and 4 additional 10 Gigabit SFP+ uplink ports, this switch offers ample connectivity options for a variety of devices and network layouts, supporting both current and future network infrastructure needs. -
Enhanced network security
Features such as 802.1x authentication, DHCP snooping, and RADIUS support provide a secure network environment by protecting against unauthorized access and network threats. -
Efficient network management
Manageable via HTTP and SNMP, the switch allows for easy setup and management, while features like SMS and e-mail alerts keep administrators informed of network status in real time. -
Reliable operation
Designed for durability and long-term reliability, it boasts an MTBF of 437,593 hours and operates effectively in temperatures ranging from 0°C to 40°C, ensuring consistent performance under various environmental conditions.
Specifications
Summary
- Product Description
- Cisco Meraki Cloud Managed Ethernet Aggregation Switch MS410-32 - switch - 32 ports - Managed - rack-mountable
- Device Type
- Switch - 32 ports - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 32 x Gigabit SFP + 4 x 10 Gigabit SFP+ (uplink)
- Performance
- Switching capacity: 72 Gbps
- Capacity
- Tagged VLANs: 4095
- MAC Address Table Size
- 96K entries
- Routing Protocol
- VRRP, OSPFv2, static IP routing
- Remote Management Protocol
- SNMP, HTTP
- Features
- VLAN support, IGMP snooping, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, STP support, RSTP support, DHCP snooping, QoS, DHCP server, SMS alert, LACP support, DHCP relay, tagged VLAN, 802.1x authentication, BPDU
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP)
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 48.5 cm x 51.6 cm x 4.5 cm
- Weight
- 5.7 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 32 ports - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 32 x Gigabit SFP + 4 x 10 Gigabit SFP+ (uplink)
- Performance
- Switching capacity: 72 Gbps
- Capacity
- Tagged VLANs: 4095
- MAC Address Table Size
- 96K entries
- Max Units In A Stack
- 8
- Routing Protocol
- VRRP, OSPFv2, static IP routing
- Remote Management Protocol
- SNMP, HTTP
- Authentication Method
- RADIUS
- Features
- VLAN support, IGMP snooping, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, STP support, RSTP support, DHCP snooping, QoS, DHCP server, SMS alert, LACP support, DHCP relay, tagged VLAN, 802.1x authentication, BPDU
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP)
Expansion / Connectivity
- Interfaces
- 32 x 1000Base-X SFP , 4 x 10GBase-X SFP+ uplink , 1 x management (Gigabit LAN) RJ-45
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 85 Watt
- Features
- Front-to-rear airflow
Miscellaneous
- MTBF
- 437,593 hours
- Compliant Standards
- CSA, C-Tick, IC, RoHS
Dimensions & Weight
- Width
- 48.5 cm
- Depth
- 51.6 cm
- Height
- 4.5 cm
- Weight
- 5.7 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - advance hardware replacement - lifetime - response time: next day
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
