Description

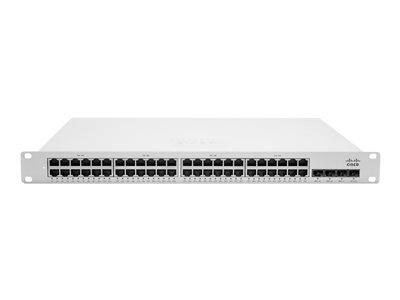

The Cisco Meraki MS350-48FP is a 48-port GbE 740W PoE/PoE+ cloud-managed stackable L3 enterprise-class access switch with four SFP+ uplinks and support for redundant power supplies for mission critical environments. The MS350 family includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. The MS350 family is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.
-
Centrally managed from the cloud
The Cisco Meraki Cloud Networking architecture enables Plug and Play branch deployments and provides centralized visibility and control across any number of distributed locations. The Cisco Meraki MS is the industry's cloud managed switch, combining the benefits of cloud-based centralized management with a powerful, reliable access platform. With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff. -
Layer 7 application and client visibility
Cisco Meraki MS Switches are the industry's only switches featuring integrated Layer 7 application and client fingerprinting and analysis. Hundreds of applications are automatically identified and reported, from business apps to BitTorrent and YouTube, so administrators can see where resources are spent. -
QoS for voice and video
Deploy latency-sensitive applications such as voice and video by guaranteeing network performance. Voice and QoS features such as per-VLAN and protocol-based prioritization, as well as flexible QoS assignments, give intuitive, granular control. -
Enterprise security
Extending security down to the port level has never been easier. MS Switches integrate seamlessly with enterprise-grade security systems using 802.1x. Define access policies, segregate guest devices, and quarantine entire environments right from the dashboard.
Specifications
Summary
- Product Description
- Cisco Meraki Cloud Managed MS350-48FP - switch - 48 ports - Managed - rack-mountable
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 740 W
- Performance
- Non-blocking switching capacity: 176 Gbps
- Capacity
- Forwarding table entries: 96000 , Tagged VLANs: 4096
- Jumbo Frame Support
- 9600 bytes
- Routing Protocol
- OSPFv2, static IP routing
- Remote Management Protocol
- SNMP 2c
- Features
- Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, STP support, RSTP support, ACL support, QoS, SMS alert, LLDP support, DHCP client, tagged VLAN, crossover detection
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at
- Power
- AC 120/230 V (50/60 Hz)
- Power Redundancy
- Optional
- Dimensions (WxDxH)
- 48.5 cm x 55.4 cm x 4.4 cm
- Weight
- 6.8 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 740 W
- Performance
- Non-blocking switching capacity: 176 Gbps
- Capacity
- Forwarding table entries: 96000 , Tagged VLANs: 4096
- Jumbo Frame Support
- 9600 bytes
- Routing Protocol
- OSPFv2, static IP routing
- Remote Management Protocol
- SNMP 2c
- Authentication Method
- RADIUS
- Features
- Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, STP support, RSTP support, ACL support, QoS, SMS alert, LLDP support, DHCP client, tagged VLAN, crossover detection
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at
Expansion / Connectivity
- Interfaces
- 48 x 1000Base-T RJ-45 PoE+ - 25.5 W , 4 x 10Gbit LAN SFP+ uplink
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 1
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Power Provided
- 1025 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 885 Watt
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 516,000 hours
- Compliant Standards
- CSA, C-Tick, IC, RoHS
Dimensions & Weight
- Width
- 48.5 cm
- Depth
- 55.4 cm
- Height
- 4.4 cm
- Weight
- 6.8 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime - response time: next day
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
