Description

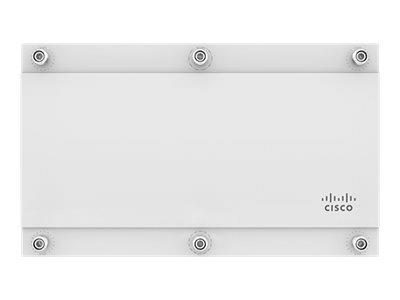

The Cisco Meraki MR53E is a cloud-managed 4x4:4 802.11ac Wave 2 access point with 160 MHz channels and MU-MIMO support. Designed for demanding next-generation deployments in busy offices, schools, hospitals, stadiums, factories, warehouses, and other venues, the MR53E offers high performance, enterprise-grade security, and simple management.
The MR53E supports a variety of smart, auto-detectable external antenna that can deliver both focused, targeted coverage in challenging RF scenarios as well as broader coverage in a variety of environments, including those with very high ceilings. These antenna include panel and panel downtilt omnidirectionals, wide patch, and narrow patch options.
A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization. In addition, an integrated fourth radio delivers Bluetooth Low Energy (BLE) scanning and Beaconing functionality. The MR53E is 100% cloud-managed via the intuitive, browser-based Meraki Dashboard, and includes a rich, out-of-the box feature set without additional cost or complexity.
-
Enhanced connectivity
Equipped with a 1/2.5GBase-T and a 1000Base-T interface, the Cisco Meraki MR53E offers versatile connectivity options for diverse networking needs, ensuring high-speed data transfer rates up to 2.5 Gbps. -
Robust security
Featuring a comprehensive suite of encryption algorithms including AES, WPA, and WPA2-Enterprise, the MR53E provides advanced security measures to protect sensitive data and maintain network integrity. -
High performance
With 4T4R MIMO and MU-MIMO technology, the MR53E delivers enhanced data throughput and efficiency, supporting multiple users and devices simultaneously without compromising on speed or quality. -
Intelligent management
Cloud-managed and equipped with features like Quality of Service (QoS) and traffic shaping, this wireless access point allows for easy deployment and management, optimizing network performance and user experience. -
Durable design
Designed for wall or ceiling mounting, the MR53E operates within a wide range of temperatures and humidity, ensuring reliable performance in various environmental conditions.
Specifications
Summary
- Product Description
- Cisco Meraki MR53E - radio access point - Wi-Fi 5 - cloud-managed
- Device Type
- Radio access point
- Form Factor
- Wall / ceiling mountable
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Frequency Band
- 2.4 GHz, 5 GHz
- Power Over Ethernet (PoE) Supported
- PoE
- Dimensions (WxDxH)
- 26.9 cm x 16 cm x 2.7 cm
- Weight
- 1.17 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Radio access point
- Width
- 26.9 cm
- Depth
- 16 cm
- Height
- 2.7 cm
- Weight
- 1.17 kg
Networking
- Form Factor
- Wall / ceiling mountable
- Connectivity Technology
- Wireless
- Data Transfer Rate
- 2.5 Gbps
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Network / Transport Protocol
- IPSec
- Cloud-Managed
- Yes
- Frequency Band
- 2.4 GHz, 5 GHz
- Status Indicators
- Power, Boot State, status
- Features
- Hardware encryption, traffic shaping, firmware upgradable, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), 4T4R MIMO technology, Wireless Intrusion Prevention System (WIPS), tagged VLAN, security lock slot (cable lock sold separately), DiffServ Code Point (DSCP) support, MU-MIMO technology, Bluetooth Low Energy Beaconing, Unscheduled Automatic Power Save Delivery (U-APSD), SU-MIMO technology
- Encryption Algorithm
- AES, TLS, TTLS, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WEP, EAP-SIM
- Authentication Method
- MS-CHAP v.2
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11u
Aerial
- Antenna
- External detachable
Expansion / Connectivity
- Interfaces
- 1 x 1/2.5GBase-T , 1 x 1000Base-T - RJ-45 , 6 x aerial - RP-TNC
Miscellaneous
- Compliant Standards
- ICES-003, EN55024, FCC Part 15 B, RSS-102, FCC Part 15 C, RoHS, FCC Part 2, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15 E, EN 62311, EN 300 328, EN 50385, LP0002, RSS-247, EN 301 489-1-17, EN 62479, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EMI Class B, AS/NZS 2772
Power
- Power Over Ethernet (PoE) Supported
- PoE
- Power Consumption Operational
- 20 Watt
Manufacturer Warranty
- Service & Support
- Limited warranty - advance parts replacement - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95%
