Description

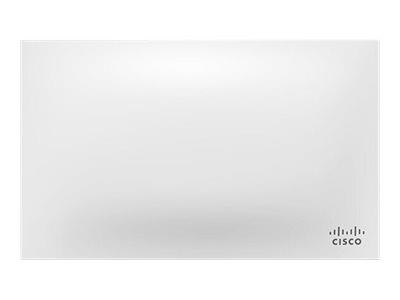

The Cisco Meraki MR53 is a four radio, cloud-managed 4x4 4-stream MU-MIMO 802.11ac Wave 2 access point with multigigabit uplink support. Designed for high-performance, high-density next-generation deployments in offices, schools, hospitals, shops, and hotels, the MR53 offers performance, security, and simple management. The MR53 provides a maximum 2.5 Gbps aggregate dual - band frame rate with dual-concurrent 802.11ac Wave 2 4x4:4 MIMO radios. A dedicated third radio provides real-time WIDS/ WIPS with automated RF optimization. In addition, an integrated fourth radio delivers Bluetooth Low Energy (BLE) scanning and Beaconing functionality. The multigigabit uplink makes the MR53 ready for future-proof networks with the latest multigigabit switching technology. The MR52 is 100% cloud-managed via the intuitive, browser-based Meraki Dashboard, and includes a rich, out-of-the-box feature set without additional cost or complexity.
-
Enhanced connectivity
Equipped with both 1000Base-T (PoE) and 2.5 GBase-T (PoE+) RJ-45 connectors, this wireless access point ensures versatile and high-speed connectivity options for seamless network integration. -
Robust security
Featuring a comprehensive suite of encryption algorithms including AES, TKIP, TLS, TTLS, WEP, WPA, WPA2-Enterprise, and WPA2-PSK, the MR53 offers advanced security measures to protect sensitive data and maintain network integrity. -
High performance
With support for IEEE 802.11ac Wave 2 and data transfer rates up to 2.5 Gbps, alongside technologies like MU-MIMO, this device delivers efficient wireless connectivity for demanding business environments. -
Intelligent management
Cloud-managed with full support for IEEE standards, the MR53 offers simplified deployment and management, enhanced with features like Quality of Service (QoS), traffic shaping, and firmware upgradability for optimal network performance. -
Durable and compliant
Designed to meet a wide range of compliance standards and equipped with a plenum-rated form factor, this wireless access point is built for durability and safe installation in various environments.
Specifications
Summary
- Product Description
- Cisco Meraki MR53 - radio access point - Wi-Fi 5 - cloud-managed
- Device Type
- Radio access point
- Form Factor
- External
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Frequency Band
- 2.4 GHz, 5 GHz
- Included Accessories
- Wall mounting kit, ceiling mounting kit
- Power Over Ethernet (PoE) Supported
- PoE
- Dimensions (WxDxH)
- 26.82 cm x 16.2 cm x 3.88 cm
- Weight
- 840 g
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Radio access point
- Width
- 26.82 cm
- Depth
- 16.2 cm
- Height
- 3.88 cm
- Weight
- 840 g
Networking
- Form Factor
- External
- Connectivity Technology
- Wireless
- Data Transfer Rate
- 2.5 Gbps
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Cloud-Managed
- Yes
- Frequency Band
- 2.4 GHz, 5 GHz
- Features
- Firewall protection, hardware encryption, traffic shaping, firmware upgradable, wall mountable, Wireless Intrusion Detection System (WIDS), IPSec Virtual Private Network (VPN), Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), rogue access point detection, plenum-rated, 4T4R MIMO technology, Wireless Intrusion Prevention System (WIPS), tagged VLAN, security lock slot (cable lock sold separately), DiffServ Code Point (DSCP) support, MU-MIMO technology, Bluetooth Low Energy Beaconing, Unscheduled Automatic Power Save Delivery (U-APSD), Aruba Beacons Bluetooth Low-Energy (BLE) technology, SU-MIMO technology
- Encryption Algorithm
- AES, TLS, TTLS, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WEP
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11u
Aerial
- Antenna
- Internal
- Directivity
- Omni-directional
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T (PoE) - RJ-45 , 1 x 2.5 GBase-T (PoE+) - RJ-45
Miscellaneous
- Included Accessories
- Wall mounting kit, ceiling mounting kit
- Compliant Standards
- VCCI, ICES-003, EN55024, CISPR 22, FCC Part 15 B, RSS-102, FCC Part 15 C, UL 2043, FCC Part 2, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15 E, EN 62311, EN 300 328, EN 50385, EN 300 893, CISPR32/EN55032, RSS-247, EN 301 489-1-17, EN 62479, CAN/CSA-C22.2 No. 60950-1
Power
- Power Over Ethernet (PoE) Supported
- PoE
- Power Consumption Operational
- 21 Watt
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
