Description

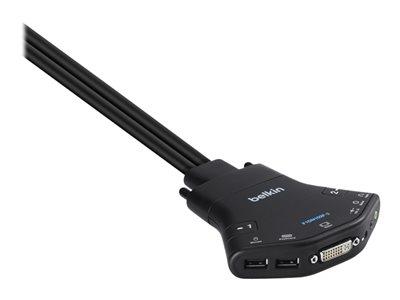

The Belkin Secure Flip DVI KVM switch enables users to securely switch between two sources while presenting information from each source at a time. The Secure Flip offers superior security and data protection by providing true data path isolation between systems and networks. The Flip KVM switch securely toggles control of video, keyboard, mouse and audio between the two sources allowing navigation by selecting the switch push buttons or controlling it remotely via remote control device. The Belkin Secure Flip DVI KVM is designed, manufactured and certified to the latest NIAP Protection Profile Ver. 3.0 standard. The latest NIAP Protection Profile ensures agencies are receiving the appropriate security for Keyboard and Pointing Devices, superior protection for DVI displays and improved audio device security.
-
Dedicated processors with emulators for every port
Isolated port paths for video and audio to prevent data leaks between computers. -
Unidirectional data paths
Optical data diodes prevent peripherals from being used to breach systems. -
Display security
Protected display interface prevents data leakage via the monitor. -
Peripheral management
USB device detection prevents unauthorized peripheral usage. -
Anti-tampering
Internal electrical sensors render unit inoperable if opened. -
Secure labeling
Holographic tamper-evident product label provides visual indication and prevention of tampering. -
Fast switching
No keyboard or mouse delays when switching ports. -
High retention connectors
Semi-locking USB ports prevent accidental disconnection. -
Secure packaging
Tamper-evident packaging ensures product is not tampered with during transport.
Specifications
Summary
- Product Description
- Belkin Secure Flip DVI-D KVM Switch - KVM / audio switch - 2 ports
- Device Type
- KVM / audio switch - 2 ports
- Subtype
- KVM
- Ports
- 2 x KVM / audio
- KVM Users Qty
- 1 local user
- Power
- AC 120/230 V
- Dimensions (WxDxH)
- 10.92 cm x 7.62 cm x 2.54 cm
- Weight
- 730 g
- Localisation
- United Kingdom
- Manufacturer Warranty
- 3-year warranty
- Designed For
- P/N: F1DN104E-3EA
Detailed Specification
General
- Device Type
- KVM / audio switch - 2 ports
- Enclosure Type
- Desktop
- Subtype
- KVM
- Ports
- 2 x KVM / audio
- KVM Local Users Qty
- 1 local user
- Keyboard / Mouse Interface
- USB
- Max Resolution
- 3840 x 2160 @ 30 Hz
- Status Indicators
- Status
Expansion / Connectivity
- Interfaces
- 2 x DVI-D input , 2 x keyboard (USB) / mouse (USB) Type A , 2 x audio input mini-jack , 1 x DVI-D output , 1 x keyboard (USB) Type A , 1 x mouse (USB) Type A , 1 x audio output mini-jack , 1 x remote control
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V
Miscellaneous
- Included Accessories
- Remote control
- Cables Included
- 1 x keyboard / mouse / video / audio cable - 1.8 m , 1 x keyboard / mouse / video / audio cable - 60 cm
- Compliant Standards
- Plug and Play, FCC, DDC, ICES, EDID compatible
- Localisation
- United Kingdom
Dimensions & Weight
- Width
- 10.92 cm
- Depth
- 7.62 cm
- Height
- 2.54 cm
- Weight
- 730 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 80% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 60 °C
Compatibility Information
- Designed For
- P/N: F1DN104E-3EA
