Description

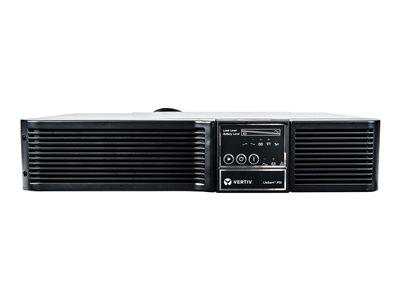

Liebert PSI 3000VA is a compact, line-interactive UPS system designed especially for IT applications such as network closets and small data centers. The flexible design of Liebert PSI allows the UPS to be configured as a self-standing tower or to be rack-mounted within a 2U space. It provides reliable power protection for servers, critical nodes, network workstations, large network peripherals, network routers, bridges, and other electronic equipment.
-
Efficient power management
The Liebert PSI UPS features line interactive UPS technology, ensuring efficient power management and protection against power outages and fluctuations. Its sinewave output waveform ensures a smooth and consistent power supply to connected devices. -
Rapid recharge capability
Equipped with hot-swappable batteries that recharge in just 5 hr, the Liebert PSI UPS minimizes downtime, ensuring your operations are back up and running quickly after a power disruption. -
Comprehensive connectivity
This UPS offers a variety of connectivity options including RS-232 and USB interfaces, allowing for easy management and monitoring of the power supply system. The inclusion of an EPO (emergency power off) port adds an extra layer of safety in critical situations. -
Designed for durability
The Liebert PSI UPS comes with a robust plug-in module design and is compliant with RoHS standards, ensuring reliable performance in a range of environmental conditions, from 0°C to 40°C.
Specifications
Summary
- Product Description
- Liebert PSI PS2200RT3-230 - UPS - 2700 Watt - 3000 VA
- Device Type
- UPS - external
- Rack Size
- 2U
- Weight
- 37.2 kg
- Output Voltage
- AC 220/230/240 V ± 5%
- Power Capacity
- 2700 Watt / 3000 VA
- Input Connectors
- 1 x power IEC 60320 C20
- Output connectors
- 8 x power IEC 60320 C13 , 1 x power IEC 60320 C19
- Battery
- Lead Acid - 9 Ah
- Battery Form Factor
- Plug-in module
- Batteries Qty
- 6
- Run Time (Up To)
- 3 min at full load
- Networking
- RS-232, USB
- Included Accessories
- Tower stand
- Dimensions (WxDxH)
- 44 cm x 65.7 cm x 8.8 cm
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- UPS - external
- Battery Enclosure Type
- Plug-in module
- Height (Rack Units)
- 2U
Power Device
- UPS Technology
- Line interactive
- Input Voltage Range
- AC 165 - 300 V
- Frequency Provided
- 45 - 65 Hz
- Frequency Required
- 45 - 65 Hz
- Input Connectors
- 1 x power IEC 60320 C20
- Power Output Connectors Details
- 8 x power IEC 60320 C13 , 1 x power IEC 60320 C19
- Output Voltage
- AC 220/230/240 V ± 5% - 45 - 65 Hz
- Power Capacity
- 2700 Watt / 3000 VA
- Output Waveform
- Sinewave
- Surge Suppression
- Yes
- Surge Energy Rating
- 220 Joules
- Circuit Protection
- Circuit breaker
Battery
- Quantity
- 6
- Technology
- Lead Acid
- Voltage Provided
- 12 V
- Capacity
- 9 Ah
- Run Time (Up To)
- 3 min at full load , 3 min at 90% load , 4 min at 80% load , 5 min at 70% load , 7 min at 60% load , 9 min at half load , 12 min at 40% load , 17 min at 30% load , 32 min at 20% load , 76 min at 10% load
- Recharge Time
- 5 hours
Networking
- Remote Management Interface
- RS-232, USB
Expansion / Connectivity
- Interfaces
- 1 x management (USB) - 4 pin USB Type B , 1 x management (RS-232) - 9 pin D-Sub (DB-9) , 1 x EPO (emergency power off)
- Expansion Slots
- 1 (total) / 1 (free) x Expansion Slot
Miscellaneous
- Included Accessories
- Tower stand
- Cables Included
- USB cable - external , 2 x power cable - external
- Rack Mounting Kit
- Included
- Features
- LED display, remote ON/OFF function, hot-swappable batteries
- Compliant Standards
- EN 61000-3-2, IEC 61000-3-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-6, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, IEC 62040-1-1, IEC 62040-2, RoHS, EN 62040-1-1, EN 62040-2
Software / System Requirements
- Software Included
- Liebert MultiLink
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 90% (non-condensing)
- Sound Emission
- 45 dBA
Dimensions & Weight
- Width
- 44 cm
- Depth
- 65.7 cm
- Height
- 8.8 cm
- Weight
- 37.2 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 56 cm
- Shipping Depth
- 77.6 cm
- Shipping Height
- 22.8 cm
- Shipping Weight
- 41.5 kg
