Description
Liebert PSA 1500VA is a compact line-interactive UPS that offers cost-effective, full featured power protection for small office computer and electronic equipment. Liebert PSA mixes unique features and extraordinary performance. Designed with simple controls for easy operation, it provides up to five minutes of back-up time at full load: more than enough time to save work in process and shut down your system.
-
Efficient power protection
The Liebert PSA 1500MT UPS offers reliable power protection and battery backup, utilizing line interactive UPS technology to safeguard individual PCs against power surges and interruptions. -
Comprehensive connectivity

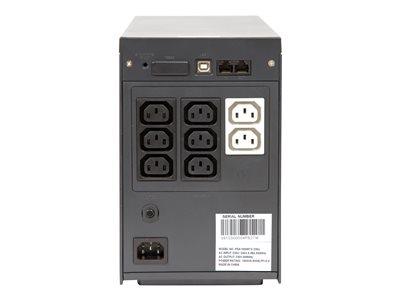

Equipped with 8 output connectors, including 2 surge-only protected and 6 battery-backed outlets, this UPS ensures a wide range of devices can be connected and protected simultaneously. -
Enhanced environmental adaptability
Designed to operate within a broad range of environmental conditions, the Liebert PSA 1500MT maintains performance with an operating humidity range of 0 - 90% and temperature range from 0°C to 40°C, ensuring reliability in diverse settings. -
Intuitive management and diagnostics
Features such as LED indicators and an audible alarm system provide immediate status updates on the UPS, while the USB interface allows for easy integration and management through a PC.
Specifications
Summary
- Product Description
- Liebert PSA 1500MT - UPS - 900 Watt - 1500 VA
- Device Type
- UPS - Power Factor Correction (PFC) - external
- Weight
- 12.6 kg
- Load Rating
- Individual PC
- Input Wiring
- 1-phase
- Input Voltage
- AC 230 V
- Output Voltage
- AC 230 V
- Power Capacity
- 900 Watt / 1500 VA
- Input Connectors
- 1 x power IEC 60320 C14
- Output connectors
- 2 x power IEC 60320 C13 (surge) - 230 V , 6 x power IEC 60320 C13 - 230 V
- Battery
- Lead Acid - 9 Ah
- Batteries Qty
- 2
- Run Time (Up To)
- 12 min at half load
- Networking
- USB
- Colour
- Black
- Dimensions (WxDxH)
- 14.7 cm x 36 cm x 23.4 cm
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- UPS - Power Factor Correction (PFC) - external
- Colour
- Black
Power Device
- Load Rating
- Individual PC
- UPS Technology
- Line interactive
- Input Voltage
- AC 230 V
- Frequency Provided
- 50/60 Hz
- Input Wiring
- 1-phase
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power IEC 60320 C14
- Power Output Connectors Details
- 2 x power IEC 60320 C13 (surge) - 230 V , 6 x power IEC 60320 C13 - 230 V
- Output Voltage
- AC 230 V 50/60 Hz
- Power Capacity
- 900 Watt / 1500 VA
- Dataline Surge Protection
- Network - RJ-45 - 1 input line / 1 output line
- Output Waveform
- Stepped approximation to a sinewave
- Surge Suppression
- Yes
- Surge Energy Rating
- 570 Joules
- Circuit Protection
- Circuit breaker
- Power Factor (PF)
- 0.6
Battery
- Quantity
- 2
- Technology
- Lead Acid
- Voltage Provided
- 12 V
- Capacity
- 9 Ah
- Run Time (Up To)
- 12 min at half load
- Recharge Time
- 6 hours
- Transfer Time
- 6 ms
- Features
- Sealed
Networking
- Remote Management Interface
- USB
Expansion / Connectivity
- Interfaces
- 1 x USB 2.0 - 4 pin USB Type B
Miscellaneous
- Cables Included
- 3 x power cable - external , USB cable - external
- Features
- Audible alarm, LED indicators, over current protection, overload protection, VRLA battery support
- Compliant Standards
- cUL, UL 1778, FCC Part 15 B, IEC 62040-1-1, RoHS, EN 62040-1-1, IP20
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 90%
Dimensions & Weight
- Width
- 14.7 cm
- Depth
- 36 cm
- Height
- 23.4 cm
- Weight
- 12.6 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 23.8 cm
- Shipping Depth
- 43.2 cm
- Shipping Height
- 35.2 cm
- Shipping Weight
- 12.8 kg
