Description
Embedded CMS (Content Management System) allows users to edit and play content, and create playlists, all without a seperate PC. It's a one-stop solution that lets users manage signage simply, and effectively. Various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast are supported for real-time content streaming. It is easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts.
During playback of diverse content such as videos, images, and HTML, enjoy seamless transition between screens with no black screen gaps with webOS. PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.
The detachable logo allows for installation in the desired orientation: landscape or portrait mode. Also, sounds can be played from built-in speakers, giving advertisements greater impact.
-
High performance smart platform
Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools. -
Easy Contents Management
Embedded CMS (Content Management System) allows users to edit and play content, and create playlists, all without a seperate PC. It's a one-stop solution that lets users manage signage simply, and effectively. -
Real-time streaming
Various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast are supported for real-time content streaming. It is easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts. -
Seamless content playback
During playback of diverse content such as videos, images, and HTML, enjoy seamless transition between screens with no black screen gaps with webOS. -
Multiple screen cjmposition
PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source. -
Suited for industrial design
The detachable logo allows for installation in the desired orientation: landscape or portrait mode. Also, sounds can be played from built-in speakers, giving advertisements greater impact.
Specifications
Summary
- Product Description

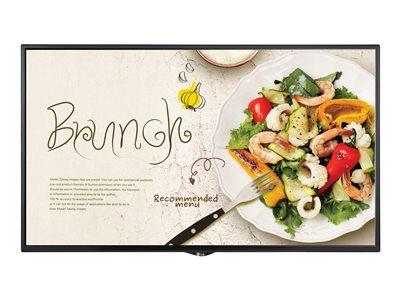

- LG 55SM5KE SM5KE Series - 55" LED-backlit LCD display - Full HD - for digital signage
- Product Type
- LED-backlit LCD flat panel display - Smart TV
- Diagonal Class
- 55"
- Commercial Use
- Yes - digital signage
- Colour
- Black
- Platform
- webOS
- Resolution
- 1920 x 1080
- Display Format
- 1080p
- Video Interface
- HDMI
- HDMI Ports Qty
- 3 ports
- Connectivity
- Wi-Fi, Bluetooth
- PC Interface
- DVI, DisplayPort
- Technology
- IPS
- LCD Backlight Technology
- LED backlight
- Image Aspect Ratio
- 16:9
- TV Tuner
- No tuner
- Commercial Features
- HTML5 support, SNMP support, detachable logo, Smart Platform, SuperSign CMS compatible, SuperSign Control+ compatible, Embedded Content Management
- Settings Cloning Capability
- Yes
- Speaker System
- 2 speakers
- Platform
- Crestron
- Storage Drive Capacity
- 8 GB
- Storage Capacity
- 8 GB
- USB
- Yes
- Included Accessories
- Remote control
- Voltage
- AC 120/230 V (50/60 Hz)
- Energy Class
- Class G
- Power Consumption Operational
- 115 Watt
- Power Consumption (On mode)
- 135 W
- Power Consumption Stand by
- 0.5 Watt
- Energy Consumption per Year
- 130 kWh
- Dimensions (WxDxH) - without stand
- 123.8 cm x 5.4 cm x 71.49 cm
- Weight
- 17.5 kg
- Environmental Standards
- ENERGY STAR Qualified
Detailed Specification
General
- Product Type
- LED-backlit LCD flat panel display - Smart TV
- Energy Class
- Class G
- Power Consumption Operational
- 115 Watt
- Power Consumption (On mode)
- 135 W
- Power Consumption SDR (On mode)
- 135 kWh/1000h
- Energy Consumption per Year
- 130 kWh
- Diagonal Class
- 55"
- Commercial Use
- Yes - digital signage
- Series
- SM5KE Series
- Platform
- webOS
- Operating System
- webOS 4.0
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Sensors
- Temperature sensor, auto brightness sensor, current sensor
- Video Interface
- HDMI
- HDMI Ports Qty
- 3 ports
- PC Interface
- DVI, DisplayPort
- Modes
- Portrait mode, landscape mode, Tile Mode
- Dimensions
- Without stand
- Width
- 123.8 cm
- Depth
- 5.4 cm
- Height
- 71.49 cm
- Weight
- 17.5 kg
- Enclosure Colour
- Black
Display
- LCD Display Technology
- IPS
- Resolution
- 1920 x 1080
- Display Format
- 1080p
- Image Aspect Ratio
- 16:9
- LCD Backlight Technology
- LED backlight
- Coating
- Anti-glare, 3H Hard, conformal, 1% haze
- Image Contrast Ratio
- 1100:1
- Brightness
- 450 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Backlight Life
- 50,000 hour(s)
- Commercial Features
- HTML5 support, SNMP support, detachable logo, Smart Platform, SuperSign CMS compatible, SuperSign Control+ compatible, Embedded Content Management
- Settings Cloning Capability
- Yes
- Operation Hours / Days
- 24 / 7
- Features
- BEACON technology, Front Polarizer, picture in picture (no tuner), picture by picture (no tuner), wireless access point
Stands & Mounts
- Stand
- Optional
- Flat Panel Mount Interface
- 300 x 300 mm
- VESA Compatibility
- Yes
Media Player
- USB Port
- Yes
- USB Ports Qty
- 1
- Configuration
- 8 GB
- Storage Drive Capacity
- 8 GB
Remote Control
- Type
- Remote control
- Battery Included Qty
- 2
Audio System
- Speaker System
- 2 speakers
- Output Power / Total
- 20 Watt
- Speakers
- 2 x speaker - 10 Watt
Network & Internet Multimedia
- Connectivity
- Wi-Fi, Bluetooth
- Connect & Share
- Content Share, Screen Share
Connections
- Connector Type
- 3 x HDMI input , DisplayPort input , DVI-D input , Audio line-in , USB 3.0 , DisplayPort output , Audio line-out , Serial input , Serial output , LAN , Infrared (IrDA)
Internet of Things (IoT)
- Internet of Things (IoT) Compatible
- Yes
- Platform
- Crestron
- Communications Technology
- Bluetooth Low Energy (LE)
Miscellaneous
- Cables Included
- HDMI cable , Serial adapter
- Compliant Standards
- FCC Class A certified, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, KC
Sustainability Information
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 7.0
Power
- Power Device
- Power supply
- Input Voltage
- AC 120/230 V (50/60 Hz)
- Power Consumption Stand by
- 0.5 Watt
- Features
- Smart energy saving
Dimensions & Weight Details
- Dimensions & Weight Details
- Panel without stand - 123.8 cm x 5.4 cm x 71.49 cm x 17.5 kg , Panel with stand - 123.8 cm x 21.96 cm x 77.34 cm x 20.8 kg
Dimensions & Weight (Shipping)
- Width (Shipping)
- 133 cm
- Depth (Shipping)
- 17 cm
- Height (Shipping)
- 80.7 cm
- Weight (Shipping)
- 21.7 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 80%
