Description

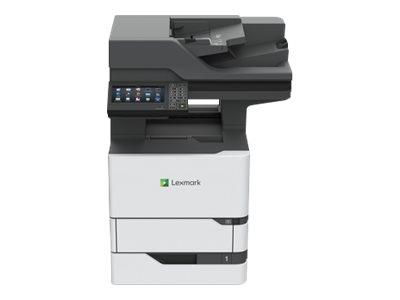

A hard disk helps the flexibly configurable, Wi-Fi- and OCR-equipped Lexmark MB2770adwhe monochrome multifunction product to meet large-workgroup needs.
-
4-year guarantee upon registration
For an added level of peace of mind, you can benefit from 4-year guarantee coverage upon registration. -
The wireless difference
In addition to standard Ethernet and USB connectivity, on-board 802.1x-standard Wi-Fi makes it easy for authorised users to directly and securely connect for access to device services such as scanning and printing. -
Don't interrupt
With access to input capacity of up to 3,300 sheets, replacement toner cartridges that go as high as 30,000 pages, 200-sheet automatic document feeder, long-life imaging unit and fuser that may never need replacement, you'll spend more time printing and less time doing maintenance. -
Blazing output, amazing input
A first page as fast as four seconds sets the stage for printing and copying at up to 66 ppm, backed by the powerful combination of 1.2-GHz quad-core processor, standard hard disk and up to 6 GB of memory. Single-pass two-sided scanning at up to 144 spm completes the speed equation, bolstered by bigger-than-ever 200-page document feeder capacity. -
Interact with ease
With new front-side power button and USB port, 17.8 cm class [7-inch] colour e-Task touch screen to monitor and configure system settings and single-door access to parts and supplies, it's easier than ever to get things done. Convenient front access to the paper path means you'll virtually never have to access the back of the device. And ADA-compliant trays have push-button sliders and open with one hand, requiring low force and no twisting. -
Innovation that saves
Lexmark's most energy-efficient large-workgroup monochrome products ever are rated EPEAT Gold and ENERGY STAR (2.0) certified. In addition to inactivity-based sleep mode, you can invoke sleep by simply pressing the new front-side power button. Lexmark-exclusive Quiet Mode reduces noise pollution by reducing sound by up to 5dBA, while Eco Mode lets you reduce energy consumption and enforce two-sided printing to save paper. -
Full-spectrum security
Lexmark's comprehensive approach to product security is a design and engineering mandate across our entire product portfolio. Our security features help keep your information safe - in the document, on the device, over the network and at all points in between. That's why Keypoint Intelligence - Buyers Lab honoured Lexmark with a prestigious BLI PaceSetter award for Document Imaging Security. And this Lexmark product enables you to be GDPR ready.
Specifications
Summary
- Product Description
- Lexmark MB2770adhwe - multifunction printer - B/W
- Device Type
- Multifunction printer
- Fax Type
- Super G3 - plain paper
- Printing Technology
- Laser (monochrome)
- Monthly Duty Cycle (max)
- 350000 pages
- Recommended Monthly Volume
- 5000 - 100000 pages
- Max Copying Speed
- Up to 66 ppm
- Max Printing Speed
- Up to 66 ppm
- Max Printing Resolution
- Up to 1200 x 1200 dpi
- Max Printing Resolution Class
- Up to 1200 x 1200 dpi
- Max Fax Transmission Speed
- 33.6 Kbps
- Scanning
- 600 x 600 dpi
- Display
- 7"
- Original Size
- 215.9 x 355.6 mm (max)
- Original Type
- Sheets
- Document Feeder Capacity
- 200 sheets
- Media Size
- Legal (216 x 356 mm), A4 (210 x 297 mm) (max)
- Media Type
- Transparencies, envelopes, plain paper, labels, card stock
- Standard Media Capacity
- 650 sheets
- Max Media Capacity
- 3300 sheets
- Bypass Feeder Capacity
- 100 sheets
- Output Trays Capacity
- 550 sheets
- Automatic Duplexing
- Yes (copying) Yes (printing) Yes (scanning)
- Connection Availability
- Yes
- Interface
- USB 2.0, Gigabit LAN, Wi-Fi(n), USB 2.0 host
- AirPrint Enabled
- Yes
- Office Machine Features
- Scan to e-mail, scan to network, hard disk included, scan to FTP, scan to USB host, internal card slot
- Dimensions (WxDxH)
- 55.88 cm x 57.84 cm x 73.91 cm
- Weight
- 44.1 kg
- Environmental Standards
- ENERGY STAR Qualified, Blue Angel
- Manufacturer Warranty
- 4-year warranty with product registration
Detailed Specification
General
- Printer Fonts
- Bitmapped PCL x 2 , Scalable PCL x 84 , Scalable PostScript x 158 , Bitmapped PPDS x 5 , Scalable PPDS x 39
- Device Type
- Multifunction printer
- Fax Type
- Plain paper
- Printing Technology
- Laser - monochrome
- Monthly Duty Cycle (max)
- 350000 pages
- Recommended Monthly Volume
- 5000 - 100000 pages
- Display Diagonal Size
- 7"
- Display Colour Support
- Colour
- Display Features
- Touch screen
- Connection Availability
- Yes
- Interface
- USB 2.0, Gigabit LAN, Wi-Fi(n), USB 2.0 host
- AirPrint Enabled
- Yes
- Office Machine Features
- Scan to e-mail, scan to network, hard disk included, scan to FTP, scan to USB host, internal card slot
Memory
- Standard Memory
- 2 GB
- Max Supported Memory
- 6 GB
- Hard Disk Drive
- 160 GB
Copying
- Max Copying Speed
- Up to 66 ppm
- Max Document Enlargement
- 400%
- Max Document Reduction
- 25%
- Automatic Duplexing
- Yes
Printing
- Max Printing Resolution
- Up to 1200 x 1200 dpi
- Max Printing Resolution Class
- Up to 1200 x 1200 dpi
- Max Printing Speed
- Up to 66 ppm
- Printer Drivers / Emulations
- PCL 5e, PCL 6, PostScript 3, PPDS, PDF 1.7, XPS
- Image Enhancement Technology
- 1200 IQ, 2400 IQ
- Automatic Duplexing
- Yes
- First Print Out Time B/W
- 4.5 sec
Scanning
- Scan Element
- CCD
- Automatic Duplexing
- Yes
- Optical Resolution
- 600 x 600 dpi
Fax Machine
- Compatibility
- Super G3
- Max Transmission Speed
- 33.6 Kbps
Document & Media Handling
- Max Original Size
- 215.9 x 355.6 mm
- Supported Original Sizes
- ANSI A (Letter) (216 x 279 mm), A4 (210 x 297 mm), 215.9 x 355.6 mm
- Original Type
- Sheets
- Document Feeder Capacity
- 200 sheets
- Max Media Size
- A4/Legal
- Supported Media Type
- Transparencies, envelopes, plain paper, labels, card stock
- Supported Media Sizes
- ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), Executive (184 x 267 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), A6 (105 x 148 mm), Folio (216 x 330 mm), JIS B5 (182 x 257 mm), Statement (139.7 x 215.9 mm), Oficio (216 x 343 mm)
- Supported Envelope Sizes
- US No 10 (104.7 x 241.3 mm), International DL (110 x 220 mm), International C5 (162 x 229 mm), International B5 (176 x 250 mm), Monarch (98.4 x 190.5 mm), US No 9 (98.6 x 225.6 mm)
- Standard Media Capacity
- 650 sheets
- Max Media Capacity
- 3300 sheets
- Bypass Feeder Capacity
- 100 sheets
- Output Trays Capacity
- 550 sheets
- Document & Media Handling Details
- Multi-purpose tray - 100 sheets , Input tray - 550 sheets weight: 60 g/m² - 176 g/m² , RADF - 200 sheets , Output tray - 550 sheets
- Speed Details
- Printing: up to 66 ppm - B/W , Printing: up to 40 ppm (A4) - B/W duplex , Copying: up to 66 ppm (A4) - B/W , Copying: up to 42 ppm (A4) - B/W duplex , Scanning: up to 72 spm (A4) - B/W , Scanning: up to 75 spm (Letter A) - B/W , Scanning: up to 72 spm (A4) - colour , Scanning: up to 75 spm (Letter A) - colour , Scanning: up to 144 spm (A4) - B/W duplex , Scanning: up to 150 spm (Letter A) - B/W duplex , Scanning: up to 144 spm (A4) - colour duplex , Scanning: up to 150 spm (Letter A) - colour duplex
Connections
- Interfaces
- 1 x USB 2.0 - 4 pin USB Type B , 1 x Gigabit LAN - RJ-45 , 3 x USB 2.0 host - 4 pin USB Type A
- Security Protocols & Features
- SSL, LEAP, TLS, IPsec, 802.1x, ARP, TTLS, PEAP, MD5, MS-CHAPv2, SNMP 3
- Operating System Support
- Novell NetWare 6, SuSE Linux Enterprise Server 10, SuSE Linux Enterprise Server 11, Novell NetWare 5.1, Novell NetWare 6.5, SunSoft Solaris x86 10, IBM AIX 6.1, Apple Mac OS X 10.6, Apple Mac OS X 10.7, Red Hat Enterprise Linux WS 6.0, IBM AIX 7.1, Apple Mac OS X 10.8, SunSoft Solaris x86 11, SunSoft Solaris SPARC Platform Edition 10, SunSoft Solaris SPARC Platform Edition 11, Apple Mac OS X 10.9, MS Windows 7 (32/64 bits), Debian Linux 7.0, Apple Mac OS X 10.10, Windows 8 (32/64-bits), Windows 8.1 (32/64-bits), Windows 10, Apple Mac OS X 10.11, openSUSE 13.2, Novell Open Enterprise Server 2, Debian Linux 8.0, SuSE Linux Enterprise Server 12, Novell Open Enterprise Server 11, Red Hat Enterprise Linux WS 7.0, macOS 10.12, Fedora Linux 23, Fedora Linux 24, openSUSE 42.3, Ubuntu Linux 16.04 LTS
- Software Included
- Drivers & Utilities
Power
- Power Consumption Operational
- 890 Watt
- Power Consumption Standby
- 42 Watt
- Power Consumption Sleep
- 2 Watt
Miscellaneous
- First Copy Out Time B/W
- 4 sec
- Consumables Included
- 1 x toner cartridge (black) - up to 25000 pages ISO/IEC 19752 , 1 x imaging unit - up to 150000 pages at 5% coverage
- Compliant Standards
- FCC Class A certified, C-Tick, CISPR 22 Class A, cUL, GS, NOM, CB, CCC, DOC, ICES-003 Class A, SII, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, A-Tick, IEC 60825-1, FDA, UL-AR, GOST-R, EN 60825-1, BSMI Class A, CDRH, KC, CECP, CEL, VCCI Class A, Bel GISS, ECMA-370, EFTA, TER, MET, ISO 532B, TED, CCD 035 EcoLogo, CAN/CSA-C22.2 No. 60950-1
Environmental Standards
- ENERGY STAR Certified
- Yes
- Blue Angel Compliant
- Yes
Manufacturer Warranty
- Service & Support
- Limited warranty - 4 Years
Dimensions & Weight
- Width
- 55.88 cm
- Depth
- 57.84 cm
- Height
- 73.91 cm
- Weight
- 44.1 kg
Environmental Parameters
- Sound Emission
- 14 dBA (idle) / 60 dBA (operating)
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 32 °C
- Humidity Range Operating
- 8 - 80%
