Description

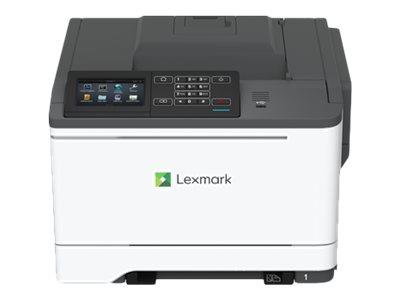

Start your color journey with the Lexmark CS421dn, the printer that helps you control the cost of color output at up to 25 ppm. Built for reliability, performance and security, the Lexmark CS421dn equips you with a variety of tools to both minimize toner consumption and get the color right.
-
Engineered to last
A steel frame, long-life imaging system and robust paper feeding system that reliably handles diverse media types and sizes all support lasting performance in any environment. -
Interact with ease
With its small footprint, it's easy to find a place for. And the new front-panel power button and direct-print USB port, 2.4-inch colour LCD with keypad and secure browser-based device management make it easy to interact with. -
Colour that only looks expensive
Thanks to PANTONE calibration, embedded colour sample pages and Lexmark colour Replacement, you'll get accurate, professional colour in-house. And you'll save toner with included tools that let you choose when and how much colour to print, including mono-only print drivers, user-based colour print permissions, global colour density control, object-specific colour Saver, proof before printing and more. -
Classic connections, wireless convenience
Beyond included USB and gigabit ethernet, this device lets you connect wirelessly via AirPrint, Google Cloud Print, and Mopria on any network with existing Wi-Fi access. An optional Wi-Fi card offers an additional secure, direct mobile print connection. And with Lexmark Mobile Print, printing's as easy as hitting print, choosing your printer and picking up your job. -
Energy efficiency
Make every watt count with energy management features that reduce power consumption whether the device is active or in sleep mode. Lower fusing temperature, automatic management of processor cores based on workload, and standard two-sided printing all help it achieve EPEAT Silver rating and ENERGY STAR (2.0) certification. That benefits the planet and your budget. -
Full-spectrum security
Lexmark's comprehensive approach to product security is a design and engineering mandate across our entire product portfolio. Our security features help keep your information safe - in the document, on the device, over the network and at all points in between. That's why Keypoint Intelligence - Buyers Lab honoured Lexmark with a prestigious BLI PaceSetter award for Document Imaging Security. And this Lexmark product enables you to be GDPR ready.
Specifications
Summary
- Product Description
- Lexmark CS421dn - printer - colour - laser
- Printer Type
- Workgroup printer - laser - colour
- Weight
- 21 kg
- Media Size Class
- A4/Legal
- Max Media Size
- Legal (216 x 356 mm), A4 (210 x 297 mm)
- Print Speed
- Up to 23 ppm - B/W - A4 (210 x 297 mm) , Up to 23 ppm - colour - A4 (210 x 297 mm) , Up to 12 spm - B/W duplex - A4 (210 x 297 mm) , Up to 12 spm - colour duplex - A4 (210 x 297 mm)
- Max Resolution (B&W)
- 1200 x 1200 dpi
- Max Resolution (Colour)
- 1200 x 1200 dpi
- Max Resolution Class (B&W)
- 1200 x 1200 dpi
- Max Resolution Class (Colour)
- 1200 x 1200 dpi
- Image Enhancement Technology
- 4800 Color Quality
- Automatic Duplexing
- Yes
- Interface
- USB 2.0, LAN, USB 2.0 host
- AirPrint Enabled
- Yes
- Preview Screen Size
- 2.4"
- Processor
- 1000 MHz
- RAM Installed (Max)
- 512 MB (512 MB)
- Language Simulation
- PCL 5C, PostScript 3, PCL 6, XPS, PDF 1.7
- Barcodes
- OCR-A, OCR-B
- Media Type
- Envelopes, labels, plain paper, card stock
- Total Media Capacity
- 250 sheets
- Media Handling
- 250-sheet input tray, 1-sheet manual tray
- Monthly Duty Cycle (max)
- 75000 pages
- Recommended Monthly Volume
- 800 - 6500 pages
- Networking
- Print server
- System Requirements
- Novell NetWare 6.5, Novell NetWare 5.1 SP6 or later, Novell NetWare 6.0 SP3 or later, SunSoft Solaris x86 10, SuSE Linux Enterprise Server 11, Apple MacOS X 10.6, SuSE Linux Enterprise Server 10, IBM AIX 6.1, Microsoft Windows 7 (32/64 bits), SunSoft Solaris SPARC Platform Edition 10, Apple MacOS X Lion 10.7, IBM AIX 7.1, SunSoft Solaris x86 11, Red Hat Enterprise Linux WS 6, Windows 8 (32/64 bits), Apple MacOS X 10.8, SunSoft Solaris SPARC Platform Edition 11, Debian GNU/Linux 7.0, Windows 8.1 (32/64 bits), Apple MacOS X 10.9, Apple MacOS X 10.10, Windows 10, SuSE Linux Enterprise Server 12, openSUSE 13.2, Apple MacOS X 10.11, Debian GNU/Linux 8.0, Red Hat Enterprise Linux WS 7, Ubuntu 16.04 LTS, Apple macOS 10.12, Linux Fedora 23, Linux Fedora 24, openSUSE 42.3
- Manufacturer Warranty
- 1-year warranty
- Dimensions (WxDxH)
- 44.2 cm x 42.1 cm x 30.8 cm
Detailed Specification
General
- Printer Type
- Workgroup printer - laser - colour
Printer
- Print Speed
- Up to 23 ppm - B/W - A4 (210 x 297 mm) , Up to 23 ppm - colour - A4 (210 x 297 mm) , Up to 12 spm - B/W duplex - A4 (210 x 297 mm) , Up to 12 spm - colour duplex - A4 (210 x 297 mm)
- Preview Screen Size
- 2.4"
- Connectivity Technology
- Wired
- Interface
- USB 2.0, LAN, USB 2.0 host
- AirPrint Enabled
- Yes
- Max Resolution (B&W)
- 1200 x 1200 dpi
- Max Resolution (Colour)
- 1200 x 1200 dpi
- Max Resolution Class (B&W)
- 1200 x 1200 dpi
- Max Resolution Class (Colour)
- 1200 x 1200 dpi
- Image Enhancement Technology
- 4800 Color Quality
- Automatic Duplexing
- Yes
- PostScript Support
- Standard
- First Print Out Time B/W
- 10.1 sec
- First Print Out Time Colour
- 10.1 sec
- Language Simulation
- PCL 5C, PostScript 3, PCL 6, XPS, PDF 1.7
- Fonts Included
- 158 x scalable PostScript , 2 x bitmapped PCL , 39 x scalable PPDS , 5 x bitmapped PPDS , 84 x scalable PCL
- Barcodes
- OCR-A, OCR-B
- Media Handling
- 250-sheet input tray, 1-sheet manual tray
Processor
- Processor
- 1000 MHz
RAM
- RAM Installed (Max)
- 512 MB / 512 MB (max)
Media Handling
- Media Type
- Envelopes, labels, plain paper, card stock
- Media Size Class
- A4/Legal
- Max Media Size
- Legal (216 x 356 mm), A4 (210 x 297 mm)
- Media Sizes
- ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), Executive (184 x 267 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), A6 (105 x 148 mm), Folio (216 x 330 mm), JIS B5 (182 x 257 mm), Statement (139.7 x 215.9 mm), Oficio (216 x 343 mm)
- Envelope Sizes
- US No 10 (104.7 x 241.3 mm), International DL (110 x 220 mm), International C5 (162 x 229 mm), Monarch (98.4 x 190.5 mm), US No 9 (98.6 x 225.6 mm)
- Total Media Capacity
- 250 sheets
- Media Feeders
- Input tray: 1 x manual - 1 sheet , Input tray: 1 x automatic - 250 sheets weight: 90.3 g/m² - 105 g/m² , Output tray: 1 - 125 sheets
- Max Media Capacity
- 900 sheets
- Output Trays Capacity
- 125 sheets
Duty Cycle
- Monthly Duty Cycle (max)
- 75000 pages
- Recommended Monthly Volume
- 800 - 6500 pages
Networking
- Networking
- Print server
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, IPP 1.0, IPP 1.1, IPP 2.0
- Security Protocols & Features
- SSL, TLS, ARP
Expansion / Connectivity
- Connections
- 1 x USB 2.0 - 4 pin USB Type B , 1 x LAN - RJ-45 , 1 x USB 2.0 host - 4 pin USB Type A
Miscellaneous
- Consumables Included
- 1 x toner cartridge (black) - up to 2000 pages ISO/IEC 19798 , 1 x toner cartridge (cyan) - up to 1400 pages ISO/IEC 19798 , 1 x toner cartridge (magenta) - up to 1400 pages ISO/IEC 19798 , 1 x toner cartridge (yellow) - up to 1400 pages ISO/IEC 19798 , 4 x photoconductor unit
- Compliant Standards
- FCC Class B certified, UL, C-Tick, cUL, GS, CB, ICES-003 Class B, CCC, DOC, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI Class B, KCC, IEC 60825-1, FDA, UL-AR, EN 60825-1, KC, CECP, CEL, VCCI Class B, EFTA, CAN/CSA-C22.2 No. 60950-1
Power
- Power Device
- Power supply - internal
- Power Consumption Operational
- 400 Watt
- Power Consumption Stand by
- 35.5 Watt
- Power Consumption Sleep
- 1.4 Watt
Software / System Requirements
- Software Included
- Drivers & Utilities
- OS Required
- Novell NetWare 6.5, Novell NetWare 5.1 SP6 or later, Novell NetWare 6.0 SP3 or later, SunSoft Solaris x86 10, SuSE Linux Enterprise Server 11, Apple MacOS X 10.6, SuSE Linux Enterprise Server 10, IBM AIX 6.1, Microsoft Windows 7 (32/64 bits), SunSoft Solaris SPARC Platform Edition 10, Apple MacOS X Lion 10.7, IBM AIX 7.1, SunSoft Solaris x86 11, Red Hat Enterprise Linux WS 6, Windows 8 (32/64 bits), Apple MacOS X 10.8, SunSoft Solaris SPARC Platform Edition 11, Debian GNU/Linux 7.0, Windows 8.1 (32/64 bits), Apple MacOS X 10.9, Apple MacOS X 10.10, Windows 10, SuSE Linux Enterprise Server 12, openSUSE 13.2, Apple MacOS X 10.11, Debian GNU/Linux 8.0, Red Hat Enterprise Linux WS 7, Ubuntu 16.04 LTS, Apple macOS 10.12, Linux Fedora 23, Linux Fedora 24, openSUSE 42.3
Environmental Standards
- ENERGY STAR
- Yes
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year - on-site - response time: next business day
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 32 °C
- Humidity Range Operating
- 8 - 80%
- Sound Emission (Operating)
- 48 dBA
Dimensions & Weight
- Width
- 44.2 cm
- Depth
- 42.1 cm
- Height
- 30.8 cm
- Weight
- 21 kg
Dimensions & Weight (Shipping)
- Width (Shipping)
- 49.5 cm
- Depth (Shipping)
- 59.5 cm
- Height (Shipping)
- 40.2 cm
- Weight (Shipping)
- 23.8 kg
