Description

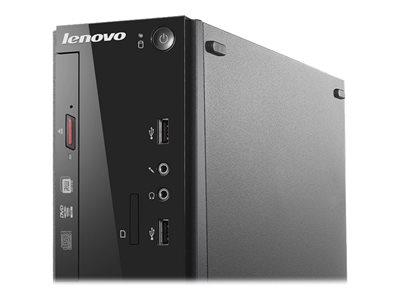

This versatile S500 desktop has an extra small form factor and footprint. Though compact, it delivers amazing performance. An extensive range of ports delivers seamless connectivity while the USB protection technology and Lenovo Bluetooth Lock secure your data.
-
Compact for versatility
Total versatility results from a smaller footprint and a convenient form factor. -
Excellent security
Lenovo USB protection technology allows you to restrict port access while allowing keyboard and mouse inputs. Lenovo Bluetooth Lock means your desktop will automatically lock once you step away. -
Maximum productivity
A range of ports ensures connectivity with all the peripherals you need.
Specifications
Summary
- Product Description
- Lenovo S500 - SFF - Core i7 4790S 3.2 GHz - 8 GB - HDD 1 TB - UK
- Type
- Personal computer - small form factor
- Localisation
- Language: English / region: United Kingdom
- Processor
- Intel Core i7 (4th Gen) 4790S / 3.2 GHz (, up to 4 GHz, (Quad-Core)
- Processor Socket
- LGA1150 Socket
- Processor Main Features
- Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache
- Cache Memory
- 8 MB
- Cache Per Processor
- 8 MB
- RAM
- 8 GB (installed) / 16 GB (max) - DDR3L SDRAM - non-ECC - PC3-12800
- Storage Controller
- SATA (SATA 6Gb/s)
- Hard Drive
- HDD 1 TB - SATA 6Gb/s - 7200 rpm
- Optical Storage
- DVD
- Card Reader
- Yes
- Graphics Controller
- Intel HD Graphics 4600
- Networking
- GigE
- Keyboard
- UK
- Power
- AC 120/230 V (50/60 Hz)
- OS Provided
- Microsoft Windows 7 Professional 64-bit Edition (downgrade from Windows 10 Pro 64-bit) + Windows 10 Pro 64-bit Licence
- Dimensions (WxDxH)
- 9 cm x 32 cm x 29.5 cm
- Weight
- 4.13 kg
- Environmental Standards
- ENERGY STAR Qualified
- Manufacturer Warranty
- Limited warranty - 1 year - on-site
Detailed Specification
General
- Type
- Personal computer
- Product Form Factor
- Small form factor
- Localisation
- Language: English / region: United Kingdom
Processor / Chipset
- CPU
- Intel Core i7 (4th Gen) 4790S
- Clock Speed
- 3.2 GHz
- Max Turbo Speed
- 4 GHz
- Number of Cores
- Quad-Core
- CPU Qty
- 1
- Max CPU Qty
- 1
- Processor Main Features
- Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache
- CPU Socket
- LGA1150 Socket
- Chipset Type
- Intel H81
Cache Memory
- Installed Size
- 8 MB
- Cache Per Processor
- 8 MB
RAM
- Installed Size
- 8 GB / 16 GB (max)
- Technology
- DDR3L SDRAM - non-ECC
- Effective Memory Speed
- 1600 MHz
- Rated Memory Speed
- 1600 MHz
- Memory Specification Compliance
- PC3-12800
- Form Factor
- DIMM 240-pin
- Slots
- 2 (Total) / 1 (empty)
- Features
- Unbuffered
- Configuration Features
- 1 x 8 GB
Hard Drive
- Type
- HDD
- Capacity
- 1 x 1 TB
- Interface Type
- SATA 6Gb/s
- Spindle Speed
- 7200 rpm
Storage Controller
- Type
- 1 x SATA
- Controller Interface Type
- SATA 6Gb/s
- Channel Qty
- 2
Optical Storage
- Type
- DVD-ROM DVD
Card Reader
- Type
- Card reader
Monitor
- Monitor Type
- None.
Graphics Controller
- Graphics Processor
- Intel HD Graphics 4600
- Video Interfaces
- VGA, DisplayPort
Audio Output
- Compliant Standards
- High Definition Audio
Input Device
- Type
- Mouse, keyboard
Keyboard
- Interface
- USB
- Localization & Layout
- UK
Mouse
- Technology
- Optical
- Interface
- USB
Networking
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Features
- Wake on LAN (WoL)
Expansion / Connectivity
- Bays
- 1 (total) / 0 (free) x external 5.25" x 1/6H (Slim Line) , 1 (total) / 0 (free) x internal 3.5" x 1/3H
- Slots
- 2 (total) / 1 (free) x DIMM 240-pin , 1 (total) / 0 (free) x CPU , 1 M.2 Card , 1 (total) / 1 (free) x PCIe x16 - low-profile
- Interfaces
- 2 x USB 3.0 , 2 x microphone (1 front, 1 rear) , 1 x headphones (1 in front) , 4 x USB 2.0 (2 front, 2 rear) , 1 x LAN (Gigabit Ethernet) , 1 x VGA , 1 x DisplayPort , 1 x audio line-in , 1 x audio line-out
Miscellaneous
- Theft/Intrusion Protection
- Security lock slot (cable lock sold separately)
- Compliant Standards
- RoHS, WEEE
Power
- Device Type
- Power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Provided
- 180 Watt
- 80 PLUS Certification
- 80 PLUS
- Efficiency
- 85%
Operating System / Software
- OS Provided
- Microsoft Windows 7 Professional 64-bit Edition (available through downgrade rights from Windows 10 Pro 64-bit) + Windows 10 Pro 64-bit Licence
Sustainability Information
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 6.1
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year - on-site
Dimensions & Weight
- Width
- 9 cm
- Depth
- 32 cm
- Height
- 29.5 cm
- Weight
- 4.13 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 20 - 80%
