Description

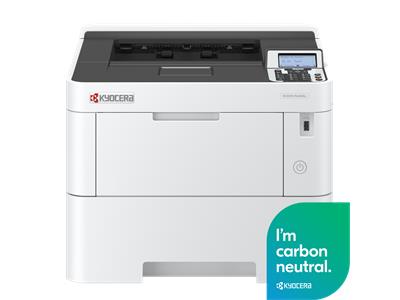

The ECOSYS PA4500x is a powerful printer embedded with high-level security features. The rapid speed of up to 45 pages per minute contributes to the enhanced productivity of smaller workgroups. Thanks to long-life components and low energy consumption, it leaves a smaller environmental footprint.
Specifications
Summary
- Product Description
- Kyocera ECOSYS PA4500X - printer - B/W - laser
- Printer Type
- Workgroup printer - laser - B/W
- Weight
- 14.6 kg
- Media Size Class
- A4/Legal
- Max Media Size
- Legal (216 x 356 mm), A4 (210 x 297 mm)
- Min Media Size (Custom)
- 70 mm x 148 mm
- Max Media Size (Custom)
- 216 mm x 356 mm
- Print Speed
- Up to 45 ppm - B/W - A4 (210 x 297 mm) , Up to 22.5 ppm - B/W duplex - A4 (210 x 297 mm)
- Max Resolution (B&W)
- 1200 x 1200 dpi
- Automatic Duplexing
- Yes
- Interface
- USB 2.0, Gigabit LAN, USB host
- AirPrint Enabled
- Yes
- Processor
- ARM A53 1.4 GHz
- RAM Installed (Max)
- 512 MB (2.5 GB)
- Card Reader
- Yes
- Language Simulation
- PCL 5E, PCL 6, PCL XL, KPDL3, IBM ProPrinter, XPS, EPSON LQ 850, TIFF, PCLm, URF, PWG, JPEG, PDF Direct, PPML
- Media Type
- Plain paper
- Total Media Capacity
- 600 sheets
- Media Handling
- 500-sheet paper cassette, 100-sheet multipurpose tray
- Monthly Duty Cycle (max)
- 150000 pages
- Recommended Monthly Volume
- 20000 pages
- Networking
- Print server
- Printer Features
- PDF direct print, Internet printing, E-mail printing, WSD print, secure printing IPP over TLS, local and network authentication, trusted platform module, secure boot, run time integrity check
- Power
- AC 220-240 V
- System Requirements
- UNIX, Linux, Microsoft Windows, Google Chrome OS, Apple MacOS X 10.9 or later
- Manufacturer Warranty
- 1-year warranty
- Dimensions (WxDxH)
- 38 cm x 41 cm x 28.5 cm
Detailed Specification
General
- Printer Type
- Workgroup printer - laser - monochrome
Printer
- Print Speed
- Up to 45 ppm - B/W - A4 (210 x 297 mm) , Up to 22.5 ppm - B/W duplex - A4 (210 x 297 mm)
- Built-in Devices
- LCD display
- Connectivity Technology
- Wired
- Interface
- USB 2.0, Gigabit LAN, USB host
- AirPrint Enabled
- Yes
- Max Resolution (B&W)
- 1200 x 1200 dpi
- Automatic Duplexing
- Yes
- PostScript Support
- Standard
- First Print Out Time B/W
- 5.3 sec
- Language Simulation
- PCL 5E, PCL 6, PCL XL, KPDL3, IBM ProPrinter, XPS, EPSON LQ 850, TIFF, PCLm, URF, PWG, JPEG, PDF Direct, PPML
- Fonts Included
- 93 x outline , 1 x bitmapped , 45 x barcode
- Printer Features
- PDF direct print, Internet printing, E-mail printing, WSD print, secure printing IPP over TLS, local and network authentication, trusted platform module, secure boot, run time integrity check
- Media Handling
- 500-sheet paper cassette, 100-sheet multipurpose tray
Processor
- Processor
- ARM A53 1.4 GHz
RAM
- RAM Installed (Max)
- 512 MB / 2.5 GB (max)
Card Reader
- Type
- Card reader
- Supported Flash Memory Cards
- SD Memory Card, SDHC Memory Card
Media Handling
- Media Type
- Plain paper
- Media Size Class
- A4/Legal
- Max Media Size
- Legal (216 x 356 mm), A4 (210 x 297 mm)
- Min Media Size (Custom)
- 70 mm x 148 mm
- Max Media Size (Custom)
- 216 mm x 356 mm
- Media Sizes
- ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), Folio (216 x 330 mm)
- Media Weight
- 60 g/m² - 220 g/m²
- Total Media Capacity
- 600 sheets
- Media Feeders
- Multi-purpose tray: 1 x automatic - 100 sheets - Legal (216 x 356 mm) weight: 60 g/m² - 220 g/m² , Paper cassette: 1 x automatic - 500 sheets - Legal (216 x 356 mm) weight: 60 g/m² - 220 g/m²
- Max Media Capacity
- 2600 sheets
- Output Trays Capacity
- 250 sheets
Duty Cycle
- Monthly Duty Cycle (max)
- 150000 pages
- Recommended Monthly Volume
- 20000 pages
Networking
- Networking
- Print server
- Security Protocols & Features
- LDAP, TLS, IPsec, SNMP 3, SMTP
Expansion / Connectivity
- Expansion Slots
- 2 x expansion slot
- Connections
- 1 x USB 2.0 , 2 x USB host , 1 x Gigabit LAN - RJ-45
Miscellaneous
- Consumables Included
- 1 x toner cartridge (black) - up to 6000 pages ISO/IEC 19752 - Kyocera TK-3400
- Compliant Standards
- ISO 9001, GS, ISO 14001, ISO 7779, TÜV safety certification
Power
- Power Device
- Power supply
- Voltage Required
- AC 220-240 V
- Frequency Required
- 50/60 Hz
- Power Consumption Operational
- 605.5 Watt
- Power Consumption Sleep
- 0.5 Watt
Software / System Requirements
- OS Required
- UNIX, Linux, Microsoft Windows, Google Chrome OS, Apple MacOS X 10.9 or later
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 32.5 °C
- Humidity Range Operating
- 15 - 80%
- Sound Emission (Operating)
- 54 dBA
Dimensions & Weight
- Width
- 38 cm
- Depth
- 41 cm
- Height
- 28.5 cm
- Weight
- 14.6 kg
Dimensions & Weight (Shipping)
- Width (Shipping)
- 54.9 cm
- Depth (Shipping)
- 49.4 cm
- Height (Shipping)
- 42 cm
- Weight (Shipping)
- 18.5 kg
