Description
The 700 series of adapters address the demanding needs of advanced agile data center by providing incredible features for both server and network virtualization, flexibility for LAN and SAN networks and reliable performance.
-
Excellent small packet performance
Achieves wire-rate throughput on smaller payload sizes. -
Bulk transfer performance
Delivers line-rate performance with low CPU usage for large application buffers. -
Virtualized performance
Alleviates hypervisor I/O bottlenecks by providing flow separation for VMs.
Specifications
Summary
- Product Description

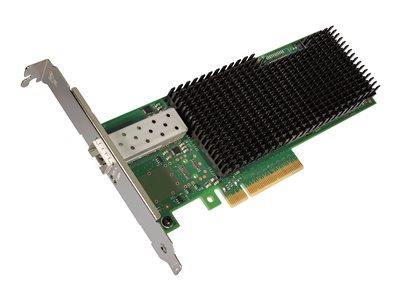

- Intel Ethernet Converged Network Adapter XXV710 - network adapter - PCIe 3.0 x8 - 25 Gigabit SFP28 x 1
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 3.0 x8
- PCI Specification Revision
- PCIe 3.0
- Ports
- 25 Gigabit SFP28 x 1
- Dimensions (WxDxH)
- 16.7 cm x 6.9 cm
- Cabling Type
- Ethernet 25GBase-SR, Ethernet 25GBase-LR
- Data Link Protocol
- 25GbE
- Data Transfer Rate
- 25 Gbps
- Network / Transport Protocol
- iSCSI, NFS
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg, IEEE 802.3by
- System Requirements
- Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 (32/64-bits), VMware ESXi 5.1, VMware ESXi 5.5, SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2012 R2 (32/64 bits), SuSE Linux Enterprise Server 12 SP1, Microsoft Windows Server 2016 (32/64 bits), Red Hat Enterprise Linux 7.3, FreeBSD 10.3, FreeBSD 11, Red Hat Enterprise Linux 6.9
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 3.0 x8
- PCI Specification Revision
- PCIe 3.0
Networking
- Ports
- 25 Gigabit SFP28 x 1
- Connectivity Technology
- Wired
- Cabling Type
- Ethernet 25GBase-SR, Ethernet 25GBase-LR
- Data Link Protocol
- 25 Gigabit Ethernet
- Data Transfer Rate
- 25 Gbps
- Network / Transport Protocol
- iSCSI, NFS
- Status Indicators
- Port transmission speed, link/activity
- Features
- MPLS support, VLAN support, IPv6 support, TCP/IP offloading, QoS, VMDq, IPv4 support, SR-IOV, ALB, checksum offload support, MSI-X, UDP/IP offloading, VT-c, DDIO Technology, iSCSI boot, VXLAN, NVGRE, Intel Flow Director, FPP, intelligent offloads
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg, IEEE 802.3by
Expansion / Connectivity
- Interfaces
- 1 x 25Gb Ethernet - SFP28
Miscellaneous
- Compliant Standards
- UL, VCCI, C-Tick, BSMI, FCC, RoHS, KCC, IEEE 1588
Software / System Requirements
- OS Required
- Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 (32/64-bits), VMware ESXi 5.1, VMware ESXi 5.5, SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2012 R2 (32/64 bits), SuSE Linux Enterprise Server 12 SP1, Microsoft Windows Server 2016 (32/64 bits), Red Hat Enterprise Linux 7.3, FreeBSD 10.3, FreeBSD 11, Red Hat Enterprise Linux 6.9
Dimensions & Weight
- Depth
- 16.7 cm
- Height
- 6.9 cm
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 90% (non-condensing)
