Description

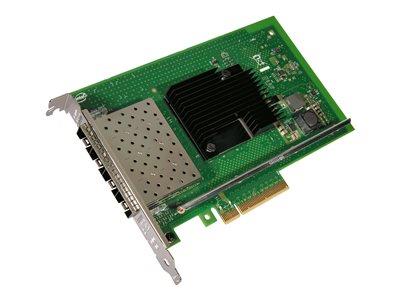

The X710-DA4 adapter delivers four ports of wire-speed 10GbE and is backwards compatible to 1GbE. Intel Ethernet 700 Series Network Adapters are the foundation for server connectivity, providing broad interoperability, critical performance optimizations, and increased agility for Telecommunications, Cloud, and Enterprise IT network solutions.
-
One adapter, one price
With the Intel's adapters, iSCSI and FCoE support are included in the price of an adapter. There is no need to purchase multiple adapters or additional licensing for an X710 adapter. It's simple and easy. Everything you need to unify your networking is included in a single SKU. -
Network virtualization
Network virtualization is the next big trend in creating an agile data center. The family of X710 adapters are ready to help you take that next step. -
Energy Efficient Ethernet (EEE)
Reduces power consumption during periods of low data activity. Energy is used to maintain the physical layer transmitters in a "ready state" to transmit data on the wire. During periods of low data traffic, EEE sends a low-power-idle signal to put the transmitters into a "low power state" saving power and cost. When data needs to be sent, EEE sends a normal idle signal to wake up the transmit system before data is due to be sent so there is no degradation of performance.
Specifications
Summary
- Product Description
- Intel Ethernet Converged Network Adapter X710-DA4 - network adapter - PCIe 3.0 x8 - 10 Gigabit SFP+ x 4
- Device Type
- Network adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express 3.0 x8
- Ports
- 10 Gigabit SFP+ x 4
- Dimensions (WxDxH)
- 16.7 cm x 11.1 cm
- Data Link Protocol
- GigE, 10 GigE
- Data Transfer Rate
- 10 Gbps
- Network / Transport Protocol
- TCP/IP, UDP/IP, iSCSI, SMB, NFS
- Compliant Standards
- IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg
- System Requirements
- Red Hat Linux 7.0, Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2008 R2 x64 Edition, Linux Kernel 2.6.32, FreeBSD 9, VMware ESXi 5.1, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, SuSE Linux Enterprise Server 12
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express 3.0 x8
Networking
- Ports
- 10 Gigabit SFP+ x 4
- Connectivity Technology
- Wired
- Data Link Protocol
- Gigabit Ethernet, 10 Gigabit Ethernet
- Data Transfer Rate
- 10 Gbps
- Network / Transport Protocol
- TCP/IP, UDP/IP, iSCSI, SMB, NFS
- Remote Management Protocol
- SNMP, RMON
- Status Indicators
- Port transmission speed, link/activity
- Features
- Flow control, VLAN support, packet filtering, IPv6 support, TCP/IP offloading, Quality of Service (QoS), Virtual Machine Device Queues (VMDq), IPv4 support, teaming support, PXE support, Large Send Offload (LSO), Giant Send Offload (GSO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Data Center Bridging (DCB), adaptive load balancing (ALB), Energy Efficient Ethernet, TCP Segmentation Offload (TSO), checksum offload support, UDP/IP offloading, Watch Dog Timer (WDT), iSCSI boot
- Compliant Standards
- IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg
Expansion / Connectivity
- Interfaces
- 4 x 1Gb Ethernet/10Gb Ethernet - SFP+
Miscellaneous
- Compliant Standards
- FCC Class B certified, UL, VCCI, C-Tick, BSMI, RoHS, KCC, Directive 2011/65/EU, MSA SFF-8431
Software / System Requirements
- OS Required
- Red Hat Linux 7.0, Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2008 R2 x64 Edition, Linux Kernel 2.6.32, FreeBSD 9, VMware ESXi 5.1, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, SuSE Linux Enterprise Server 12
Dimensions & Weight
- Depth
- 16.7 cm
- Height
- 11.1 cm
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
