Description
Delivering amazing combination of low latency, ultra endurance, high QoS, and high throughput, the Intel Optane DC P4800X series is the extremely responsive data center hard drive. Built with the excellent memory media, the DC P4800X is the product to combine the attributes of memory and storage. This innovative solution is optimized to break through storage bottlenecks by providing an improved data tier. It accelerates applications for fast caching and storage, increases scale per server, and reduces transaction costs for latency sensitive workloads. In addition, data centers can now also deploy bigger and more affordable data sets to gain insights from large memory pools.
-
Enhanced durability
With an SSD endurance of 20.5 PB and a mean time between failures (MTBF) of 2,000,000 hours, the Intel Optane SSD DC P4800X Series is built to withstand rigorous usage, ensuring reliability and longevity for critical data storage. -
Exceptional performance
Experience fast data access with 550,000 IOPS for 4KB random reads and 500,000 IOPS for 4KB random writes, coupled with an average latency of just 10 µs. This SSD delivers speed for demanding applications. -
Advanced security
Equipped with 256-bit AES hardware encryption, this SSD provides robust security for your data, safeguarding against unauthorized access and ensuring peace of mind. -
Efficient power consumption
Optimized for efficiency, the SSD operates on a mere 18 W during active use and 5 W in idle mode, reducing energy costs and contributing to a greener environment.
Specifications
Summary
- Product Description

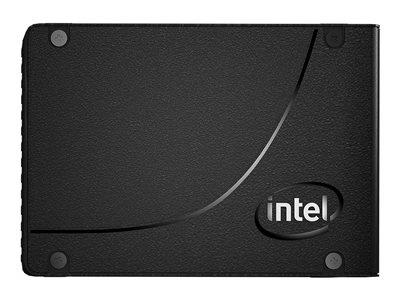

- Intel Optane SSD DC P4800X Series - SSD - 375 GB - U.2 PCIe 3.0 x4 (NVMe)
- Type
- Solid state drive - internal
- Capacity
- 375 GB
- SSD Technology
- 3D Xpoint (Optane)
- Hardware Encryption
- Yes
- Encryption Algorithm
- 256-bit AES
- Form Factor
- 2.5"
- Interface
- U.2 PCIe 3.0 x4 (NVMe)
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Solid state drive - internal
- Capacity
- 375 GB
- Hardware Encryption
- Yes
- Encryption Algorithm
- 256-bit AES
- SSD Technology
- 3D Xpoint (Optane)
- Form Factor
- 2.5"
- Interface
- U.2 PCIe 3.0 x4 (NVMe)
Performance
- SSD Endurance
- 20.5 PB
- Internal Data Rate
- 2400 MBps (read) / 2000 MBps (write)
- 4KB Random Read
- 550000 IOPS
- 4KB Random Write
- 500000 IOPS
- Average Latency
- 10 µs
Reliability
- MTBF
- 2,000,000 hours
- Non-Recoverable Errors
- 1 per 10^17
Expansion & Connectivity
- Interfaces
- 1 x PCI Express 3.0 x4 (NVMe) - U.2 (SFF-8639)
- Compatible Bay
- 2.5"
Power
- Power Consumption
- 18 Watt (active) , 5 Watt (idle)
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 35 °C
- Shock Tolerance (operating)
- 1000 g @ 0.5 ms half-sine
- Shock Tolerance (non-operating)
- 1000 g @ 0.5 ms half-sine
- Vibration Tolerance (operating)
- 2.17 g
- Vibration Tolerance (non-operating)
- 3.13 g
