Description
Driving a wide range of workloads with a flexible, shorter and rackable chassis design that can fit in different physical environments, the secure HPE ProLiant ML350 Gen10 server delivers the ideal set of performance and expandability for changing business needs making it the choice for growing SMBs, remote/branch offices of large enterprises and data centers.
Specifications
Summary
- Product Description

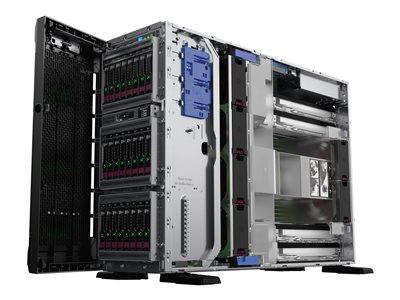

- HPE ProLiant ML350 Gen10 Sub-Entry - tower - Xeon Bronze 3204 1.9 GHz - 8 GB - no HDD
- Type
- Server - tower
- Height (Rack Units)
- 4U
- Localisation
- Region: Europe
- Server Scalability
- 2-way
- Processor
- 1 x Intel Xeon Bronze 3204 / 1.9 GHz (6-core)
- Processor Socket
- FCLGA3647 Socket
- Cache Memory
- 8.25 MB L3 Cache
- Cache Per Processor
- 8.25 MB
- RAM
- 8 GB (installed) / 1.5 TB (max) - DDR4 SDRAM - Advanced ECC
- Storage Controller
- RAID (SATA 6Gb/s) (HPE Smart Array S100i SR Software RAID)
- Server Storage Bays
- Non-hot-swap 3.5"
- Hard Drive
- No HDD
- Optical Storage
- No optical drive
- Video Memory
- 16 MB
- Networking
- GigE
- Power
- AC 120/230 V (50/60 Hz)
- Software Included
- HPE OneView Standard (free download)
- Dimensions (WxDxH)
- 17.4 cm x 64.8 cm x 46.25 cm
- Weight
- 21 kg
- Environmental Standards
- ENERGY STAR Qualified
- Manufacturer Warranty
- Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Detailed Specification
General
- Type
- Server
- Product Form Factor
- Tower - 4U
- Server Scalability
- 2-way
- Internal Bays Qty
- 4
- Localisation
- Region: Europe
Processor / Chipset
- CPU
- Intel Xeon Bronze 3204
- Clock Speed
- 1.9 GHz
- Number of Cores
- 6-core
- CPU Qty
- 1
- Max CPU Qty
- 2
- CPU Upgradability
- Upgradable
- CPU Socket
- FCLGA3647 Socket
- Chipset Type
- Intel C622
Cache Memory
- Installed Size
- L3 Cache - 8.25 MB
- Cache Per Processor
- 8.25 MB
RAM
- Installed Size
- 8 GB / 1.5 TB (max)
- Technology
- DDR4 SDRAM - Advanced ECC
- Effective Memory Speed
- 2133 MHz
- Rated Memory Speed
- 2933 MHz
- Form Factor
- DIMM 288-pin
- Slots
- 24 (Total) / 23 (empty)
- Features
- Registered, slots 13 - 24 are available in two-processor configuration only
- Configuration Features
- 1 x 8 GB
- RAM Supported
- 3 TB Load-Reduced - ECC , 1.5 TB registered - ECC
Hard Drive
- Type
- No HDD
Storage Controller
- Type
- 1 x RAID
- Controller Interface Type
- SATA 6Gb/s
- Storage Controller Name
- HPE Smart Array S100i SR Software RAID
- Channel Qty
- 14
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 10
Optical Storage
- Type
- No optical drive
Monitor
- Monitor Type
- None.
Graphics Controller
- Video Memory
- 16 MB
- Video Interfaces
- VGA, DisplayPort
Networking
- Ethernet Ports
- 4 x Gigabit Ethernet
- Ethernet Controller
- HPE 369i
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol
- SNMP 3, IPMI 2.0, SMASH CLP
- Remote Management Controller
- Integrated Lights-Out Standard
- Features
- Wake on LAN (WoL), ACPI support, PXE support
Expansion / Connectivity
- Bays
- 4 (total) / 4 (free) x internal 3.5" LFF
- Slots
- 1 (total) / 1 (free) x microSD Card (internal) , 2 (total) / 2 (free) x PCIe 3.0 x16 - full-length, full-height , 2 (total) / 2 (free) x PCIe 3.0 x8 - full-length, full-height (x4 mode)
- Interfaces
- 1 x VGA , 1 x serial , 1 x DisplayPort , 4 x LAN (Gigabit Ethernet) , 1 x HPE iLO , 1 x HPE iLO (1 in front) (service port) , 4 x USB 3.0 (2 front, 2 rear)
Miscellaneous
- Included Accessories
- 2 x fans
- Theft/Intrusion Protection
- Security lock slot (cable lock sold separately)
- Security Slot Type
- Kensington security slot
- Compliant Standards
- TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1
Power
- Device Type
- Power supply
- Installed Qty
- 1
- Max Supported Qty
- 2
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Provided
- 500 Watt
Operating System / Software
- OS Certified
- CentOS, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, VMware ESXi 6.5, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, SuSE Linux Enterprise Server 12 SP2, ClearOS, VMware ESXi 6.0 update 3
- Software
- HPE OneView Standard (free download)
Sustainability Information
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 2.1
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Dimensions & Weight
- Width
- 17.4 cm
- Depth
- 64.8 cm
- Height
- 46.25 cm
- Weight
- 21 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% (non-condensing)
