Description

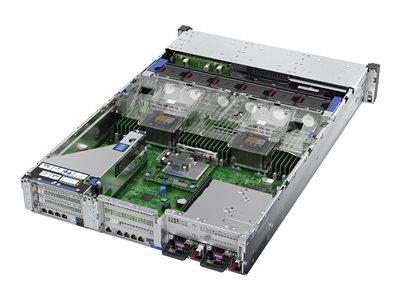

The HPE ProLiant DL380 Gen10 server delivers great security, performance and expandability. It's securely designed to reduce costs and complexity.
Specifications
Summary
- Product Description
- HPE ProLiant DL380 Gen10 SMB - rack-mountable - Xeon Silver 4214 2.2 GHz - 16 GB - no HDD
- Type
- Server - rack-mountable
- Height (Rack Units)
- 2U
- Localisation
- Region: Worldwide
- Server Scalability
- 2-way
- Processor
- 1 x Intel Xeon Silver 4214 / 2.2 GHz (, up to 3.2 GHz, (12-core)
- Processor Socket
- FCLGA3647 Socket
- Processor Main Features
- Hyper-Threading Technology, Intel Turbo Boost Technology 2
- Cache Memory
- 16.5 MB L3 Cache
- Cache Per Processor
- 16.5 MB
- RAM
- 16 GB (installed) / 1.5 TB (max) - DDR4 SDRAM - Advanced ECC
- Storage Controller
- RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (HPE Smart Array P816i-a)
- Server Storage Bays
- Hot-swap 3.5"
- Hard Drive
- No HDD
- Optical Storage
- No optical drive
- Video Memory
- 16 MB
- Networking
- GigE
- Power
- AC 120/230 V (50/60 Hz)
- Power Redundancy
- Yes
- Software Included
- HPE Server UEFI
- Dimensions (WxDxH)
- 44.54 cm x 73.02 cm x 8.73 cm
- Weight
- 17.1 kg
- Environmental Standards
- ENERGY STAR Qualified
- Manufacturer Warranty
- Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Detailed Specification
General
- Type
- Server
- Product Form Factor
- Rack-mountable - 2U
- Server Scalability
- 2-way
- Hot-Swap Bays Qty
- 12
- Localisation
- Region: Worldwide
Processor / Chipset
- CPU
- Intel Xeon Silver 4214
- Clock Speed
- 2.2 GHz
- Max Turbo Speed
- 3.2 GHz
- Number of Cores
- 12-core
- CPU Qty
- 1
- Max CPU Qty
- 2
- CPU Upgradability
- Upgradable
- Processor Main Features
- Hyper-Threading Technology, Intel Turbo Boost Technology 2
- CPU Socket
- FCLGA3647 Socket
- Chipset Type
- Intel C621
Cache Memory
- Installed Size
- L3 Cache - 16.5 MB
- Cache Per Processor
- 16.5 MB
RAM
- Installed Size
- 16 GB / 1.5 TB (max)
- Technology
- DDR4 SDRAM - Advanced ECC
- Effective Memory Speed
- 2400 MHz
- Rated Memory Speed
- 2933 MHz
- Form Factor
- DIMM 288-pin
- Slots
- 24 (Total) / 23 (empty)
- Features
- Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory, 6-channel memory architecture
- Configuration Features
- 1 x 16 GB
- RAM Supported
- 3 TB Load-Reduced - ECC , 1.5 TB registered - ECC , 192 GB Non-Volatile - ECC
Hard Drive
- Type
- No HDD
Storage Controller
- Type
- 1 x RAID - PCIe 3.0 x8
- Controller Interface Type
- SATA 6Gb/s / SAS 12Gb/s
- Storage Controller Name
- HPE Smart Array P816i-a
- Channel Qty
- 16
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
- Buffer Size
- 2 GB
Optical Storage
- Type
- No optical drive
Monitor
- Monitor Type
- None.
Graphics Controller
- Video Memory
- 16 MB
- Video Interfaces
- VGA
Networking
- Ethernet Ports
- 4 x Gigabit Ethernet
- Ethernet Controller
- HPE 331i
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol
- SNMP 3, IPMI 2.0, SMASH CLP
- Remote Management Controller
- Integrated Lights-Out 5
- Features
- Wake on LAN (WoL), PXE support
Expansion / Connectivity
- Bays
- 12 (total) / 12 (free) x hot-swap 3.5" LFF
- Slots
- 1 (total) / 1 (free) x FlexibleLOM , 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height , 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height , 1 (total) / 1 (free) x microSD Card (internal)
- Interfaces
- 4 x LAN (Gigabit Ethernet) - RJ-45 , 1 x HPE iLO - RJ-45 (1 rear) , 1 x VGA (1 rear) , 8 x SATA-600 / SAS 3.0 , 1 x HPE iLO - Type A (1 in front) , 5 x USB 3.0 (1 front, 2 rear, 2 internal)
Miscellaneous
- Included Accessories
- Cable management arm, 6 performance fans, LFF Easy Install rails
- Compliant Standards
- AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Power
- Device Type
- Power supply - hot-plug
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Installed Qty
- 1
- Max Supported Qty
- 2
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Provided
- 800 Watt
Operating System / Software
- OS Certified
- SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux
- Software
- HPE Server UEFI
Sustainability Information
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 2.1
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Dimensions & Weight
- Width
- 44.54 cm
- Depth
- 73.02 cm
- Height
- 8.73 cm
- Weight
- 17.1 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% (non-condensing)
