Description

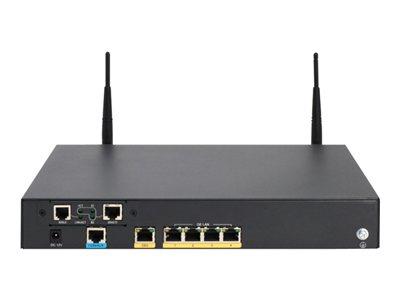

The HP MSR93x Router Series delivers a high-performance small-branch router providing integrated routing, switching, security, SIP, 802.11n WLAN connectivity, and 4G LTE/3G in a single unit. With its Converged Infrastructure, it enables faster time to service and enhanced performance while simplifying your network through a single management screen and zero-touch deployment. The MSR93x increases flexibility and agility, delivering extensive connectivity capabilities in a compact, fixed form factor. The MSR93x is based on open standards for seamless integration within small-branch deployment.
-
Enhanced Time to Service and Branch Performance
The HPE MSR93x Router Series offers high performance routing with 300 kpps forwarding.Comprehensive feature set enables branch services that fit your needs, including IPv4 and IPv6 routing, MPLS, QoS, NAT, and VPN.Integrated security eases the transition to the cloud. -
Reduces Complexity and Simplifies Your Network
The HPE MSR93x Router Series provides a Converged Infrastructure (CI) with integrated routing/switching/security/SIP.Reduce total cost of ownership (TCO) through open standards, power and space savings, and energy-efficient hardware.A single screen with HPE Intelligent Management Center (IMC) provides an easy-to-use interface for your administrator.Zero-touch deployment makes router and VPN set up a breeze.Common OS across routers delivers increased flexibility across all environments. -
Increased Flexibility and Agility Across Your Network
The HPE MSR93x Router Series delivers a wide range of connectivity options, including Gigabit Ethernet, Serial, ADSL2+, G.SHDSL, and wireless.Extensive range of models and accessories enables the right design for your particular requirements.Based on open standards for ease of network integration. -
Strengthen Branch Resiliency with Enterprise-class Features
The HPE MSR93x Router Series supports primary and failover 4GE LTE and 3G WAN connectivity enabling service survivability.Enhanced 802.11n WLAN option provides high throughput.
Specifications
Summary
- Product Description
- HPE MSR935 Router - wireless router - DSL modem - Wi-Fi - desktop
- Device Type
- Wireless router - DSL modem - 4-port switch (integrated)
- Enclosure Type
- Desktop
- Digital Signaling Protocol
- ADSL2+
- WAN Ports Qty
- 1
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Data Transfer Rate
- 1 Gbps
- Performance
- Throughput (64-byte packet size): up to 300 Kpps , Encryption throughput: up to 160 Mbps
- Capacity
- IPv4 routing table entries: 10000 , IPv6 routing table entries: 5000 , VPN tunnels: up to 100
- Network / Transport Protocol
- TCP/IP, UDP/IP, L2TP, RSVP, APPN, NTP, ICMP/IP, IPSec, PPPoE, ARP, BOOTP, DHCP
- Routing Protocol
- OSPF, EGP, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLD, BGP-4+, CIDR
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, CLI
- Features
- Firewall protection, DHCP support, NAT support, VPN support, BOOTP support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, WFQ, WRED, sFlow, TFTP support, ACL support, QoS, CAR, MLD snooping, port isolation
- Compliant Standards
- IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.1w, IEEE 802.11g, IEEE 802.1x, IEEE 802.1s, IEEE 802.11n
- Dimensions (WxDxH)
- 30 cm x 20 cm x 4.42 cm
- Weight
- 1.8 kg
Detailed Specification
General
- Device Type
- Wireless router - 4-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Data Transfer Rate
- 1 Gbps
- Performance
- Throughput (64-byte packet size): up to 300 Kpps , Encryption throughput: up to 160 Mbps
- Capacity
- IPv4 routing table entries: 10000 , IPv6 routing table entries: 5000 , VPN tunnels: up to 100
- Network / Transport Protocol
- TCP/IP, UDP/IP, L2TP, RSVP, APPN, NTP, ICMP/IP, IPSec, PPPoE, ARP, BOOTP, DHCP
- Routing Protocol
- OSPF, EGP, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLD, BGP-4+, CIDR
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, CLI
- Encryption Algorithm
- MD5, AES, IKE, TLS
- Authentication Method
- RADIUS, PAP, CHAP, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
- Features
- Firewall protection, DHCP support, NAT support, VPN support, BOOTP support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, WFQ, WRED, sFlow, TFTP support, ACL support, QoS, CAR, MLD snooping, port isolation
- Compliant Standards
- IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.1w, IEEE 802.11g, IEEE 802.1x, IEEE 802.1s, IEEE 802.11n, EN55024, EN55022 Class B, ICES-003 Class B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FDA, FCC CFR47 Part 15 B, EN 60825-1, AS/NZS 60950, ANSI C63.4, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005, EN 300 386, CAN/CSA-C22.2 No. 60950-1
- Processor
- 1 x 533 MHz
- RAM
- 256 MB DDR SDRAM
- Flash Memory
- 128 MB
Communications
- Type
- DSL modem
- Digital Signaling Protocol
- ADSL2+
- Protocols & Specifications
- ITU G.992.3 Annex A, ITU G.992.3 Annex M
Expansion / Connectivity
- Interfaces
- LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , 1 x ADSL2+
Power
- Power Device
- External power adapter
- Power Consumption Operational
- 24 Watt
Miscellaneous
- Included Accessories
- SIM card
Dimensions & Weight
- Width
- 30 cm
- Depth
- 20 cm
- Height
- 4.42 cm
- Weight
- 1.8 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 90% (non-condensing)
