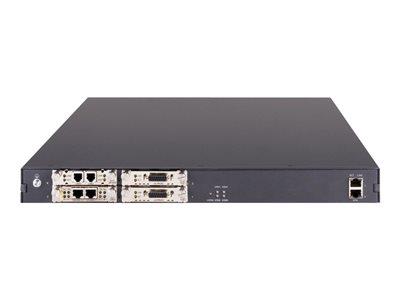

HPE MSR20-40 Router

Review this product
Quicklinx: 9JXVWS00 Mfr#: JF228A
Type: Router
Standards: Ethernet, Fast Ethernet
Ordered upon request
£1,009.78 ex VAT
£1,211.73 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

The HP MSR20 router series is a component of the HP FlexBranch solution, which is part of the HP FlexNetwork architecture. It features a modular design that delivers unmatched flexibility for small branch offices and small to medium-sized businesses while reducing complexity, simplifying management, and increasing control. MSR20 series routers provide a full-featured, resilient routing platform, including IPv6 and MPLS, up to 180 Kpps forwarding capacity, and 100 Mbps encryption. These products offer lasting investment protection, and help reduce capital and operating expenses.

  • Quality of Service (QoS)

    Traffic policing with Committed Access Rate (CAR) and line rate.Congestion management with FIFO, PQ, CQ, WFQ, CBQ, and RTPQ.Weighted random early detection (WRED)/random early detection (RED) delivers congestion avoidance capabilities through the use of queue management algorithms.Traffic shaping, FR QoS, MPLS QoS, and MP QoS/LFI supported.
  • Device management

    Industry-standard CLI with a hierarchical structure reduces training time and expenses, and increases productivity in multivendor installations.Management security restricts access to critical configuration commands; offers multiple privilege levels with password protection; ACLs provide telnet and SNMP access; local and remote syslog capabilities allow logging of all access.Complete support of SNMPv1, v2, and v3; provide full support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption.Remote monitoring (RMON) uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group.FTP, TFTP, and SFTP support offers different mechanisms for configuration updates; FTP allows bidirectional transfers over a TCP/IP network; trivial FTP (TFTP) is a simpler method using User Datagram Protocol (UDP); Secure File Transfer Protocol (SFTP) runs over an SSH tunnel.
  • Device connectivity

    High-density port connectivity with up to 4 interface module slots and up to 18 Fast Ethernet ports.Multiple WAN interfaces provide a traditional link with E1, T1, ADSL, ADSL2, ADSL2+, G.SHDSL, ATM, Serial, and ISDN/AM backup; provide high-density Ethernet access with WAN Fast Ethernet/Gigabit Ethernet and LAN 4- and 9-port Fast Ethernet; provide mobility access with IEEE 802.11b/g/n Wi-Fi and 3G.Packet storm protection protects against broadcast, multicast, or unicast storms with user-defined thresholds.Internal loopback testing for maintenance purposes and an increase in availability is supported; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or per-VLAN basis for added flexibility.Flexible port selection with a combination of fiber and copper interface modules, 100/1000BASE-X auto-speed selection, and 10/100/1000BASE-T auto-speed detection plus auto duplex and MDI/MDI-X.
  • Performance

    Embedded hardware encryption accelerator helps improve encryption performance.Flexible chassis selection, with a choice of three routers, meeting different requirements on enterprise branches.Excellent forwarding performance of up to 180 Kpps; meets current and future bandwidth-intensive application demands of enterprise businesses.

Specifications

Summary

Product Description
HPE MSR20-40 - router - rack-mountable
Device Type
Router
Enclosure Type
Rack-mountable - modular - 1U
WAN Ports Qty
2
Data Link Protocol
Ethernet, Fast Ethernet
Network / Transport Protocol
TCP/IP, L2TP, RSVP, NTP, PPPoE
Routing Protocol
OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, Telnet, SNMP 3, HTTP, FTP, SSH
Features
Firewall protection, DHCP support, NAT support, VPN support, NAPT support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
36 cm x 28.7 cm x 4.4 cm
Weight
5.4 kg


Detail

General

Device Type
Router
Enclosure Type
Rack-mountable - modular - 1U
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet
Network / Transport Protocol
TCP/IP, L2TP, RSVP, NTP, PPPoE
Routing Protocol
OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, Telnet, SNMP 3, HTTP, FTP, SSH
Encryption Algorithm
MD5, SSL, TLS
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features
Firewall protection, DHCP support, NAT support, VPN support, NAPT support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, ICES-003 Class B, FCC Part 68, RoHS, UL 60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03, WEEE, CSA C22.2 No. 60950-1, EN 60825-1
Processor
1 x 400 MHz
RAM
256 MB DDR SDRAM
Flash Memory
256 MB (max)

Expansion / Connectivity

Interfaces
WAN: 2 x 10Base-T/100Base-TX - RJ-45 , Management: 1 x , USB: 1 x
Expansion Slots
1 (total) / 1 (free) x CompactFlash , 4 (total) / 4 (free) x Smart Interface Card (SIC)
Installed Modules Qty (Max)
0 (installed) / 4 (max)

Power

Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)

Dimensions & Weight

Width
36 cm
Depth
28.7 cm
Height
4.4 cm
Weight
5.4 kg

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 90%
