Description
Changing storage needs for server customers now requires greater levels of performance and functionality at a lower cost of ownership. The next generation HPE MSA 2040 Storage arrays raises the bar & uniquely addresses HPE ProLiant customers' shared storage and data protection needs, reduces TCO while dramatically increasing performance using technologies such as Solid State Drives, Snap and Volume copy, Replication and SEDs. The MSA 2040 Storage arrays are positioned to provide an excellent value for customers needing increasing performance to support initiatives such as consolidation and virtualization. The MSA 2040 delivers this performance by leveraging new controller architecture with a new processor, four ports with 4GB cache per controller & using drive technologies such as SSDs. The MSA 2040 Storage ships standard with 64 Snapshots and Volume Copy enabled for increased data protection and allow replication with optional Remote Snap software between arrays (FC or iSCSI only).
Specifications
Summary
- Product Description

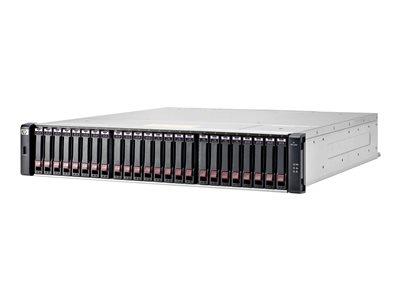

- HPE Modular Smart Array 2040 SAN Dual Controller SFF Bundle - hard drive array
- Device Type
- Hard drive array
- Enclosure Type
- Rack-mountable - 2U
- Total Array Capacity
- 3.6 TB
- Max Supported Capacity
- 43 TB
- Interface
- 8Gb Fibre Channel, iSCSI (1 GbE), iSCSI (10 GbE), 16Gb Fibre Channel
- Maximum LUNs
- 512
- Installed Devices / Modules Qty
- 6 (installed) / 24 (max)
- Supported Drives
- SAS-3
- Storage Controller
- RAID (SAS 6Gb/s) - RAID RAID 0, 1, 3, 5, 6, 10, 50
- Storage Controller Quantity
- 2
- Hard Drive
- 6 x 600 GB HDD
- OS Required
- HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012
- Power
- AC 120/230 V - 50/60 Hz
- Power Redundancy
- Yes
- Manufacturer Selling Program
- HP Top Value Lite
- Dimensions (WxDxH)
- 44.7 cm x 49.5 cm x 8.9 cm
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Hard drive array
- Enclosure Type
- Rack-mountable - 2U
Chassis
- Installed Devices / Modules Qty
- 6
- Supported Devices / Modules Qty
- 24
- Supported Drives
- SAS-3
Storage
- Total Array Capacity
- 3.6 TB
- Max Supported Capacity
- 43 TB
- HDD Array External Interface
- 8Gb Fibre Channel, iSCSI (1 GbE), iSCSI (10 GbE), 16Gb Fibre Channel
- Maximum LUNs
- 512
Processor
- CPU
- No CPU
Storage Controller
- Type
- RAID
- Installed Qty
- 2
- Interface Type
- SAS 6Gb/s
- Data Transfer Rate
- 600 MBps
- Cache / Buffer Size (Max)
- 8 GB
- RAID Level
- RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50
Storage Controller (2nd)
- Installed Qty
- 2
Hard Drive
- Type
- HDD
- Capacity
- 6 x 600 GB
Expansion / Connectivity
- Expansion Bays
- 24 (total) / 18 (free) - 2.5" SFF
- Interfaces
- 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) , 2 x management , 2 x management - RJ-45 , 8 x 8Gb Fibre Channel / 16Gb Fibre Channel / Ethernet 10Gb / Ethernet 1000 - SFP+
System Requirements
- OS Required
- HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012
Miscellaneous
- Compliant Standards
- CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, EN55022 Class A, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, FCC Part 15 A, EN55024 Class A, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A
- Manufacturer Selling Program
- HP Top Value Lite
Power
- Power Device
- 2 x internal power supply - hot-plug
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Voltage Required
- AC 120/230 V - 50/60 Hz
Dimensions & Weight
- Width
- 44.7 cm
- Depth
- 49.5 cm
- Height
- 8.9 cm
Manufacturer Warranty
- Service & Support
- Limited warranty - parts - 3 years
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Sound Emission
- 55 dBA
